12f 24f MPO SC LC Fiber Patch Panel Optic Distribution Box LGX Cassette
12f 24f MPO SC LC Fiber Patch Panel Optic Distribution Box LGX Cassette
12f 24f MPO SC LC Fiber Patch Panel Optic Distribution Box LGX Cassette
12f 24f MPO SC LC Fiber Patch Panel Optic Distribution Box LGX Cassette
12f 24f MPO SC LC Fiber Patch Panel Optic Distribution Box LGX Cassette
12f 24f MPO SC LC Fiber Patch Panel Optic Distribution Box LGX Cassette
Specifications
Price :
USD 14.30-14.80 / pieces
Supply Ability :
800,000
Place of Origin :
CHINA
Brand Name :
SKYLYNN or OEM, ODM
Certification :
ISO, ROHS, CE
MOQ :
10PCS
Packaging Details :
PP BAG, INNER BOX, OUTER BOX
Delivery Time :
2-7 DAYS
Payment Terms :
T/T, L/C, WEST UNION
Model NO. :
MPO
Delivery :
FOB
Minimum order quantity :
10 pieces
Country of Origin :
Shenzhen
Description

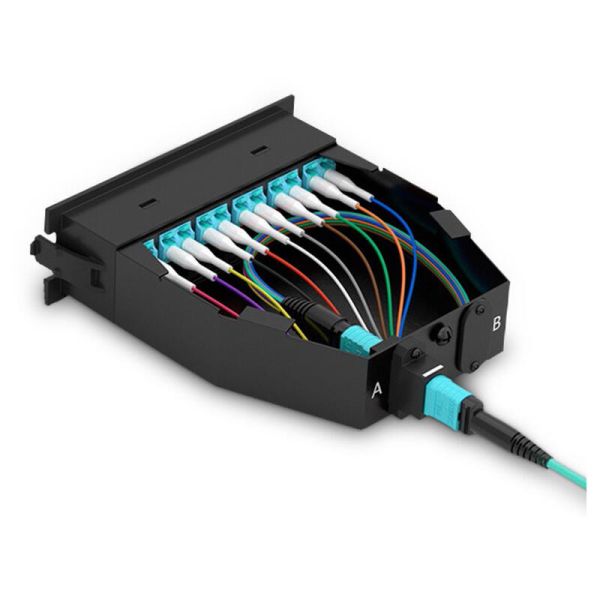

12f 24f MPO MTP Module LGX Cassette

Description

MPO/MTP module Cassettes is mainly used to divide the 12 or 24 fibers MPO/MTP connector of the pre-assembled terminal end to the simplex or duplex standard connector. By using the simplex or duplex patchcord, the output of the module can be directly connected with the equipments, frame or the client's end.

Features

  • Adopts high quality engineering plastics and Aluminum alloy material
  • MPO faceplate can be upgraded easily.
  • All the front port are with mark no.easy to identify.
  • Quick and easy installed, flexible in configuration and easy to management


Application

  • Machine rooms of data center and internet
  • Data communication network
  • Optical system access network
  • Storage area networking fiber channel
  • High density architectures



Performance MPO/MTP Connectors

Fiber Type

Single Mode

Multi-mode

Standard Insertion Loss

Typical(dB)

≤0.7

≤0.5

Low Insertion Loss

Typical(dB)

≤0.35

≤0.35

Return Loss (dB)

≥60(APC)

≥30(PC)

≥50(PC)

Tensile Strength (kgf)

10

Durability(dB)

≤0.2 500 matings

Working Temperature(ºC)

-40 ~+85

Testing Wavelength (nm)

1310/1550

850

General Connector Termination

Fiber Type

Single Mode

Multi-mode

Parameter

UPC

APC

UPC

Insertion Loss Maximum (dB)

≤0.3

Return Loss (dB)

≥50

≥60

≥35

Durability (dB)

≤0.2 500 matings

Working Temperature(ºC)

-40 ~+85

Testing Wavelength (nm)

1310/1550

850
