Specifications
Place of Origin :
CHINA
Brand Name :
SKYLYNN or OEM, ODM
Certification :
ISO, ROHS, CE
MOQ :
10PCS
Packaging Details :
PP BAG, INNER BOX, OUTER BOX
Delivery Time :
2-7 DAYS
Payment Terms :
T/T, L/C, WEST UNION
Supply Ability :
800,000
Model NO. :
LGX 4U
Delivery :
EXW/FOB/CIF
Country of Origin :
GUA,CN
Description

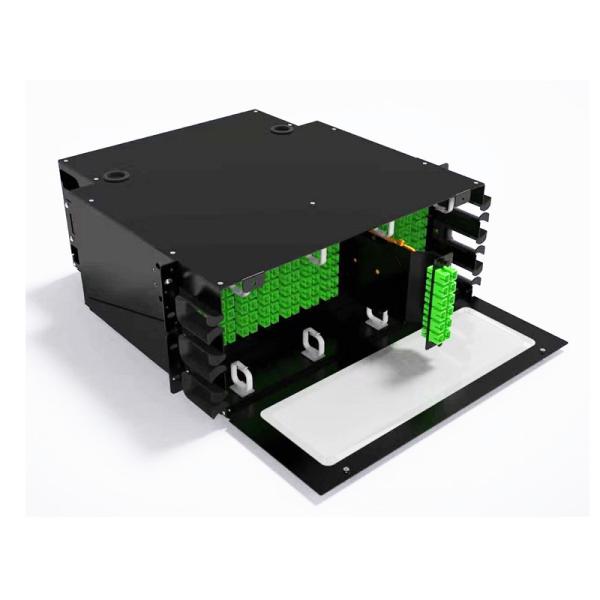

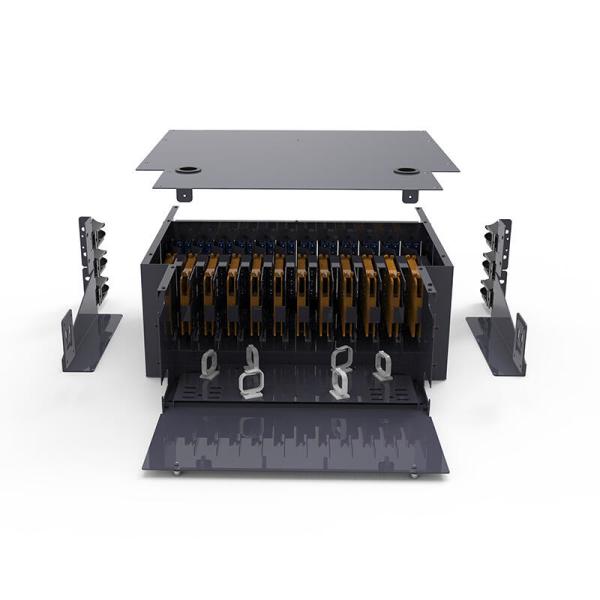

4U LGX Type Fiber Optic Patch Panel

Description

Fiber optical patch panel is an integrated unit for fiber management including fixed patch-panel and sliding panel.The function is to fix and manage the fiber optic cables inside the box as well as provide protection. Typical it is 12,24,36,48,72,144 ports on the panel.We have panels for the most commonly used fiber optic connections like SC, FC, E2000,etc. What's more important custom design is also available for more fiber ports requirement or other types fiber optic connections. For our fiber optic patch panels, we will give fiber tray and fusion protection sleeves and some spare parts for patch panels.

Features

  • Product size: 439*452.5*174.4mm
  • Apply to 19inch (21inch) rack installation
  • Body Material: SPCC, Surface: powder coating black( Ral9005) or beige (RAL1001)
  • Type of Module box are optional
  • Standard configuration: fiber protectioni sleeve –according to the quantity of fiber; cable tie: 12cps ; magic stick strip: 4pcs; cable saddle: 10dpcs
  • Adapter, adapter panel and pigtail are optional
  • 1.5mm steel sheet for strong housing
  • Slim 1 Unit Mounting Height
  • Ball bearing slid rails with positive stop
  • Sliding design is easy to work for patching the connectors
  • Hinged front panel is easy to be turned over & be fixed by snap-in locker
  • Front-mounted cable saddles for jumper management
  • Can manage both splices and terminations
  • Preassembled shelves in multiple configurations
  • Can includes adapter panels for up to 72 144SC terminations
  • High density splice tray contains 24 fiber maximum in one tray
  • Clear plastic cover to protect the fibers.
  • 4 fiber saddles built-in for 900um tight buffered fiber winding & storing.
  • Capable of storing up to 3 meters of 900 μm tight buffered fiber per adapter
  • Snap-in locker design, easy to change adapter panels for various connector patching
  • Removable rubber grommet allows for pre-terminated fiber trunk install, protects cable, and minimizes dust build-up

Application

  • Local Area Network

  • CATV Network

  • FTTx System

  • Wide Area Network

  • Test Instruments

4U LGX Single Mode Fiber Patch Panel Splitter Distribution Box SPCC4U LGX Single Mode Fiber Patch Panel Splitter Distribution Box SPCC4U LGX Single Mode Fiber Patch Panel Splitter Distribution Box SPCC
