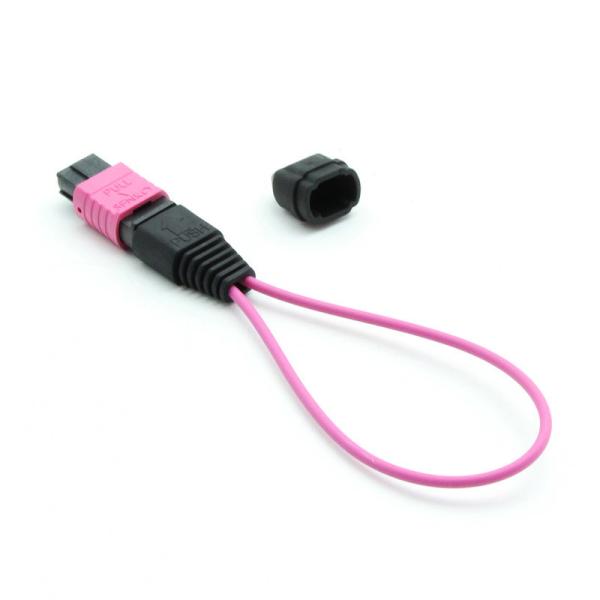

OM3 Multimode Fiber Patch Cord 50 125um MPO Loopback
OM3 Multimode Fiber Patch Cord 50 125um MPO Loopback
OM3 Multimode Fiber Patch Cord 50 125um MPO Loopback
OM3 Multimode Fiber Patch Cord 50 125um MPO Loopback
OM3 Multimode Fiber Patch Cord 50 125um MPO Loopback
OM3 Multimode Fiber Patch Cord 50 125um MPO Loopback
Specifications
Brand Name :
SKYLYNN or OEM, ODM
Certification :
ISO, ROHS, CE
Place of Origin :
CHINA
MOQ :
10PCS
Payment Terms :
T/T, L/C, WEST UNION
Supply Ability :
800,000
Delivery Time :
2-7 DAYS
Packaging Details :
PP BAG, INNER BOX, OUTER BOX
Model NO. :
MPO/MTP Trunk Patch Cable
Delivery :
EXW/FOB/CIF Etc.
Country of Origin :
GUA, CN
Description

8 12 24 Core OM3 50/125um Multimode fiber opitc Patch Cord MPO Loopback

Description

MTP/MPO loopback is fit for testing MTP/ MPO network and system. It helps to test the transmitter capability and receiver sensitivity of network equipment. Suitable for high speed applications and lab evaluation.
MPO/MTP Loopback are used widely within testing environment especially within parallel optics 40 and 100G networks. Devices allow verification and testing of transceivers featuring MPO/MTP interface – 40G BASED-SR4 QSFP+ or 100G BASE-SR10 CXP/CFP devices. Loopbacks are built to link Transceivers (TX) and Receivers (RX) positions of MPO/MTP transceivers interfaces. MPO/MTP loopbacks can facilitate and speed up IL testing of optical networks segments by connecting them to MPO/MTP trunks/patch leads

Features

  • Available in a wide variety of wiring configurations and fiber types
  • All loopbacks meet TIA/EIA and IEC intermateability standards
  • 8 , 12, and 24 Fiber available
  • Easy Installation/Removal,available with or without Pull tabs
  • Compact and portable with lanyard feature

Application

  • 40GbE QSFP+ Optical Testing
  • Research and Development
  • Manufacturing Test
  • Troubleshooting
  • Quality Control
  • Training

Mechanical Properties

Item
Criteria
Conformance
IL After 50 Matings
MPO/MTP
≤0.3dB
GR-1435
IL After 500 Matings
LC/SC/FC/ST
≤0.2dB
IEC 61300-2-2
Min Bend Radius (Dynamic)
20*OD (Cable Diameter)
Min Bend Radius (Static )
15*OD (Cable Diameter)
