4F 12F 72F Fiber Optic MTP MPO Cables OFNP 3MM Low Insertion Loss
4F 12F 72F Fiber Optic MTP MPO Cables OFNP 3MM Low Insertion Loss
4F 12F 72F Fiber Optic MTP MPO Cables OFNP 3MM Low Insertion Loss
4F 12F 72F Fiber Optic MTP MPO Cables OFNP 3MM Low Insertion Loss
4F 12F 72F Fiber Optic MTP MPO Cables OFNP 3MM Low Insertion Loss
4F 12F 72F Fiber Optic MTP MPO Cables OFNP 3MM Low Insertion Loss
Specifications
Place of Origin :
CHINA
Brand Name :
SKYLYNN or OEM, ODM
Certification :
ISO, ROHS, CE
MOQ :
10PCS
Packaging Details :
PP BAG, INNER BOX, OUTER BOX
Delivery Time :
2-7 DAYS
Payment Terms :
T/T, L/C, WEST UNION
Supply Ability :
800,000
Model NO. :
MPO/MTP Trunk Patch Cable
Delivery :
EXW/FOB/CIF Etc.
Country of Origin :
GUA, CN
Description

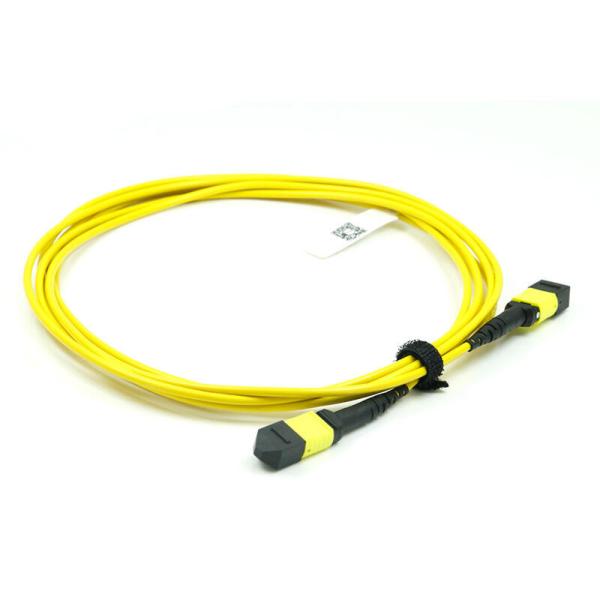

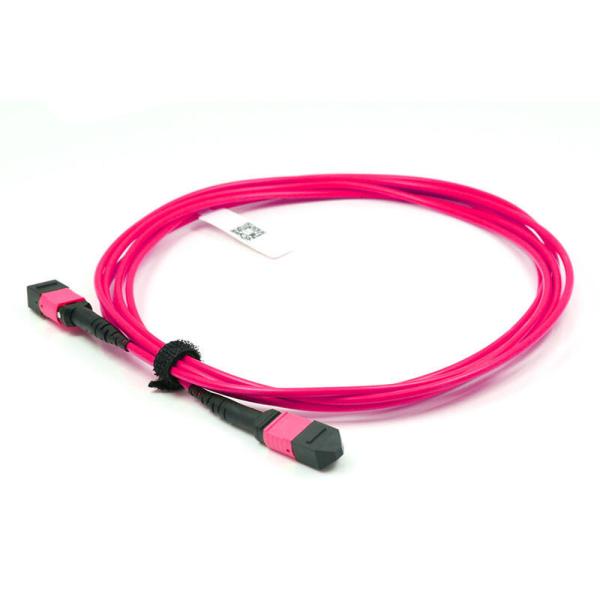

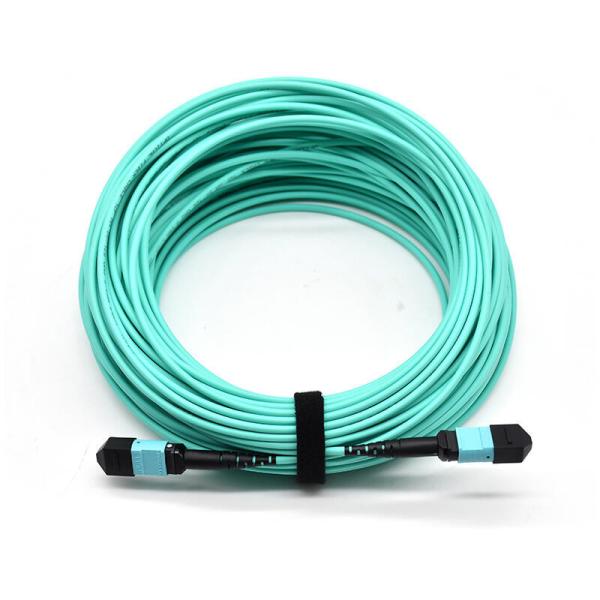

MPO/MTP Trunk Patch Cable

Description

MPO Fiber Patch cable/trunk cable is terminated with MPO connector on both ends. MPO Patch cable/trunk cables connect MPO modules together as a permanent link. The Patch cable/trunk cables are available with 12, 24, 48 and 72 fibers. Support speeds up to 10/40/100Gbps data center solutions. They are typically adopted to interconnect cassettes, panels or ruggedized MPO fan-outs and to facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environments. Besides, MPO also provides much flexibility and convenience once you have to change the connector style in the patch panels.

Features

  • Low insertion loss, high return loss
  • MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
  • Economical solution for mass-termination of fiber
  • Designed for low loss and standard loss SM and MM applications
  • Color coded housings available to differentiate fiber type, polish type and/or connector grade
  • Good in repeatability and exchangeability
  • 100% pre-terminated and tested in factory to ensure transfer performance.
  • Rapid configuration and networking, reduce installation time. 3.Supports 40G and 100G network applications.
  • Cable Jacket material: LSZH, OFNR, OFNP available.
  • Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized

Cable Parameters

Fiber
account		 OD(mm) Nominal
Weight
(kg/km)		 Max.tensile Strength (N) Max.Crush Resistance
(N/100mm)		 Min.Bending Radius (mm)
Short-term Long-term Short-term Long-term Dynamic Static
12 3.0±0.15 7 180 90 500 150 20D 10D

Optical Characteristics

Item Parameter
Single mode Multimode
Standard Elite Standard Elite
Insertion loss Typical≤0.30dB
Max≤0.75dB		 Typical≤0.15dB
Max≤0.35dB		 Typical≤0.50dB
Max≤0.25dB		 Typical≤0.10dB
Max≤0.35dB
Return loss ≥ 50dB (PC)
≥ 60dB (APC)		 ≥ 55dB (PC)
≥ 65dB (APC) 		≥30dB(PC) ≥30dB(PC)

Polarity

4F 12F 72F Fiber Optic MTP MPO Cables OFNP 3MM Low Insertion Loss
