Sliding Type Optical Fiber Patch Panel E2000 24 Ports LC 48 Fibers
Sliding Type Optical Fiber Patch Panel E2000 24 Ports LC 48 Fibers
Sliding Type Optical Fiber Patch Panel E2000 24 Ports LC 48 Fibers
Sliding Type Optical Fiber Patch Panel E2000 24 Ports LC 48 Fibers
Sliding Type Optical Fiber Patch Panel E2000 24 Ports LC 48 Fibers
Sliding Type Optical Fiber Patch Panel E2000 24 Ports LC 48 Fibers
Specifications
Place of Origin :
CHINA
Brand Name :
SKYLYNN or OEM, ODM
Certification :
ISO, ROHS, CE
MOQ :
10PCS
Packaging Details :
PP BAG, INNER BOX, OUTER BOX
Delivery Time :
2-7 DAYS
Payment Terms :
T/T, L/C, WEST UNION
Supply Ability :
800,000
Model NO. :
Slider Panel type 2
Delivery :
EXW/FOB/CIF
Country of Origin :
GUA,CN
Weight :
4.5 kg/pcs
ports number :
24 ports
Winding radius :
≥40mm
Description

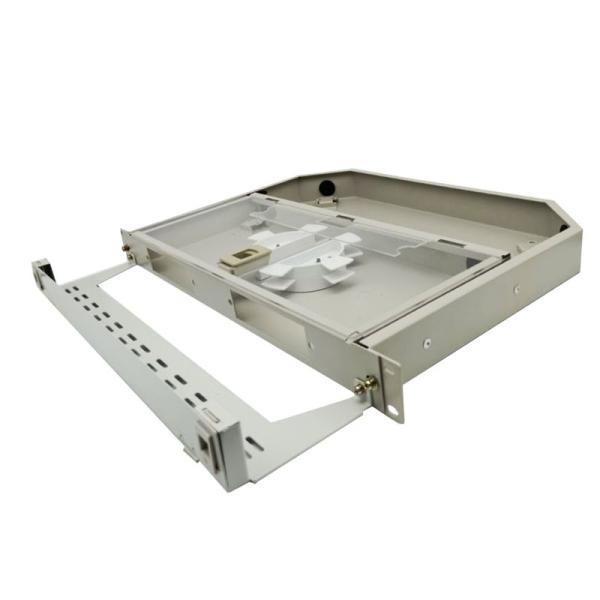

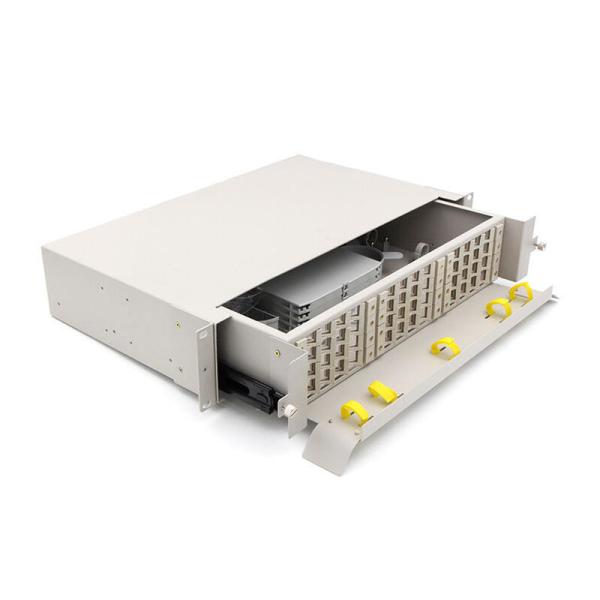

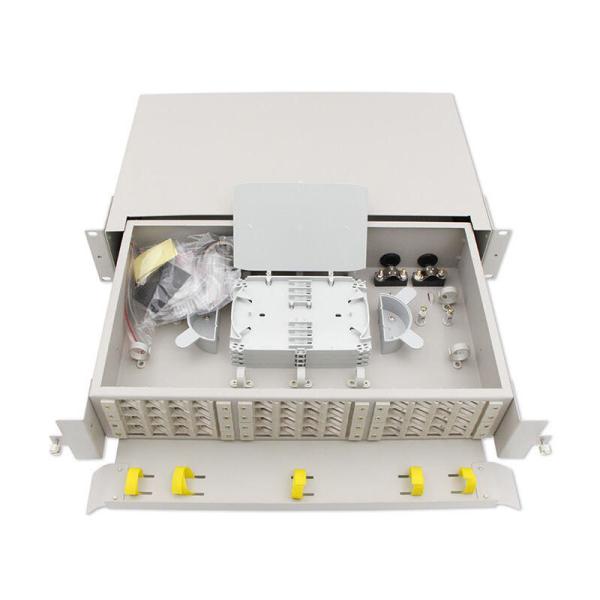

19 inch Fiber Optical Slider Patch Panel With Slider

Description

Optic fiber patch panel provides branch connection for fiber termination. It is an integrated unit for fiber management and can be used as distribution box. It divides into fix type and sliding-out type. This equipment function is to fix and manage the fiber optic cables inside the box as well as provide protection. The patch panel is modular so they are applocable to your existing systems without any modification or additional work.

Features

  • 3 pieces of front panel is changeable by modular panel, flexible choice for user.

  • 24 ports are available.

  • Maximum capacity: 48 fibers

  • The body make use of cold rolling steel,and the surface use the technique of dim plastic.strong adhesive force,artistic and durable.

  • Cable entrance are sealed with oil resistance NBR to increase the flexibility.user can choose to prick the entrance. Overlapping fiber splice tray and separate insulation earthing unit make the disposition of the cores ,expanding the capacity and cable-earthen flexible,convinient and safe.

  • SC/ST/FC/LC/E2000 ports is available.

Application

  • Local Area Network

  • CATV Network

  • FTTx System

  • Wide Area Network

  • Test Instruments

Specifications

External size 395*234*1U, 2U, 3U
Winding radius ≥40mm
Fiber capacity from 12 cores to 96 cores
Installing rack mounted
Working temperature -25°C~+45°C
Atmosphere pressure 70~106Kpa
Insulated Resistance 2×10MΩ/500V(DC)
Weight 4.5 kg/pcs

Product tags

fiber optic sliding patch panel

,

optical fiber patch panel

,

fiber optical patch panel
