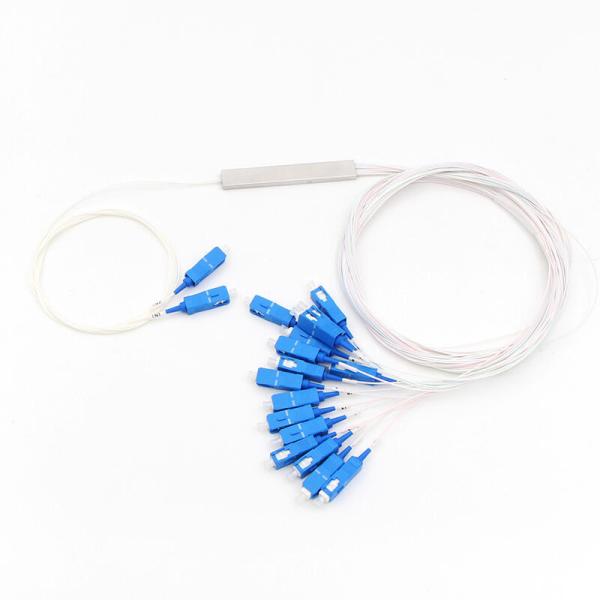

1x16 Fiber Optic PlC Steel Tube Splitter 1260NM 1650NM SC APC Low Insertion Loss
1x16 Fiber Optic PlC Steel Tube Splitter 1260NM 1650NM SC APC Low Insertion Loss
1x16 Fiber Optic PlC Steel Tube Splitter 1260NM 1650NM SC APC Low Insertion Loss
1x16 Fiber Optic PlC Steel Tube Splitter 1260NM 1650NM SC APC Low Insertion Loss
1x16 Fiber Optic PlC Steel Tube Splitter 1260NM 1650NM SC APC Low Insertion Loss
1x16 Fiber Optic PlC Steel Tube Splitter 1260NM 1650NM SC APC Low Insertion Loss
Specifications
Place of Origin :
CHINA
Brand Name :
SKYLYNN or OEM, ODM
Certification :
ISO, ROHS, CE
MOQ :
10PCS
Packaging Details :
PP BAG, INNER BOX, OUTER BOX
Delivery Time :
2-7 DAYS
Payment Terms :
T/T, L/C, WEST UNION
Supply Ability :
800,000
Model NO. :
Steel Tube Splitter
Delivery :
FOB
Description

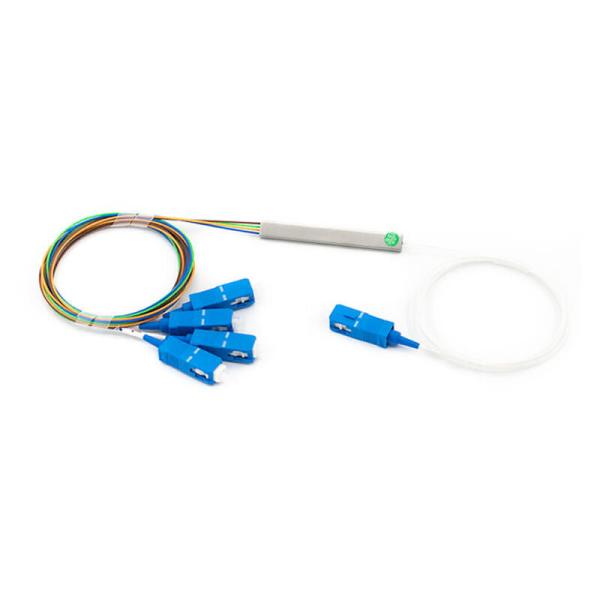

Steel Tube Mini PLC Splitter

Description

Planar light wave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity and it is widely used in PON networks to realize optical signal power splitting. We provide whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.

Features

  • Low Insertion loss
  • Low PDL
  • Compact Design
  • Good channel-to-channel uniformity
  • Wide Operating Wavelength: From 1260nm to 1650nm
  • Wide Operating Temperature: From -40℃ to 85℃
  • High Reliability and Stability

Applications

  • FTTX Systems
  • PON Networks
  • CATV Links
  • Optical Signal Distribution

Compliance

  • Telcordia GR-1209-CORE
  • Telcordia GR-1221-CORE
  • RoHS


Specifications

Table 1 – 1×N PLC Splitter

Parameters 1×2 1×4 1×8 1×16 1×32 1×64 1×128
Operating Wavelength (nm) 1260～1650
Fiber Type G657A1 or customer specified
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 17/17.4 20./20.4 23.8/24.2
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2 2.5
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.25 0.3 0.35 0.4
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50 55/50
Directivity (dB) 55 55 55 55 55 55 55
Wavelength Dependent Loss (dB) 0.3 0.3 0.3 0.5 0.5 0.5 0.5
Temperature Stability (-40～85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5 0.5
Operating Temperature (℃) -40～85
Storage Temperature (℃) -40～85
Device Dimension (mm) 4x4x40 4x4x40 4x4x40 4x7x50 4x7x50 4x12x60 N/A
Mini-Module Dimension (mm) 4x4x40 4x7x60 4x7x60 4x12x60 6x20x80 6x40x80 N/A

Table 2 – 2×N PLC Splitter

Parameters 2×2 2×4 2×8 2×16 2×32 2×64
Operating Wavelength (nm) 1260～1650
Fiber Type G657A1 or customer specified
Insertion Loss (dB)(P/S Grade) 4 7.6 11 14.4 17.5 21
Loss Uniformity (dB) 0.6 1 1.2 1.5 1.8 2.2
Polarization Dependent Loss(dB) 55/50 55/50 55/50 55/50 55/50 55/50
Return Loss (dB) (P/S Grade) 0.2 0.2 0.3 0.3 0.4 0.4
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss (dB) 0.3 0.4 0.5 0.5 0.5 0.5
Temperature Stability (-40～85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40～85
Storage Temperature (℃) -40～85
Device Dimension (mm) 4x4x40 4x4x40 4x4x40 4x7x50 4x7x50 4x12x60
Mini-Module Dimension (mm) 4x4x40 4x7x60 4x7x60 4x12x60 6x20x80 6x40x80
