LGX Modular FTTH Products 1x16 Cassete Box Fiber Splitter Distribution Box RoHS
LGX Modular FTTH Products 1x16 Cassete Box Fiber Splitter Distribution Box RoHS
LGX Modular FTTH Products 1x16 Cassete Box Fiber Splitter Distribution Box RoHS
LGX Modular FTTH Products 1x16 Cassete Box Fiber Splitter Distribution Box RoHS
LGX Modular FTTH Products 1x16 Cassete Box Fiber Splitter Distribution Box RoHS
LGX Modular FTTH Products 1x16 Cassete Box Fiber Splitter Distribution Box RoHS
Specifications
Place of Origin :
CHINA
Brand Name :
SKYLYNN or OEM, ODM
Certification :
ISO, ROHS, CE
MOQ :
10PCS
Packaging Details :
PP BAG, INNER BOX, OUTER BOX
Delivery Time :
2-7 DAYS
Payment Terms :
T/T, L/C, WEST UNION
Supply Ability :
800,000
Model NO. :
lgx box plc splitter
Delivery :
FOB
Description

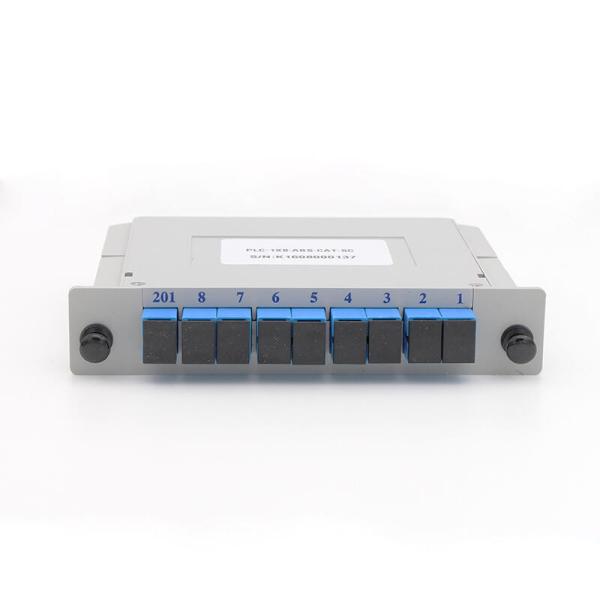

FTTH Fiber Optic PLC Splitter LGX Modular Cassete Box

Description

PLC (Planar Lightwave Circuit)/FTTH Splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers. Available split counts are: 1x4, 1x8, 1x16, and 1x32. PLC Splitters are availble with 900µm loose tube singlemode fiber and terminated or unterminated as per your needs. Unconnectorized PLC splitters come with no connectors for easy splicing or connectorization. Connectorized PLC Splitters are available with your choice of Fiber Optic Connectors: LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, and ST/UPC.

Features

  • Low excess loss
  • Excellent directivity
  • Good channel-to-channel uniformity
  • Low PDL
  • High cost-effectiveness
  • High environmental and mechanical stability
Applications
  • Fiber optical communication system
  • Fiber optical sensors
  • CATV System
  • LAN WAN System

Specification

Wavelength(nm) 1260-1650
Parameters 1×4 1×8 1×16 1×32 1×64 2×4 2×8 2×16 2×32
Insertion Loss(with connector)(dB) ≤7.4 ≤10.7 ≤13.7 ≤16.9 ≤21 ≤7.8 ≤11.5 ≤14.5 ≤17.7
Insertion Loss(W/O connector)(dB) ≤7.7 ≤11.2 ≤14.2 ≤17.5 ≤21.5 ≤8.3 ≤12 ≤15 ≤18.2
Uniformity (dB) ≤0.8 ≤1.0 ≤1.4 ≤1.9 ≤2.7 ≤1.7 ≤1.7 ≤2.2 ≤2.7
PDL(dB) ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.4 ≤0.2 ≤0.4 ≤0.4 ≤0.4
Return Loss(dB) >50
