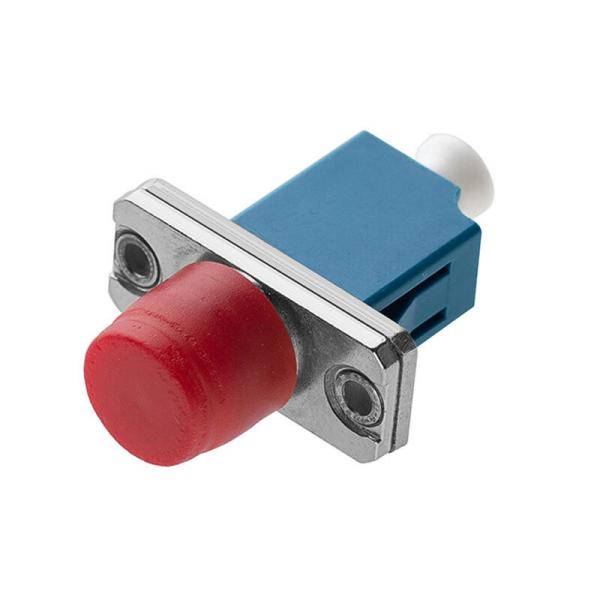

Hybrid Fiber Optic Single Mode Adapter UPC 45dB 0.2 dB RoHS
Hybrid Fiber Optic Single Mode Adapter UPC 45dB 0.2 dB RoHS
Hybrid Fiber Optic Single Mode Adapter UPC 45dB 0.2 dB RoHS
Hybrid Fiber Optic Single Mode Adapter UPC 45dB 0.2 dB RoHS
Hybrid Fiber Optic Single Mode Adapter UPC 45dB 0.2 dB RoHS
Hybrid Fiber Optic Single Mode Adapter UPC 45dB 0.2 dB RoHS
Specifications
Place of Origin :
CHINA
Brand Name :
SKYLYNN or OEM, ODM
Certification :
ISO, ROHS, CE
MOQ :
10PCS
Packaging Details :
PP BAG, INNER BOX, OUTER BOX
Delivery Time :
2-7 DAYS
Payment Terms :
T/T, L/C, WEST UNION
Supply Ability :
800,000
Model NO. :
ADAHybSMSX
Insertion Loss (Typical) :
≤0.3 dB
Exchange ability :
≤0.2 dB
Storage Temperature :
-45~85℃
Operating Temperature :
-40~75℃
Durability :
>1000 time
Description

Hybrid Series Adapter

Description

Hybrid adapters join separated connectors. They have the features of ferrule end surface pre-domed and telcordia style boots. For every type of connector, there is equivalent type of adapter. The hybrid adapter can be used in the LAN (Local Area Network). In case of MTRJ and MPO, the alignment is carried out by 2 small pins fitted to one of the connectors, the adapter is purely support and lock the connectors together in the distribution box.

Features
• Low insertion loss and back reflection loss
• Ferrule end surface pre-domed
• Precision anti-rotation key and corrosion resistant body
• UL-rated plastic housing
• Telcordia style boots
• Free-floating ceramic ferrule
• Zirconia sleeves or Phosphor bronze sleeves
• D-shaped easily installs into panel mount
• RoHS compliant

Applications
• Fiber Optic Telecommunications
• LAN (Local Area Network)
• FTTH (Fiber To The Home)
• CATV&CCTV System
• High speed transmission systems
• Fiber optic sensing
• Industtial, Mechanical and Military

Specification

Parameter Unit SC
SM MM
PC UPC APC PC
Insertion Loss (Typical) dB ≤0.3 ≤0.3 ≤0.3 ≤0.3
Return Loss dB ≥45 ≥50 ≥55 ≥30
Exchange ability dB ≤0.2
Repeat ability dB ≤0.2
Durability Time >1000
Operating Temperature ℃ -40~75
Storage Temperature ℃ -45~85
