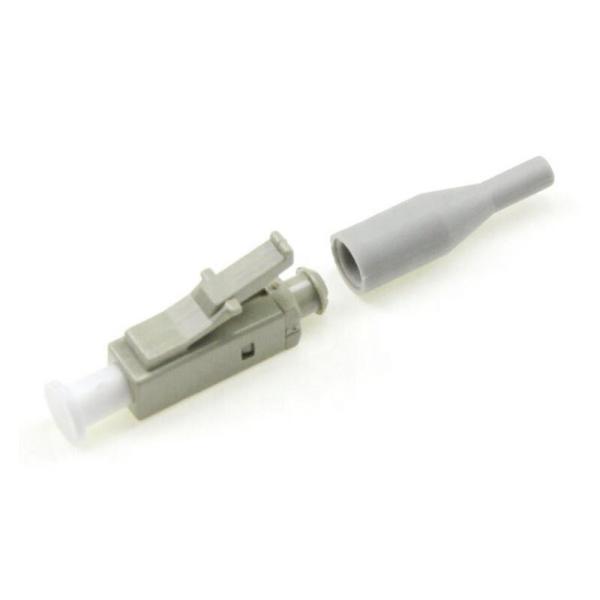

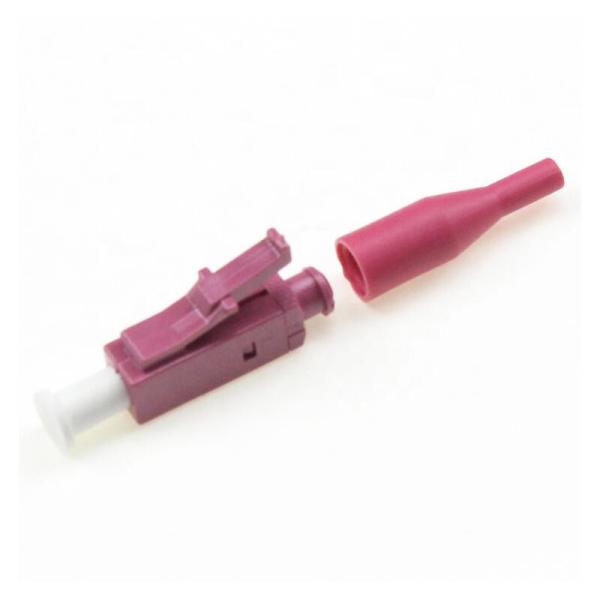

Fiber Optic Passive Components LC Single Mode Connector 900µM
Fiber Optic Passive Components LC Single Mode Connector 900µM
Fiber Optic Passive Components LC Single Mode Connector 900µM
Fiber Optic Passive Components LC Single Mode Connector 900µM
Fiber Optic Passive Components LC Single Mode Connector 900µM
Fiber Optic Passive Components LC Single Mode Connector 900µM
Specifications
Place of Origin :
CHINA
Brand Name :
SKYLYNN or OEM, ODM
Certification :
ISO, ROHS, CE
MOQ :
10PCS
Packaging Details :
PP BAG, INNER BOX, OUTER BOX
Delivery Time :
2-7 DAYS
Payment Terms :
T/T, L/C, WEST UNION
Supply Ability :
800,000
Model NO. :
CONNLCUSMSX30
Type :
SM-UPC
Insertion loss :
≤0.1 dB
Ferrule hole sizes :
125.2-126.2um
Description

LC Series Connector

Description

LC connector has good temperature stabilization and high wearable.The connector is comprised of a nickel plated brass body. LC connector is a component to terminate the end of fiber optical cable. It mechanically couples and aligns the fiber cores to make light pass successfully. Therefore, it has an important impact on the fiber optic transmission reliability and the performance of the system. Quality optical connectors lose very little light due to reflection or misalignment of the fibers.

Application

These connectors are suitable for 900µm, 2mm and 3mm cable. The connector is precision made and manufactured to demanding specifications. The combination of a ceramic ferrule with precision nickel plated brass housing provides consistent,long-term mechanical and optical performance.

Features

  • High size precision.

  • Good repeatability.

  • Good changeability.

  • Good temperature stabilization.

  • High wearable.

Specification

Type SM-UPC SM-APC MM-UPC
Typical MAX Typical MAX Typical MAX
Insertion loss ≤0.1 ≤0.3dB ≤0.15 ≤0.3dB ≤0.05 ≤0.3dB
Return loss ≥50dB ≥60dB ≥30dB
Ferrule hole sizes 125.2-126.2um 125-128um
Durability 500 mating cycles
Working temperature -40 to + 85℃
