1km SM SC APC Patch Cord Tester Otdr Fiber Launch Box Fiber Ring 1550nm G657A
1km SM SC APC Patch Cord Tester Otdr Fiber Launch Box Fiber Ring 1550nm G657A
1km SM SC APC Patch Cord Tester Otdr Fiber Launch Box Fiber Ring 1550nm G657A
1km SM SC APC Patch Cord Tester Otdr Fiber Launch Box Fiber Ring 1550nm G657A
1km SM SC APC Patch Cord Tester Otdr Fiber Launch Box Fiber Ring 1550nm G657A
1km SM SC APC Patch Cord Tester Otdr Fiber Launch Box Fiber Ring 1550nm G657A
Specifications
Model Number :
Singlemode
Application :
Telecommunication
Insertion Loss :
0.2 (max 0.3)
850nm/1310nm/1550nm :
850nm/1310nm/1550nm
Description

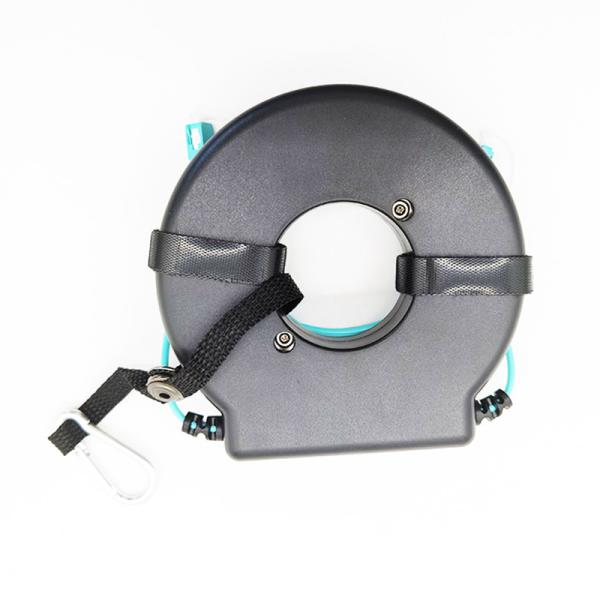

1km SM SC/APC Optical Fiber Testing Patchcords OTDR Launch Cable Box Fiber Ring

Description

Designed to aid in the testing of fiber optic cable when using an OTDR. The OTDR Launch Fiber box is used with Optical Time Domain Reflectometers (OTDR's) to help minimize the effects of the OTDR's launch pulse on measurement uncertainty.
Available in many different configurations and fiber lengths.

Features

  • Use as a pulse suppressor, OTDR launch box, delay line, product demonstrations, training, calibration.
  • Solid internal housing protects spool and leads
  • Leads wrap in the same direction for quick, easy access and storage.
  • Karabiner Clip included allows unit to be attached to equipment straps, belts and rack mounts.
  • Light weight, easy to carry, small/low profile design portable for field use.
  • Measures only 6.25" x 1.25"
  • Single-mode 9/125, Multimode 62.5/125, Multimode 50/125 OM2 and Multimode 50/125 OM3
  • Custom length configurations available

Specification

Dimensions(mm)
Diameter 6.25 ", Height 1.25"
Fiber Length(m)
100 to 1000
Fiber Types
Singlemode 9/125, Multimode 62.5/125, 50/125 OM2, 50/125 OM3
Lead Length
2 Meters, 3mm buffer
Insertion Loss
<0.3dB/km typical, <0.5dB/km max
Back Reflection (RL):
UPC: <-50dB, APC: <-60dB
Mating Reliability
<.2dB
Storage Temp.
-40° to +85° C
Humidity
0 to 95%, non-condensing
Weight
5 oz.

<

Model Number: Singlemode
Application: Telecommunication
Insertion Loss: 0.2 (max 0.3)
Wavelength: 850nm/1310nm/1550nm
No. of Fiber: 1
Type: Testers &Tools, Singmode or multimode
