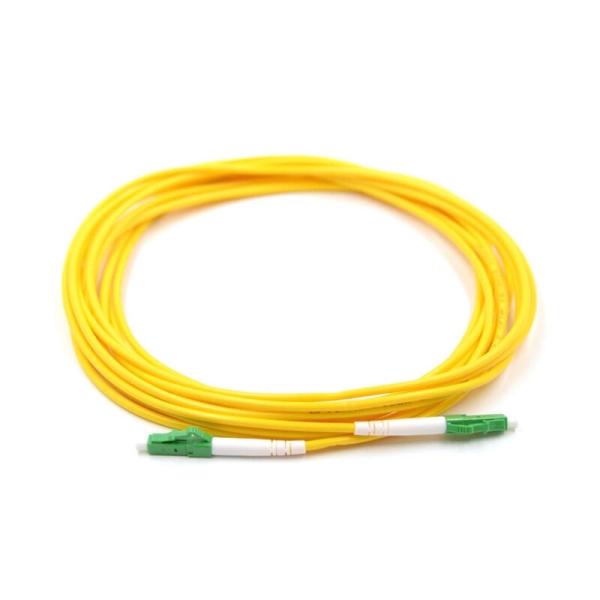

G655 LC To LC Single Mode Fiber Patch Cable G657 0.2db
G655 LC To LC Single Mode Fiber Patch Cable G657 0.2db
G655 LC To LC Single Mode Fiber Patch Cable G657 0.2db
G655 LC To LC Single Mode Fiber Patch Cable G657 0.2db
G655 LC To LC Single Mode Fiber Patch Cable G657 0.2db
G655 LC To LC Single Mode Fiber Patch Cable G657 0.2db
Specifications
Place of Origin :
CHINA
Brand Name :
SKYLYNN or OEM, ODM
Certification :
ISO, ROHS, CE
MOQ :
10PCS
Packaging Details :
PP BAG, INNER BOX, OUTER BOX
Delivery Time :
2-7 DAYS
Payment Terms :
T/T, L/C, WEST UNION
Supply Ability :
800,000
Model NO. :
LCULCUSMSX30YE
Delivery :
EXW/FOB/CIF Etc.
Country of Origin :
GUA, CN
Description

LC Series Fiber Patch cords

Description

These three areas all contribute to the performance of a patch cord, but above all the manufacturing process defines the performance of the assembly.

The LC connector was the first small form factor connector on the market. The use of a high performance 1.25mm ferrule gives the connector extremely high performance. LC connector comprises of a polymer body and a ceramic ferrule/sring/crimp barrel assembly plus a crimp over sleeve and rubber boot. These connectors are suitable for 900um and 2mm cables.

Compliance: IEC-61754-4/TIA 604-3/Telcordia GR-326-core

Application

  • ODF of optical transmission system

  • Connection of optical transmission equipments

  • Telecommunication network

  • Computer network

  • CATV

  • High quality graphic transmission network

  • High speed data transmission network

Features

  • Quick, highly repetable, low-loss connections

  • Simplex and duplex

  • Singlemode and multimode

  • PC and APC polishing

  • Various boot(cable) sizeds available

  • Various connectors available

  • Interferential parameters

  • Hybrid patch-cords are available upon request

Specifications

SPECIFICATION: 　 　 　 　
Connector type
 　 FC. FC/APC, ST, SC, SC/APC, LC, LC/APC, DIN, MTRJ, MU, MPO, E2000, E2000/APC etc.
Cable Length m 1, 2, 3, 5, 10 (±10mm)
Cable diameter mm 3.0, 2.0, 0.9
Operating wavelength nm 1310, 1490,1550
Core Type 　 G.652, G655, G657, OM1, OM2, OM3, OM4
Ferrule End-face 　 PC UPC APC
Insertion Loss dB ≤0,2
Max. Insertion Loss dB ≤0,3
Return Loss dB ≥45 ≥50 ≥55
Operation Temperature C -40 ~ +80
Core Diameter um 9/125, 62.5/125, 50/125
Durability 　 ≤0.1dB change, 500 Cycles
Sheath Color 　 SM: Yellow, OM1/OM2: Orange, OM3: Aqua, OM4: Purple, OM5: Green, customized
Package 　 Each patchcord is packaged individually and individually test certification.
