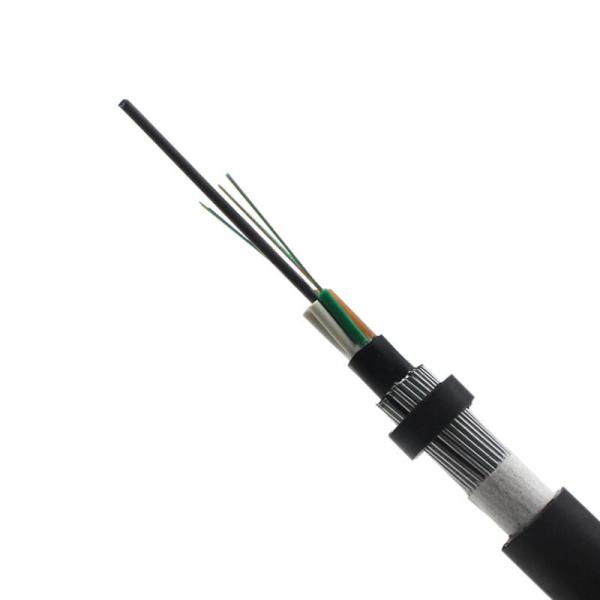

72 Core G652D GYTA33 Under Water Industrial Submarine Outdoor Fiber Optic Cable
72 Core G652D GYTA33 Under Water Industrial Submarine Outdoor Fiber Optic Cable
72 Core G652D GYTA33 Under Water Industrial Submarine Outdoor Fiber Optic Cable
72 Core G652D GYTA33 Under Water Industrial Submarine Outdoor Fiber Optic Cable
72 Core G652D GYTA33 Under Water Industrial Submarine Outdoor Fiber Optic Cable
72 Core G652D GYTA33 Under Water Industrial Submarine Outdoor Fiber Optic Cable
Specifications
Place of Origin :
CHINA
Brand Name :
SKYLYNN or OEM, ODM
Certification :
ISO, ROHS, CE
MOQ :
2KM
Packaging Details :
WOODEN DRUM
Delivery Time :
5-10 DAYS
Payment Terms :
T/T, L/C, WEST UNION
Supply Ability :
100,000 cores
Model NO. :
GYTA33
Delivery :
EXW/FOB/CIF Etc.
Country of Origin :
GUA, CN
Description
Optical Fiber Underwater Submarine Cable GYTA33
Description

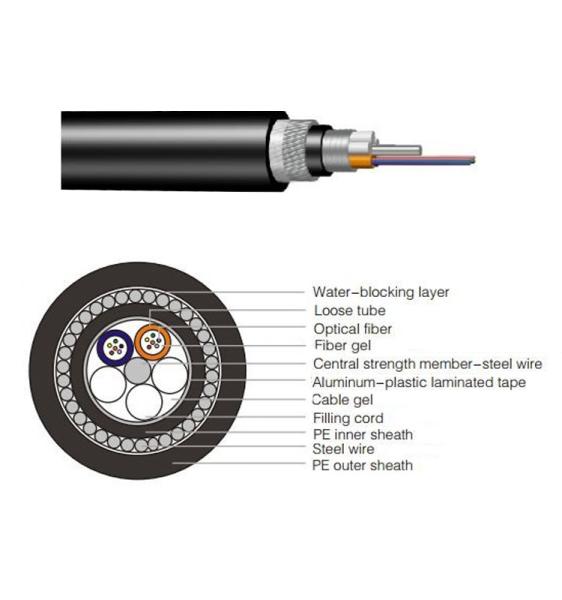

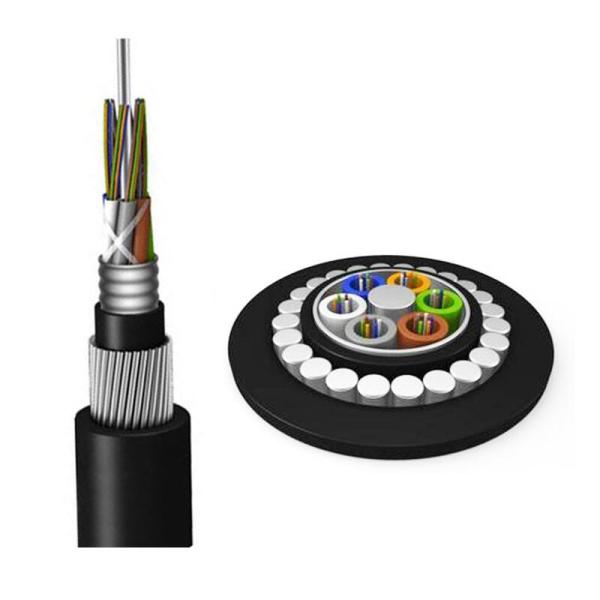

Fiber optic cable GYTA33, 2~72 fibers, central strength member (steel), jelly filled, fiber contained loose tube and pp filler (if necessary) stranded, water blocking jelly, copolymer coated aluminum tape, pe inner sheath, armored by a layer of steel wires, pe outer sheath. G652d sm fiber, detailed specification on your requests
Features
  • Low attenuation, low dispersion
  • Proper design, precise excess length control and cabling process provide cable with excellent mechanical performance and environmental performance.
  • Steel wire armor and double sheath make the cable more efficiently resist tensile, side pressure, moisture as well as the nibbling damage from animals.
  • LSZH flame-retardant material is applied in sheath in the model GYTZA33.
Application
  • Laying modes: direct buried & under-water.
  • Applications: Long-distance communication, local trunk line, catv & computer networks system.
Technical Parameter
Fiber count
2~30
32~36
38~60
62~72
2~36
38~72
CSM/Steel wire (mm)
--/1.5
--/2.0
--/1.8
2.4/1.8
--/2.0
2.4/1.8
Element mumber
5
6
5
6
6
6
Max. cores in tube
6
6
12
12
6
12
Diameter of inner sheath
8.3
8.8
9.1
9.7
10.5
10.5
Steel wire diameter and No.
Φ1.0/28
Φ1.0/29
Φ1.0/30
Φ1.0/32
Φ1.5/24
Φ1.5/24
Cable diameter approx (mm)
14.3
14.8
15.1
15.7
17.5
17.5
Weight approx (kg/km)
315
328
340
360
520
520
Tensile strength (N)
Long term
4000
10000
Short term
10000
2000
Crush Resistence(N/100mm)
Long term
3000
Short term
5000
Bending Radius (mm)
Dynamic
≥30 ×Dia. Of cable
Static
≥15×Dia. Of cable
Operating Temperature (°C)
-40°C ~+ 70°C
Application
Directly burial and Under water
