Air Blown EPFU Outdoor Optical Fiber Cable 125μM Single Mode Fiber Cable IEC60794-5
Air Blown EPFU Outdoor Optical Fiber Cable 125μM Single Mode Fiber Cable IEC60794-5
Air Blown EPFU Outdoor Optical Fiber Cable 125μM Single Mode Fiber Cable IEC60794-5
Air Blown EPFU Outdoor Optical Fiber Cable 125μM Single Mode Fiber Cable IEC60794-5
Air Blown EPFU Outdoor Optical Fiber Cable 125μM Single Mode Fiber Cable IEC60794-5
Air Blown EPFU Outdoor Optical Fiber Cable 125μM Single Mode Fiber Cable IEC60794-5
Specifications
Place of Origin :
CHINA
Brand Name :
SKYLYNN or OEM, ODM
Certification :
ISO, ROHS, CE
MOQ :
2KM
Packaging Details :
WOODEN DRUM
Delivery Time :
5-10 DAYS
Payment Terms :
T/T, L/C, WEST UNION
Supply Ability :
100,000 cores
Model NO. :
EPFU GCYFTY
Delivery :
EXW/FOB/CIF
Country of Origin :
GUA,CN
Description

Air Blown Micro Fiber Optic Cable

Description

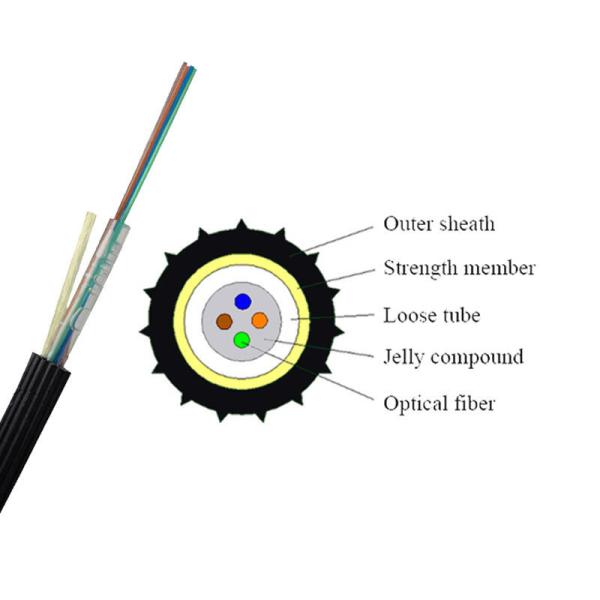

Air-blown micro-cable optical cable structure is to put the optical fiber in a loose tube made of high modulus material, the non-toxic and harmless waterproof compound is filled in the loose tube, and the aramid yarns is placed outside the loose tube Extruded PE sheath.

Characteristics

  • Small diameter, light weight, moderate hardness and softness, easy to bend when air blowing laying, easy to operate;
  • All non-metallic structure, no need of grounding, long air blowing distance;
  • Make full use of pipe hole resources, use air-blown laying facility to speed up construction, and lay a long distance at a time;
  • With the growth of communication business, it can be blown into optical cables in batches, and the investment can be carried out step by step, so as to reduce the early investment;
  • Micro-cables can be blown out to facilitate the replacement of new types of fiber optic cables in the future and keep ahead in technology;
  • Suitable for construction in crowded metropolitan area network pipelines, avoiding destructive excavation in the past;
  • Suitable for backbone network, metropolitan area network and access network;

Product Standards

Comply with standard YD / T 1460.4, IEC 60794-5 and other standards.

Optical Characteristics

　 G.652 G.655 50/125μm 62.5/125μm
Attenuation @850nm 　 　 ≤3.0 dB/km ≤3.0 dB/km
(+20℃) @1300nm 　 　 ≤1.0 dB/km ≤1.0 dB/km
　 @1310nm ≤0.36 dB/km ≤0.40 dB/km 　 　
　 @1550nm ≤0.22 dB/km ≤0.23dB/km 　 　
Bandwidth (Class A) @850nm 　 　 ≥500 MHz·km ≥200 MHz·km
@1300nm 　 　 ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 　 　 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm 　 　


Technical Parameters

Cable Type GCYFXTY-XB1.3(MTE + Cable diameter)
MTE1.8 MTE2.0 MTE2.3 MTE2.5 MTE2.8
Fiber Count 2～4 2～4 6～12 2～12 14～24
Thickness of HDPE sheath Nominal value:0.20mm, Average value:0.15mm
Nominal Overall Diameter 1.8mm 2.0mm 2.3mm 2.5mm 2.8mm
Weight 2.6 kg/km 4.0 kg/km 5.0 kg/km 6.0 kg/km 7.0kg/km
Cable Fiber Attenuation (single mode) 1310nm/1550nm≤0.35/0.22dB/km
Max. Tensile Strength 40N 40N 50N 60N 60N
Max. Crushing force 600N/100mm
Min. Bending radius -Static / Dynamic 10 / 20 outer Φ
Temperature Storage -30~+50℃;Installation-10~+40℃;Operation-20~+50℃
Cable service life (estimate value) 25years

BLOWING PERFORMANCE

Fiber count (F) Blowing machine Blowing pressure (bar) Blowing distance in 3.5/5.0mm duct (m) Blowing distance in 5.5/7.0 duct (m)
2 to 12 PLUMETTAZ PR-196, or PR-140, 13 800m 1500m
14 to 24 500m 1500m
