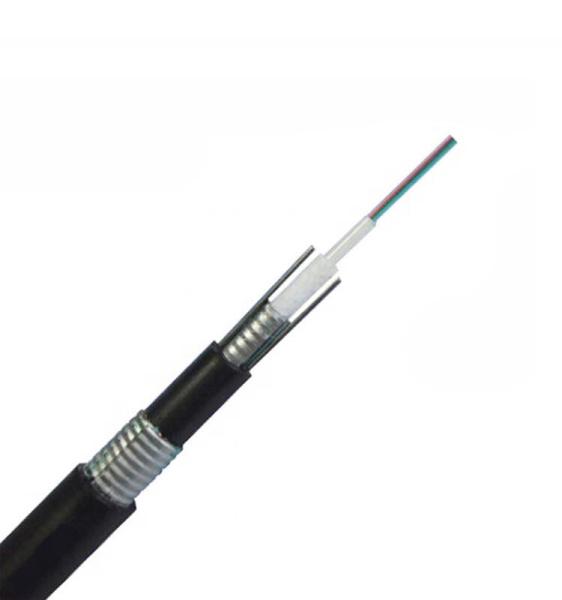

GYXTW 53 Outdoor Optical Fiber Cable 1300nm 8f 12mm Fiber Optic Displayport Cable
GYXTW 53 Outdoor Optical Fiber Cable 1300nm 8f 12mm Fiber Optic Displayport Cable
GYXTW 53 Outdoor Optical Fiber Cable 1300nm 8f 12mm Fiber Optic Displayport Cable
GYXTW 53 Outdoor Optical Fiber Cable 1300nm 8f 12mm Fiber Optic Displayport Cable
GYXTW 53 Outdoor Optical Fiber Cable 1300nm 8f 12mm Fiber Optic Displayport Cable
GYXTW 53 Outdoor Optical Fiber Cable 1300nm 8f 12mm Fiber Optic Displayport Cable
Specifications
Place of Origin :
CHINA
Brand Name :
SKYLYNN or OEM, ODM
Certification :
ISO, ROHS, CE
MOQ :
2KM
Packaging Details :
WOODEN DRUM
Delivery Time :
5-10 DAYS
Payment Terms :
T/T, L/C, WEST UNION
Supply Ability :
100,000 cores
Model NO. :
GYXTW53
Delivery :
FOB
Cable Diameter :
12MM
Cable Weight :
165 kg/km
Description

Underground Directly Burried Central Outdoor Loose Tube cable GYXTW53

Description

GYXTW53 is an Outdoor Communication Optical Fiber Cable of the loose tube jelly-filled structure, with polyethylene laminated sheath longitudinally covered with corrugated steel-tape armored polyethylene outer sheath.

Features

  • Low attenuation and dispersion, special control of exceed length ensure the good transmission performance in varying environment.

  • Excellent mechanical performance

  • Good flexibility and bending performance

  • Small outer diameter, lightness and compact construction

Applicable fileds

  • Long-distance teecom,LAN in high -votage area or access to telecom network
  • Installation: Sef-support aeria

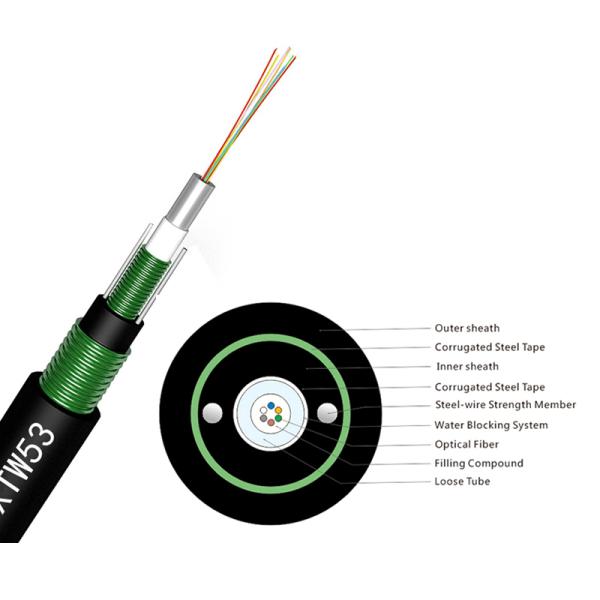

Structure Characters

  • Loose tube wifh mon-metalic strengthen member

  • High flexible amaid yarn

  • Can work at electrix field≤25KV/min a ling period

Optical Characteristics

　 G.652 G.655 50/125μm 62.5/125μm
Attenuation @850nm 　 　 ≤3.0 dB/km ≤3.0 dB/km
(+20℃) @1300nm 　 　 ≤1.0 dB/km ≤1.0 dB/km
　 @1310nm ≤0.36 dB/km ≤0.40 dB/km 　 　
　 @1550nm ≤0.22 dB/km ≤0.23dB/km 　 　
Bandwidth (Class A) @850nm 　 　 ≥500 MHz·km ≥200 MHz·km
@1300nm 　 　 ≥1000 MHz·km ≥600 MHz·km 　
Numerical Aperture 　 　 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm 　 　

Technical Characteristics

Cable Type Fiber Count Cable Diameter mm Cable Weight kg/km Tensile strength Crush resistance Bending radius
Long/Short term Long/Short term Static/Dynamic
(N) (N/100mm) (mm)
　 　 MM KG Short term Long term Short term
GYXTW53-2 2 12 165 1000/3000 1500/500 10D/20D
GYXTW53-4 4 12 165 1000/3000 1500/500 10D/20D
GYXTW53-6 6 12 165 1000/3000 1500/500 10D/20D
GYXTW53-8 8 12 165 1000/3000 1500/500 10D/20D
GYXTW53-10 10 12 165 1000/3000 1500/500 10D/20D
GYXTW53-12 12 12 165 1000/3000 1500/500 10D/20D
GYXTW53-24 24 12 165 1000/3000 1500/500 10D/20D
GYXTW 53 Outdoor Optical Fiber Cable 1300nm 8f 12mm Fiber Optic Displayport Cable
