GYTY53 Directly Buried Outdoor Optical Fiber Cable Undergroud 15.8MM 12F 24F
GYTY53 Directly Buried Outdoor Optical Fiber Cable Undergroud 15.8MM 12F 24F
GYTY53 Directly Buried Outdoor Optical Fiber Cable Undergroud 15.8MM 12F 24F
GYTY53 Directly Buried Outdoor Optical Fiber Cable Undergroud 15.8MM 12F 24F
GYTY53 Directly Buried Outdoor Optical Fiber Cable Undergroud 15.8MM 12F 24F
GYTY53 Directly Buried Outdoor Optical Fiber Cable Undergroud 15.8MM 12F 24F
Specifications
Place of Origin :
CHINA
Brand Name :
SKYLYNN or OEM, ODM
Certification :
ISO, ROHS, CE
MOQ :
2KM
Packaging Details :
WOODEN DRUM
Delivery Time :
5-10 DAYS
Payment Terms :
T/T, L/C, WEST UNION
Supply Ability :
100,000 cores
Model NO. :
GYTY53
Delivery :
EXW/FOB/CIF etc.
Country of Origin :
GUA,CN
Bandwidth (Class A) :
@850nm
Description

Outdoor Underground Directly Burried Stranded Loose Tube Cable GYTY53

Description

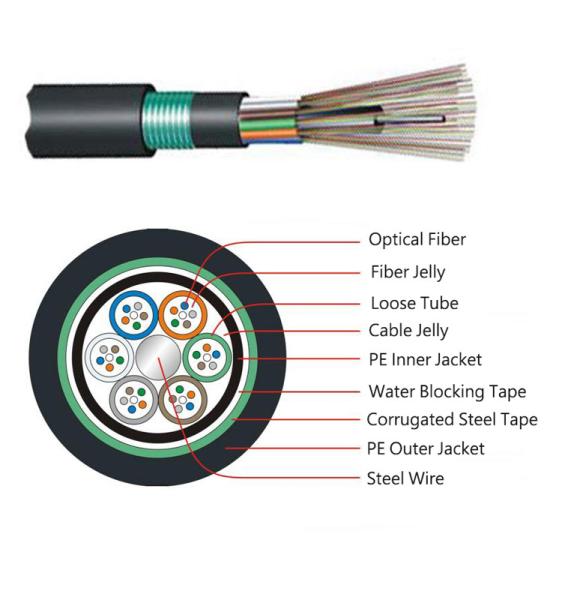

The loose tube fiber are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

Characteristrics

  • Outdoor loose tube stranded armored optic fiber cable

  • Good mechanical and temperature performance

  • High strength loose tube that is hydrolysis resistant

  • Special tube filling compound ensure a critical protection of fiber

  • Crush resistance and flexibility

Standards

GYTA53 cable complies with standard Y D/T 907-2001 as well as IEC 60794-1

Applications

Used for long-distance communication and local network

Laying Method

Direct burial and duct

Optical Characteristics

　

G.652

G.655

50/125μm

62.5/125μm

Attenuation

@850nm

　

　

≤3.0 dB/km

≤3.0 dB/km

(+20℃)

@1300nm

　

　

≤1.0 dB/km

≤1.0 dB/km

　

@1310nm

≤0.36 dB/km

≤0.40 dB/km

　

　

　

@1550nm

≤0.22 dB/km

≤0.23dB/km

　

　

Bandwidth (Class A)

@850nm

　

　

≥500 MHz·km

≥200 MHz·km

@1300nm

　

　

≥1000 MHz·km

≥600 MHz·km

　

Numerical Aperture

　

　

0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength λcc

≤1260nm

≤1480nm

　

　

Technical Parameters

Cable Type

Fiber Count

Tubes

Fillers

Cable Diameter mm

Cable Weight kg/km

Tensile strength

Crush resistance

Bending radius

Long/Short term

Long/Short term

Static/Dynamic

(N)

(N/100mm)

(mm)

GYFTY53-2~6

2~6

1

7

15.8

230

1000/3000

1000/3000

10D/20D

GYFTY53-8~12

8~12

2

6

15.8

230

1000/3000

1000/3000

10D/20D

GYFTY53-14~18

14~18

3

5

15.8

230

1000/3000

1000/3000

10D/20D

GYFTY53-20~24

20~24

4

4

15.8

230

1000/3000

1000/3000

10D/20D

GYFTY53-26~30

26~30

5

3

15.8

230

1000/3000

1000/3000

10D/20D

GYFTY53-32~36

32~36

6

2

15.8

230

1000/3000

1000/3000

10D/20D

GYFTY53-38~42

38~42

7

1

15.8

230

1000/3000

1000/3000

10D/20D

GYFTY53-44~48

44~48

8

0

15.8

230

1000/3000

1000/3000

10D/20D

GYFTY53-50~60

50~60

5

3

16.8

255

1000/3000

1000/3000

10D/20D

GYFT Y53-62~72

62~72

6

2

16.8

255

1000/3000

1000/3000

10D/20D

GYFTY53-74~84

74~84

7

1

16.8

255

1000/3000

1000/3000

10D/20D

GYFTY53-86~96

86~96

8

0

16.8

255

1000/3000

1000/3000

10D/20D

GYFTY53-98~108

98~108

9

1

19.2

320

1000/3000

1000/3000

10D/20D

GYFTY53-110~120

110~120

10

0

19.2

320

1000/3000

1000/3000

10D/20D

GYFTY53-122~132

122~132

11

1

21.2

380

1000/3000

1000/3000

10D/20D

GYFTY53-134~144

134~144

12

0

21.2

380

1000/3000

1000/3000

10D/20D
