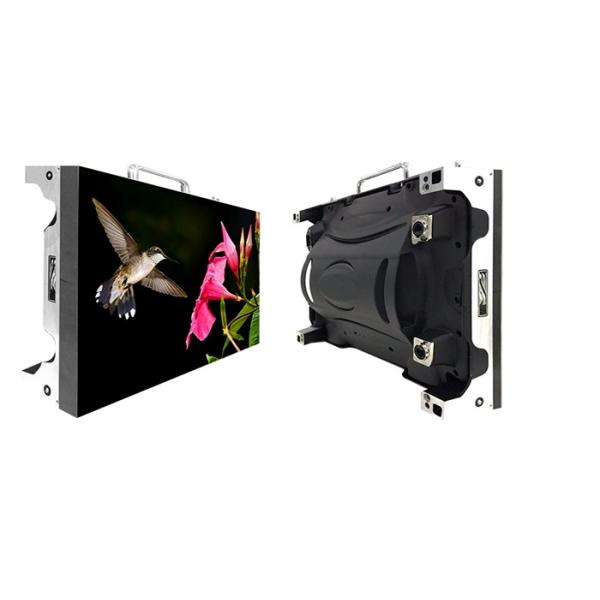

15W P3 Indoor Led Display Screen 1R1G1B Module Size 192mm*192mm
15W P3 Indoor Led Display Screen 1R1G1B Module Size 192mm*192mm
15W P3 Indoor Led Display Screen 1R1G1B Module Size 192mm*192mm
15W P3 Indoor Led Display Screen 1R1G1B Module Size 192mm*192mm
15W P3 Indoor Led Display Screen 1R1G1B Module Size 192mm*192mm
15W P3 Indoor Led Display Screen 1R1G1B Module Size 192mm*192mm
15W P3 Indoor Led Display Screen 1R1G1B Module Size 192mm*192mm
15W P3 Indoor Led Display Screen 1R1G1B Module Size 192mm*192mm
Specifications
Brand Name :
SOL COLUR
Model Number :
P3
Certification :
3C ,EMC ,RoHS ,
Place of Origin :
SHEN ZHEN
MOQ :
Square Meters / 1 Piece
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
5000 Square Meter/Square Meters per Month
Delivery Time :
15-20 work days
Packaging Details :
Flight Case,Wooden Case,Carton Case
Max Power :
15W
Weight :
0.28kg
Scan mode :
1/32
Pixel resolution :
64 dots(W)*64 dots(H)
Pixel pitch :
3mm
Module thickness :
22mm
Description

15W P3 Indoor Led Display Screen 1R1G1B Pixel Configuration Module Size 192mm*192mm

Technology Parameters :


Unit Module

 Item Parameter
Model Number SF-TS3.0-32S-A
Module size 192mm*192mm
Pixel pitch 3mm
Pixels Density 111111dots/m2
Pixel configuration 1R1G1B
Package mode NationstarSMD2121
Pixel resolution 64dots(W)*64 dots(H)
Max Power consumpion 15W
Module thickness 22mm
Weight 0.28kg
Drive type Constant drive
Scan mode 32S
Port type HUB75-A
Brightness of white balance ≥1000cd/m2





Cabinet

 Dimension 576mm*576mm
Monomer Module Number 9pcs
Power supply 5V/60A*1pcs
Thermal discharge fan 2pcs
Pixel per cabinet 192*192mm
Best viewing distance 3M～10M
Best viewing distance 110°(W) 110°(H)
Temperature

storage:-35℃～+85℃
working:-20℃～+50℃
Relative humidity 10%-95%
Thickness 55mm


Power

 Working voltage AC220V±10%
Average Power consumption 150W/H
Max.Power consumption ≤650W/㎡
Current ≤20mA(single LED)


Control system

 CPU Pentium4 or above P4 or more
Operation system WIN98/2000/NT/XP
Control method Synchronization


Main technical
parameter

 Driving device Constant currentdriver IC
Refresh frequency ≥1080HZ
Grey scale/colors


gray4096 levels of each color(RGB)/16.7M colors
MTBF ≥9000hours
Power switch Automatic switch


Product Advantages:


1.Mapping Point to Point Control of playing system and display Surface


2.Project customized display effect and resolution design


3.Low gray scale and high performance ability , rich program level, synchronous display with computer


4.Emergency playback, instant editing, instant display


5.Design of high density, smaller dot spacing

Product Show:
15W P3 Indoor Led Display Screen 1R1G1B Module Size 192mm*192mm
