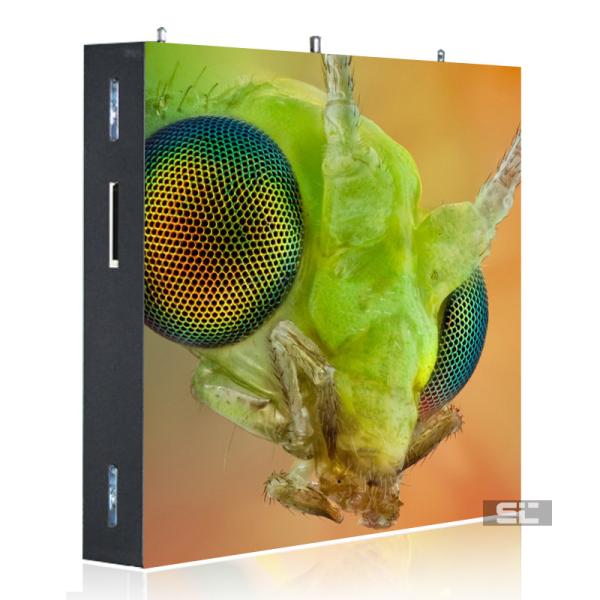

Supermarket Advertising Outdoor LED Video Wall Energy Saving For Exhibition
Supermarket Advertising Outdoor LED Video Wall Energy Saving For Exhibition
Supermarket Advertising Outdoor LED Video Wall Energy Saving For Exhibition
Supermarket Advertising Outdoor LED Video Wall Energy Saving For Exhibition
Supermarket Advertising Outdoor LED Video Wall Energy Saving For Exhibition
Supermarket Advertising Outdoor LED Video Wall Energy Saving For Exhibition
Specifications
Brand Name :
SOL COLUR
Model Number :
Outdoor Energy Saving DIP P10
Certification :
CCC IP68 CE ISO9001 ROSH
Place of Origin :
SHENZHEN CHINA
MOQ :
Square Meters / 1 Piece
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
5000 Square Meter/Square Meters per Month
Delivery Time :
10 days after received deposit
Packaging Details :
Wooden box,Flight Case
Warranty :
2 years
Module Scan :
4 Scan
Brightness :
7500cd
Color :
Full Color
Module Number :
DIP P10
Usage :
Outdoor
Description

High Resoultion Energy Saving DIP P10 Fixed Outdoor LED Display Panel RGB SMD 32x32 P10 Outdoor

Specifications:

Item Techinical Specifications
Pixel Pitch 8mm 10mm 12mm 16mm
LED Configuration SMD 3-in-1(SMD3535) DIP246 (1R1G1B) DIP246 (1R1G1B) DIP246 (1R1G1B)
Pixel Density 15625 pixels/sq.m 10000 pixels/sq.m 6944 pixels/sq.m 3906pixels/sq.m
Module Size 256mm*128mm 160mm*160mm 192mm*192mm 256mm*128mm
Module Resilution 32pixel*16pixel 16pixel*16pixel 16pixel*16pixel 16pixel*8pixel
Cabinet Size 1024mm*1024mm 960mm*960mm 960mm*960mm 1024mm*1024mm
Cabinet Resolution 128pixels*128pixels 96pixels*96pixels 80pixels*80pixels 64pixels*64pixels
Cabinet Material Iron/Aluminum Iron/Aluminum Iron/Aluminum Iron/Aluminum
Cabinet weight 50kg/sqm or 40kg/sqm 50kg/sqm or 40kg/sqm 50kg/sqm or 40kg/sqm 50kg/sqm or 40kg/sqm
Brightness 6000cd/sqm 8000cd/sqm 7500cd/sqm 8500cd/sqm
Colour temperature 3500K-9500K(adjustable) 3500K-9500K(adjustable) 3500K-9500K(adjustable) 3500K-9500K(adjustable)
Viewing Angle H:140°/V:140° H:110°/V:55° H:110°/V:55° H:110°/V:55°
Brightness Uniformity ≥97% ≥97% ≥97% ≥97%
Ave. Power consumption 240 W/sqm 200 W/sqm 200 W/sqm 240 W/sqm
Max. Power consumption 800W/sqm 600W/sqm 600W/sqm 800W/sqm
Best Viewing Distance ≥8 ≥10 ≥12 ≥16
Contrast ratio 5000:1 5000:1 5000:1 5000:1
Frame rate 50/60 Hz/sec 50/60 Hz/sec 50/60 Hz/sec 50/60 Hz/sec
Refresh rate ≥1200Hz ≥1200Hz ≥1200Hz ≥1200Hz
Drive Mode 1/4 scan 1/4 scan 1/4 scan Static contant current
Brightness Adjustment Manual/Auto/Programmable
Input Voltage AC220V/50HZ or AC110V/60HZ (±10%)
Output Voltage 5V,40A
Grey scale levels R(256bit) x G(256bit) x B(256bit)
Display Colors R(1024) x G(1024) x B(1024)
Protection Level IP65
Life-span 100,000 hours
MTBF 10,000 hours
Malfunction dot rate < 0.0001
Storage Temp/Humidity -40~+65℃/10~90%RH
Operating Temp/Humidity -20~+65℃/10~90%RH
Control System Synchronous/Asynchronous/Wifi/3G Wireless for choice
Input Signal RF,TV,RGB,S-VIDEO,PAL,DVI,HDMI,VGA,SDI,AVI,RGBHV,CVBS,etc
PC Operating System Microsoft Windows 7, 8, 98, 2000, XP and Vista

Outdoor Advertising Led Display

1. Warranty:2 years
2. Lifespan:100000hours
3. Brightness:8000cd/sq.m
4. Waterproof IP65

Features & Technical Specification:
1. Wide application field: Advertising LED display, Stadium perimeter LED display, Mobile LED display for mobile media, shopping mall LED display for logo showing, bank & stock exchange LED display for rates showing, train & bus station, airport, telecommunication LED screen system for information showing and instruction, Stage performances and so on.
2. High Contrast and Frequency: 4000: 1 and 5000Hz, which is a very high level to ensure a vivid image of our LED screen system.
3. First-class LED chip: Supplied by Silan & other high strictly selected LED chip to ensure the long life time and high brightness of our LED screen system.

4. Clear vivid image quality: Even in direct, full-on sunlight to ensure you attracts more audience to get short ROI of your LED screen's investment.
5. Long-term Brightness: 7500-nit brightness(for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display.
6. Easy Installation & Using: Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED screen system.
7. Convenient Servicing: Front or rear cabinet access make the maintains work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.

Project Show:

Supermarket Advertising Outdoor LED Video Wall Energy Saving For Exhibition
