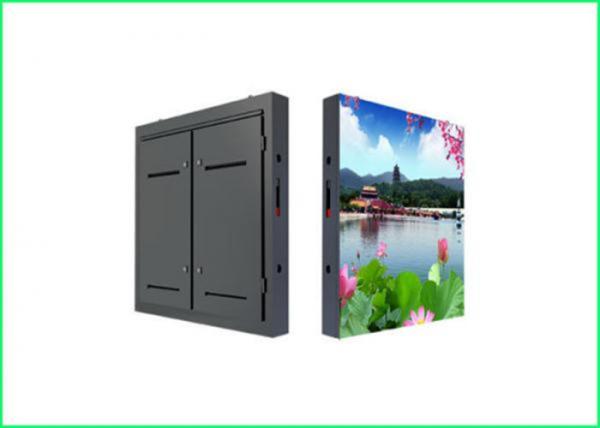

IP65 LED Outdoor Advertising Screens P4mm SMD1921 Module Size 320*160mm
IP65 LED Outdoor Advertising Screens P4mm SMD1921 Module Size 320*160mm
IP65 LED Outdoor Advertising Screens P4mm SMD1921 Module Size 320*160mm
IP65 LED Outdoor Advertising Screens P4mm SMD1921 Module Size 320*160mm
Specifications
Brand Name :
SOL COLUR
Model Number :
P4
Certification :
ROHS,EMC,IP65
Place of Origin :
SHENZHEN,CHINA
MOQ :
1 Square Meters
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, , Western Union
Supply Ability :
5000 Square Meter/Square Meters per Month
Delivery Time :
15-20days
Packaging Details :
CARTON, WOODEN CASE，FLIGHT CASE
Module size :
320*160
Pixel pitch :
4mm
Max Power :
27.5W
Weight :
0.37kg
Scan mode :
1/8
Module thickness :
22mm
Description

IP65 Outdoor Advertising LED Display Pixel Pitch 4mm SMD1921 Module Size 320*160

Product Description

1.Outdoor high resolution and high brightness.
2.Ingress protection being IP65, weather proof and dust proof.
3.High brightness uniformity and color uniformity.

4. Excellent flatness and no splicing gap between modules.
5. Quick installation and removal with facile connection lock

SC outdoor full-color technology parameters

Unit Module Item Parameter
Model Number SC-P4(1921) 80*40-4L 10S-V1.6
Module size 320mm*160mm
Pixel pitch 4mm
Pixels Density 62500dot/m2
Pixel configuration 1R1G1B
Package mode SMD1921
Pixel resolution 80dots(W)*40dots(H)
Max Power 27.5W
Module thickness 16mm
Weight 0.58kg
Drive type Constant drive
Scan mode 1/10
Port type HUB75
Brightness of white balance ≥6000～6500cd/m2

LED

Cabinet

 Dimension 960*960
Monomer Module Number 18pcs
Power supply 5V/60A*3 pcs
Thermal discharge fan 2pcs
Pixel per cabinet 960mm*960mm
Best viewing distance 4M～10M
Best viewing angle 110°(W) 110°(H)
Temperature

working:-20℃～+50℃
Relative humidity 10%-95%
Thickness 100mm
Power Working voltage AC220V±10%
Average Power consumption 325W/㎡
Max .Power consumption ≤975W/㎡
Current ≤20mA(single LED)
Control system CPU Pentium4 or above P4
Operation system WIN98/2000/NT/XP/WIN7
Control method Synchronization

Main technical

parameter

 Driving device Constant drive IC
Refresh frequency ≥1920HZ
Grey scale/colors 4096gray level/16.7M colors
MTBF ≥100000hours
Power switch Automatic switch
Display Mode ≥800*600/1024*768
Product Features:

1, IP65 weather rating, ensures great quality outputs in every condition.

2,Wide color range, excellent color uniformity

3, Stable performance:superior anti UV, sulfide resistant ability, can be long-term used in outdoor

4, SMD LEDs ensure large viewing angle, up to 110° horizontally and 110° vertically.
Image no distortion, no color cast in any angle within this range, reaches to more audiences.

5, Three anti-protection: anti-corrosion, anti-static, moisture, shock, greatly improving the reliability of the product.

6.Perfect uniformity and no mosaic.

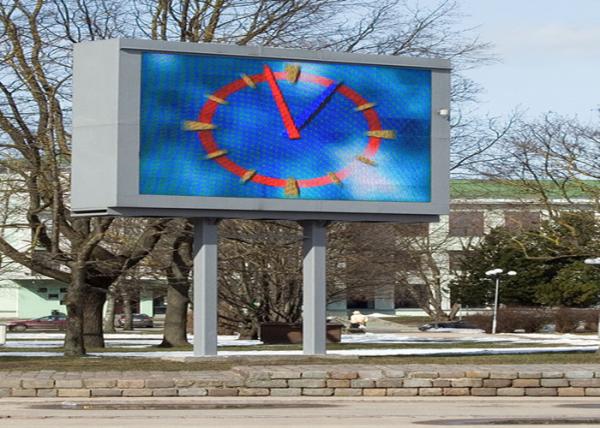

Project Show:

IP65 LED Outdoor Advertising Screens P4mm SMD1921 Module Size 320*160mm
