Unique Integration Design
Easy to transport, install and maintain

Rotating Solar Panel
Solar Panel can be adjusted in vertical and horizontal direction

Charge and Discharge Management
Protect battery by software and hardware, supporting battery charge at 0v

Light Efficiency Management
Patent led chip with high efficiency, up to 160lm/w

Microwave Motion Sensor
Radar controlled, called Doppler effect. More intelligent, energy-saving

Control Mode Management
6 work modes for choice

Patent Bat-wing Lens
Lighting area much wider, the maximum of using the lighting all light the road

Monitoring Management
Achieved video monitoring function, building safe village.

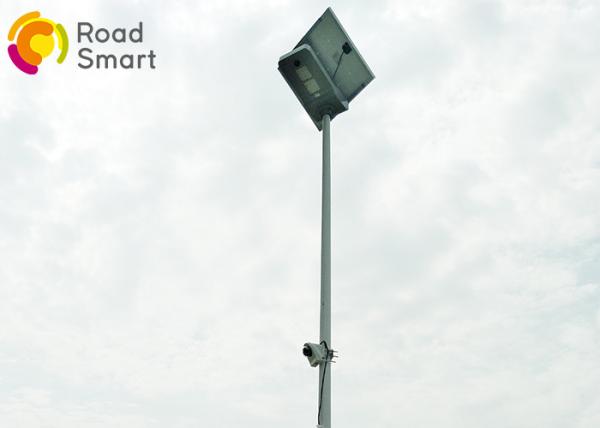

Integrated Led Solar Garden Security Light with CCTV camera

Lamp parameter

Power: 80W/18V

Material: Mono crystalline silicon

Solar cell efficiency: 19-20%

Capacity: 340WH/12.8V

Charge cycle times: 2000 times

Luminous flux: 2500-2800lm

Light output: 20W

LED qty: 60pcs

LED chip: Bridgelux 160lm/w

Color temperature: 3000-6500K

CRI: ≥70Ra

Material of lamp head: Aluminum alloy
Elevation angle: 12° (attention to Dialux use)
Lifespan: 50000hrs
Light control voltage: 5V
Light distribution: Batwing lens with polarized light
Beam angle: X-axis: 140° Y-axis: 50°
Lighting time(full charged): 2 rainy days
Operation temperature: -20℃~60℃
Top diameter of pole: 70mm
Mounting height: 4-6m
Installation spacing: 10-20m

Camerea parameter

System voltage: 12V
Output power: 2W
Effective pixelsc: 2.1 million effec tive pixelsc, 1920*1080
SNR: ≥ 50db(AGC OFF)
DR: ≥ 100db

Interface type: CS/C

Shot: Automatic diaphragm (DC drive)

Focal length: 2.8mm (2.5mm ,3.6mm, 4mm, 6mm, for options)
Resolution ratio Main code stream: 1920*1080 ,1-25(30) frame/s 1280*720 ,1-25(30) frame/s

Video coding: H.264 BP/MP/HP coding/MJPEG coding

Memory interface: Support SD2.0 standard Micro SD (TF) card, maximum capacity of 256GB

Data storage: Video, picture files

Storage mechanism: Manual, automatic, (circulation, timing, alarm switching, mobile detection)

Third-party agreement: Support ONVIF / GB28181
Function module: WIFI wireless module

Working temperature: - 40℃ - +55℃

Waterproofing grade: IP65

Mounting height: 3-4m

Note:

1. This system do not include memory card and router.

2. Recommend brand of memory card is samgsung or kingston.

3. Advised size of router above 300m.

Package

Color box packaged, camera inside lamp body box, anti-shock packaging material, with bubble

bags and foam, ensure transport safety.

Camera Features

Common Version do not have the function of vehicle recognition.

Power consumption for common version is 2w;

Power consumption for vehicle recognition version is 4w.
