Lamp parameter

Power: 80W/18V

Material: Mono crystalline silicon

Solar cell efficiency: 19-20%

Capacity: 340WH/12.8V

Charge cycle times: 2000 times

Luminous flux: 2500-2800lm

Light output: 20W

LED qty: 60pcs

LED chip: Bridgelux 160lm/w

Color temperature: 3000-6500K

CRI: ≥70Ra

Material of lamp head: Aluminum alloy
Elevation angle: 12° (attention to Dialux use)
Lifespan: 50000hrs
Light control voltage: 5V
Light distribution: Batwing lens with polarized light
Beam angle: X-axis: 140° Y-axis: 50°
Lighting time(full charged): 2 rainy days
Operation temperature: -20℃~60℃
Top diameter of pole: 70mm
Mounting height: 4-6m
Installation spacing: 10-20m

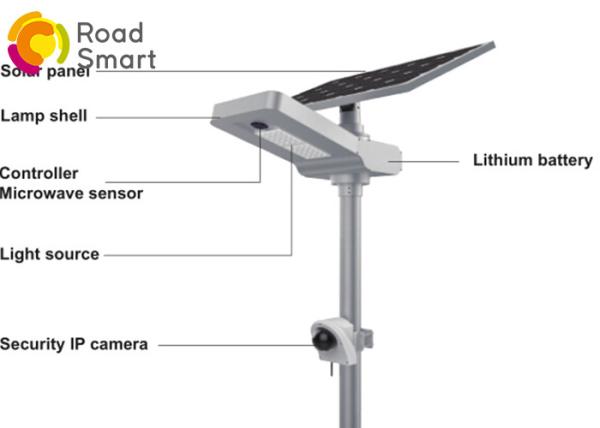

Unique Integration Design
Easy to transport, install and maintain

Rotating Solar Panel
Solar Panel can be adjusted in vertical and horizontal direction

Charge and Discharge Management
Protect battery by software and hardware, supporting battery charge at 0v

Light Efficiency Management
Patent led chip with high efficiency, up to 160lm/w

Microwave Motion Sensor
Radar controlled, called Doppler effect. More intelligent, energy-saving

Control Mode Management
6 work modes for choice

Patent Bat-wing Lens
Lighting area much wider, the maximum of using the lighting all light the road

Monitoring Management
Achieved video monitoring function, building safe village.

Parameter

4200lm IP65 LED Solar Street Garden Community Road Lamp with camera LiFePO4 battery

6 working modes

DEMO: No matter day or night, light "on" for 1 mintue. Only for test use.
OFF: Light "off", no matter day or night.
L: At night, 100%-1hr, 70%-3hrs, 30%-dawn.
T: At night,100%-1hr, 70%-2hrs, 40%-3hrs.
M: At night, 50%-1hr, 100%-3hrs, 30%-dawn.
At night, 100%-1hr, 70%-3hrs, then sensor working, 50%
U: if people come, 20% stand-by.

Default is L mode, once a certain mode was set successfully, it will be reserved until you
change other modes with remote control.

Fetures of CCTV camera

1. Maxmium resolution 1920*1080

2. 1/2.8 inch SONY Exmor Sensor, capture movement image has no serration

3. Support the digital wide dynamic, both to improve the dynamic range,prevent the movement of the shadow

4. Intelligent 3D noise reduction, adaptive static and motion scene

5. Support digitally reduce shake, reduce the impact of wind or vibration on the image

6. Support lens edge correction to make image center and edge perfect

7. High signal-to-noise ratio, the image is clear

8. Support SD2.0 standard Micro DHC memory card

9. Support multiple area privacy settings

10. Support for mobile detection and network failure detection, test and other tactics and alarm video, picture snapshot

11. Embedded Web Server, support IE preview video, parameter configuration, equipment upgrade,user permission management

12. Built-in WIFI wireless network module

13. Realizing each frame will not leak out

14. low-power dissipation

Package

Color box packaged, camera inside lamp body box, anti-shock packaging material, with bubble

bags and foam, ensure transport safety.

Camera Features

Common Version do not have the function of vehicle recognition.

Power consumption for common version is 2w;

Power consumption for vehicle recognition version is 4w.

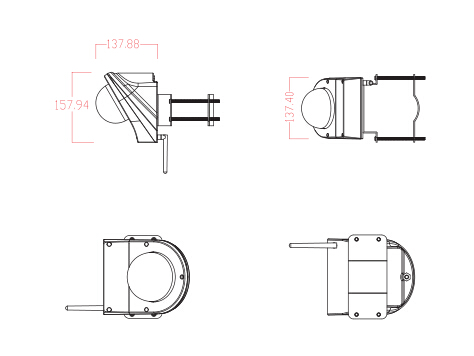

Camera Size

Camera Photoes
