Specifications
Brand Name :
Road Smart
Model Number :
SC-NH100-S1
Certification :
ISO, SGS, CQC, IP65, CE, RoHS, FCC
Place of Origin :
Shenzhen
MOQ :
1set
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000sets/year
Delivery Time :
8-10 work days
Packaging Details :
Color Box Packed, Anti-Shocked Package Material;
Panel Power :
100W/18V
Material :
Mono crystalline silicon
Solar cell efficiency :
18-20%
Capacity :
424WH/12.8V
Charge cycle times :
2000 times
Luminous flux :
4500-5000lm
Description

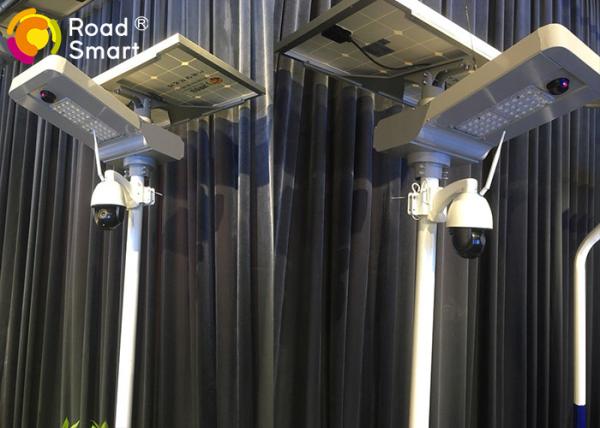

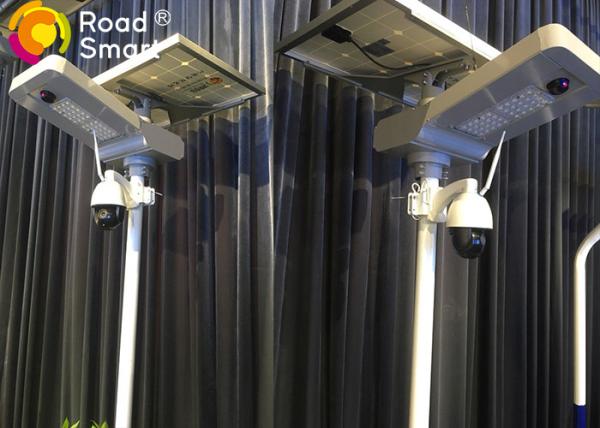

4G&WIFI Integrated solar led street light with cctv camera

Parameter

Type

SC-NH65-S2

SC-NH65-S3

SC-NH80-S2

SC-NH80-S3

SC-NH100-S2

SC-NH100-S3

SC-NH150-CS2

SC-NH150-CS3

Panel Power 65W/18V 80W/18V 100W/18V 120W/18V
Material Mono Crystalline Silicon
Solar cell efficiency 19-20% 19-20% 19-20% 19-20%

Lithium

battery

Capacity 212WH/12.8V 340WH/12.8V 424WH/12.8V 610WH/11.1V
Charge cycle times 2000 times 2000 times 2000 times 2000 times

Lamp

head

Luminous flux 2000-2500lm 3000-3500lm 4500-5000lm 6000-6500lm
Light output 15W 20W 30W 40w
Color temperature 3000K-6500K
LED chip Bridgelux
Color temperature 6000K
CRI >70Ra
Material of lamp head Aluminum alloy
Elevation angle 12 (attention to Dialux use)
Lifespan 50000hrs
System Light control voltage 5V
Light distribution Batwing lens with polarized light
Beam angle X-axis:140 Y-axis:50
Lighting time(full charged) 3-4 rainy days
Operation temperature -20~60
Installation Top diameter of pole 70mm
Mounting height 5-12m
Installation spacing 20-30m

Note:

1. S2 means WIFI version (built-in WIFI wireless module).
2. S3 means 4G version 4G Module and built-in WIFI wireless module.

Core Technologies

Unique Integration Design
Easy to transport, install and maintain

Rotating Solar Panel
Solar Panel can be adjusted in vertical and horizontal direction

Charge and Discharge Management
Protect battery by software and hardware, supporting battery charge at 0v

Light Efficiency Management
Patent led chip with high efficiency, up to 160lm/w

Microwave Motion Sensor
Radar controlled, called Doppler effect. More intelligent, energy-saving

Control Mode Management
6 work modes for choice

Patent Bat-wing Lens
Lighting area much wider, the maximum of using the lighting all light the road

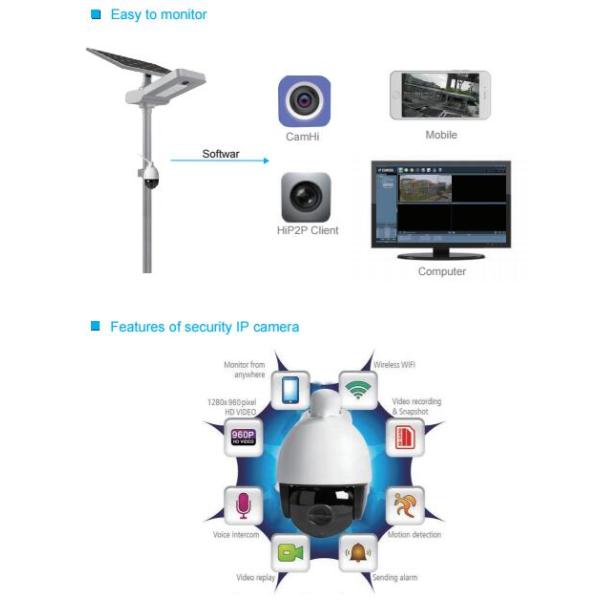

Monitoring Management
Achieved video monitoring function, building safe village, smart city.

4G WIFI Integrated Solar Street Light With Camera Mono Crystalline Silicon Material

4G WIFI Integrated Solar Street Light With Camera Mono Crystalline Silicon Material

4G WIFI Integrated Solar Street Light With Camera Mono Crystalline Silicon Material

If any interest, feel free to contact me.

Whatsapp/Mobile phone: +8613823524139 Email: sales16@socreat.com
