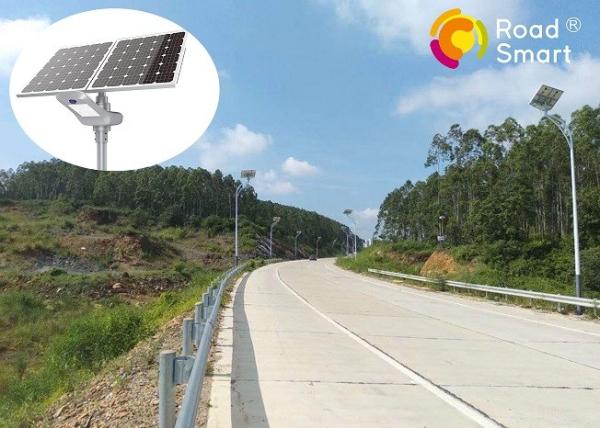

High lumen motion sensor ip65 waterproof lamp outdoor all-in-one integrated 70W solar street light

Type: RS-FH150

Panel Power: 150w

Panel Material: Mono Crystalline Silicon

Solar cell efficiency: 19-20%

Lithium battery: 610WH

Charge cycle times: 2000 times

Luminous flux: 9100lm-9300lm

Light output: 50w

LED qty: 150pcs

LED chip: Bridgelux

Color temperature: 6000K

CRI: >70Ra

Material of lamp head: Aluminum alloy

Elevation angle: 17 (attention to Dialux use)

Lifespan: 50000hrs

Light control voltage: 5V

Light distribution: Batwing lens with polarized light

Beam angle: X-axis:158 Y-axis:62

Lighting time(full charged): 3-4 rainy days

Operation temperature: -20~60

Top diameter of pole: 80mm

Mounting height: 7-12m

Installation spacing: 20-40m

1. Monocrystalline solar panel 100W-240W, efficiency of more than 19%

2. Aluminum frame, tempered glass.

3. 5 years warranty for solar panels; 20 years power generation capacity

High-performance parameters:Using microwave sensor and high-efficiency LED chip.The light brightness can be adjusted automatically. Energy saving 75% than traditional street light.

1.High power LED light source with more than 80000 hours lifetspan

2.White color,180lm/w,30Lux,6500K, IP65,120 degree angle

3.Lamp housing:die-casting aluminum+IP65,lifespan:more than 20 years

4.Over-charging/discharging protection, reverse-connection protection

The integrated solar street lamp combines the best combination of green energy today (solar energy, LED light source, lithium battery). With the use of micro-controller, microwave sensor and other excellent technology.Combined with simple integrated structure design. Realize the requirements of low power consumption, high brightness, long service life and maintenance-free perfectly .While having better waterproof and heat dissipation performance.
