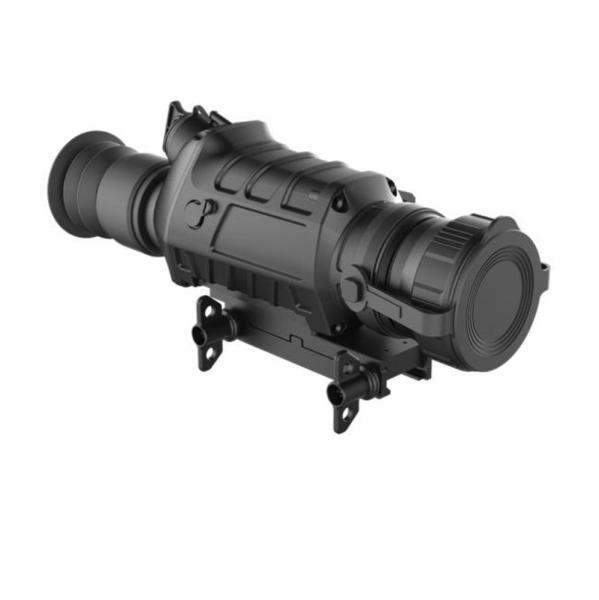

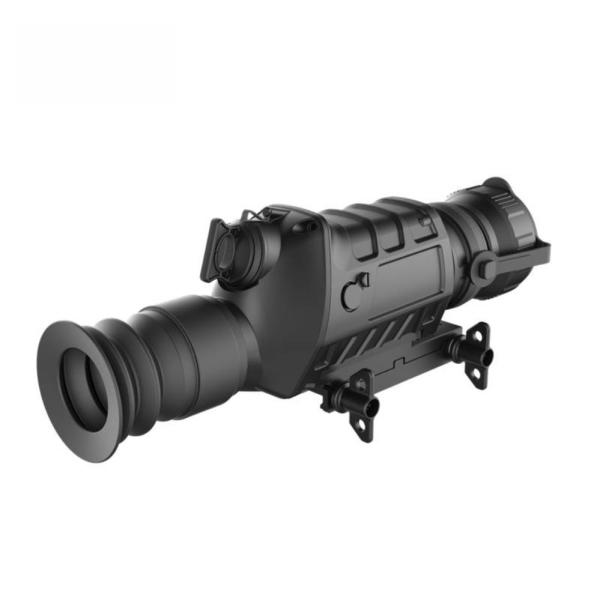

TS450 Thermal Imaging Gun Sights With 400*300 IR Resolution And 50mm Focus Length
TS450 Thermal Imaging Gun Sights With 400*300 IR Resolution And 50mm Focus Length
TS450 Thermal Imaging Gun Sights With 400*300 IR Resolution And 50mm Focus Length
TS450 Thermal Imaging Gun Sights With 400*300 IR Resolution And 50mm Focus Length
TS450 Thermal Imaging Gun Sights With 400*300 IR Resolution And 50mm Focus Length
TS450 Thermal Imaging Gun Sights With 400*300 IR Resolution And 50mm Focus Length
TS450 Thermal Imaging Gun Sights With 400*300 IR Resolution And 50mm Focus Length
TS450 Thermal Imaging Gun Sights With 400*300 IR Resolution And 50mm Focus Length
Specifications
Place of Origin :
China
Brand Name :
OEM, ODM All Available
Certification :
CE,FC,RoHS
MOQ :
10
Delivery Time :
3~7
Payment Terms :
T/T. L/C, Western Union, Money Gram
Supply Ability :
30000PCS/Month
Type :
Rifle Scope
Size: :
230*90*75mm
Weight: :
≤660g
Magnification :
3.3~13.2X
Focal Length: :
50mm
Frame Rate: :
50Hz
IR Detector :
400*300 @17μm, Vox
Effective Visual Distance :
3000 meters
Description

TS450 Thermal Imaging Gun Sights With 400*300 IR Resolution And 50mm Foucus Length

Parameter:

Model
TS425
TS435
TS450
Detector
Detector Type
400×300 @17μm, VOx
Spectral
8μm～14μm
NETD
≤50mk
Lens
Focal Length
25mm F1.1
35mm F1.2
50mm F1.2
Focusing
Manual Focus
FOV
14.9°×11.2°
10.7°×8.0°
7.5°×5.6°
Display
Display
Color 0.39-inch OLED Display, 1024×768
Eyepiece
Exit pupil distance 48mm, eyepiece magnification 14×
Magnification
1.6~6.4×
2.3~9.2×
3.3~13.2×
Video Output System
PAL 50Hz
External Video Display
Full color video output by external interface, with menu
Imaging
Frame Rate
50Hz
Digital Zoom
2×,4×
Color Palettes
White Hot, Black Hot, Red Hot 1, Red Hot 2, Red Hot 3, Green Hot, Blue Hot
Picture-in-picture
On/off,the position is adjustable
Functions
hotspot tracking
Yes
Compensation Modes
Auto Compensation / Shutter Compensation / Scene Compensation
Calibration
25m/50m/100m
Stadiametric rangefinder
1.8m/0.5m/0.25m
Gun Types Selection
6 Types
Power Supply
Battery Type
Interchangeable Li-ion battery 18650 x 1, Non-rechargeable on the device
Battery Operating Time
≥3H(Standard low temp battery,Observation status only)
≥5H(Panasonic 3400mah standard 18650 battery,Observation status only)
Interface
Video Interface
Lemo
Environmental Characteristics
Operating Temperature
-40°C-50°C
Shock
500G/1ms
Encapsulation
IP67
Certificate
RoHS,CE
Weight & Dimensions
Weight(excl battery)
660g
660g
720g
Dimensions
230mm×90mm×75mm
230mm×90mm×75mm
250mm×90mm×75mm
Package Contents
Standard
Lens cap,battery,Charger,Video cable,
Pick-up gun rack,Hard transport case,User Manual
Detection Range
Human:1.8m×0.5m
700m
1000m
1400m
Vehicle:2.3m×2.3m
1700m
2400m
3000m
Recognition Range
Human:1.8m×0.5m
350m
500m
700m
Vehicle:2.3m×2.3m
700m
1000m
1400m

Features:


1 With a 400x300 pixel TEC metal-encapsulated thermal detector, it can detect further distances and capture sharper, vivid images.

2. The TS thermal sight also has the characteristics of small size, waterproof and dustproof, strong shock resistance, strong and durable, and can perform well in any bad weather.

TS450 Thermal Imaging Gun Sights With 400*300 IR Resolution And 50mm Focus LengthTS450 Thermal Imaging Gun Sights With 400*300 IR Resolution And 50mm Focus Length
