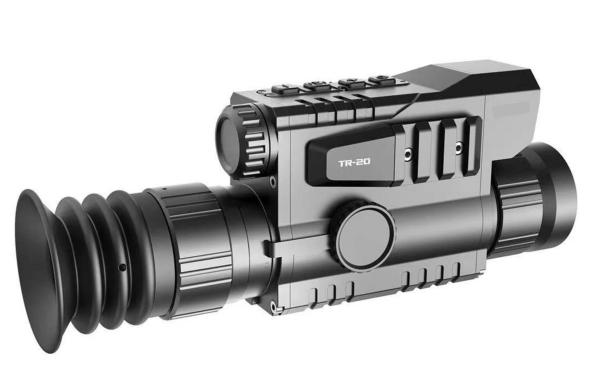

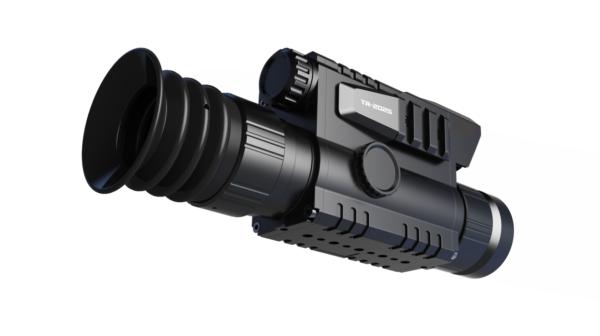

35mm Lens Handheld Thermal Imaging Night Vision Goggles Infrared Hunting Camera
35mm Lens Handheld Thermal Imaging Night Vision Goggles Infrared Hunting Camera
35mm Lens Handheld Thermal Imaging Night Vision Goggles Infrared Hunting Camera
35mm Lens Handheld Thermal Imaging Night Vision Goggles Infrared Hunting Camera
35mm Lens Handheld Thermal Imaging Night Vision Goggles Infrared Hunting Camera
35mm Lens Handheld Thermal Imaging Night Vision Goggles Infrared Hunting Camera
35mm Lens Handheld Thermal Imaging Night Vision Goggles Infrared Hunting Camera
35mm Lens Handheld Thermal Imaging Night Vision Goggles Infrared Hunting Camera
Specifications
Place of Origin :
China
Brand Name :
OEM, ODM All Available
Certification :
CE,FC,RoHS
MOQ :
10
Delivery Time :
3~7
Payment Terms :
T/T. L/C, Western Union, Money Gram
Supply Ability :
30000PCS/Month
Warranty :
3 years
Model Number :
TR20
Weight :
560G
Type :
Monocular
Effective Visual Distance :
500M
Pixel Size :
12μm
Eyerelief :
40mm
Field of View :
10.5 x 7.9
Description

35mm Lens Handheld Thermal Imaging Monocular Night Vision Goggles Infrared Hunting Camera Optics With Rangefinder

Parameter:

Model Lens Lens
TR20 25mmm 35mm
Resolution,Pixel 384×288 384×288
Refresh Rate 50Hz 50Hz
Pixel Size, micron 12μm 12μm
Objective Lens 25mm/f1.0 35mm/f1.0
Magnification 2.04 - 8.16 x 2.85 - 11.4 x
Digital zoom 2x,4x 2x,4x
Eyerelief 40mm 40mm
Field of View (HxV) 10.5 x 7.9 7.5 x 5.7
Dioptre adjustment, dpt ± 5 ± 5
Reticle Type 8-Pattern optional, or “NO reticle” 8-Pattern optional, or “NO reticle”
Reticle Color 4 colors: White, Black, Red and blue 4 colors: White, Black, Red and blue
Image Palettes White Hot / Black Hot/ red hot /green hot/ Iron red / Sky White Hot / Black Hot/ red hot /green hot/ Iron red / Sky
Default setting Yes Yes
Display Resolution 1280x960 1280x960
Built-in Red Dot indicator Yes Yes
Laser locator 1mw red dot CAL 1mw red dot CAL
Defective pixel repair Yes Yes
Hot tracking Yes Yes
Pictur in picture Yes Yes
photo & video recording Yes Yes
Wifi IOS & Android connection Yes Yes
E-compass Yes Yes
3D Gyroscope Yes Yes
Flashlight Yes Yes
Battery Type Li-ion 18650 Rechargeable Battery Replaceable Li-ion 18650 Rechargeable Battery Replaceable
Battery Life (Operating) 5 hours 5 hours
External power supply USB type c USB type c
Protection rate IP66 IP66
Operating Temperature -30℃ ... +60 ℃ -30℃ ... +60 ℃
Storage Temperature -50℃.. +70 ℃ -50℃.. +70 ℃
Size (L × W × H),mm / inch 188.8mm*51mm*74.1mm 195.3mm*51mm*74.1mm
Weight (W/o battery),Kg/ oz 560g 560g
Housing Materials Aluminum Alloy Aluminum Alloy

Features:

1.App Remote Control Real-time Internet Streaming
2.The most advanced pixel
3.Protection grade IP67

35mm Lens Handheld Thermal Imaging Night Vision Goggles Infrared Hunting Camera35mm Lens Handheld Thermal Imaging Night Vision Goggles Infrared Hunting Camera35mm Lens Handheld Thermal Imaging Night Vision Goggles Infrared Hunting Camera35mm Lens Handheld Thermal Imaging Night Vision Goggles Infrared Hunting Camera
