Outdoor Telecom Assembled Base Station Cabinet Hot Dip Galvanized Steel Material

Specifications

Brand Name :

ESTEL

Model Number :

DDTE053

Certification :

ISO9001, CE, 3C, FCC, TLC, IP55

Place of Origin :

Shenzhen, China (Mainland)

MOQ :

Price :

negotiation

Payment Terms :

L/C, D/A, D/P, T/T, Western Union, Paypal, etc

Delivery Time :

15-20 working days

Packaging Details :

wooden case

Supply Ability :

4,000 sets per month

External Dimension :

H×W×D 2000×2400×800

Structure :

assembled

Cabinet Layout :

three compartments

Heat Insulation :

PEF

Lock :

anti-theft three point

Internal Dimension :

H×W×D 1700×2350×750

Material :

galvanized steel

Cable Gland :

at cabinet bottom

Description

Outdoor Telecom Assembled Base Station Cabinet Hot Dip Galvanized Steel Material

Quick Details:

Place of Origin: Shenzhen, China (Mainland)	External Dimension: H×W×D 2000×2400×800mm Internal Dimension: H×W×D 1700×2350×750mm
Brand Name: ESTEL	Structure: double wall, with insulation, sandwich structure.
Model Number: DDTE053	Cabinet Layout: three compartments
Product Name: Integrated Outdoor Telecom Cabinet	Cabinet Lock: anti-theft three point lock
Certification: ISO9001, CE, 3C, FCC, TLC, IP55	Protection Level: IP55
Application: outdoor telecom base station	Cable Entry: at cabinet bottom
Material: galvanized steel	Illumination: DC48V LED lamp
Heat Insulation: PEF	Grounding Protection: copper bar
Color: grey (support custom made)	Cooling: AC220V air conditioner and DC48V fans
Coating: anti-corrosion outdoor powder coating	Accessories Options: PDU, rectifier system, environment monitoring system

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Paypal, etc
Supply Ability:	4,000 sets per month
Delivery Time:	15-20 working days
Packaging Details:	wooden case

1. Specifications

(1) Technical Parameters

Item	Type	Technical Parameter
Structure	Dimension	External Dimension: H×W×D 2000×2400×800mm Internal Dimension: H×W×D 1700×2350×750mm
	Layout	3 compartments
	Equipment Installation Method	19” rack
	Door	With three front doors, and special lock for outdoor cabinet (support padlock)
	Material	Galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate; double walls.
	Heat Insulation	There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF.
	Structure	Welded or Assembled
	Ingress Protection	IP55
Temperature Control	Cooling	AC220V air conditioner and DC48V fans
Lightning Proof	Grade B lightning proof	Nominal: 60KA, Max.: 100KA
Lighting	LED lamp	48V LED lamps (immovable), with protective circuit breaker
Temperature	Temperature	Working Temperature: -40°C ~ +55°C
		Storage Temperature: -50°C ~ + 70°C
		Transport Temperature: -50°C ~ +70°C
Humidity	Relative Humidity	5% ~ 100%
Pressure	Air Pressure	62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity	Solar Radiation Intensity	1120 ×(1±5%)W/m2

(2) Accessories List

No.	Item	Quantity	Unit	Specs
1	Outdoor Telecom Cabinet	1	Set	(1) External Dimension: HWD 20002400800mm Internal Dimension: HWD 17002350750mm (2) 3 compartments: the left part is battery compartment, the middle and the right parts are equipment compartments; (3) With three front door, and special lock for outdoor cabinet (support padlock) ; (4) Material: galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate;
2	Air Conditioner	3	Set	(1) Cooling capacity: 1.2KW, AC220V, 50HZ; Model:TC06-120JFH/01, Quantity:2 sets (2) Cooling capacity: 500W, AC220V, 50HZ; Model:TC06-50JFH/01 Quantity:1 set
3	Auxiliary Direct Ventilation Fans	5	PC	12038 DC48V
4	Environment Monitoring Unit	1	Set	1U, Model: SM2400
5	Water Sensor	1	PC
6	Smoke Sensor	1	PC
7	Temperature and Humidity Sensor	2	PC
8	Door Sensor	6	PC	Each door includes two door sensors. One for controlling LED lamp, the other for open door alarm
9	LED Lamp	3	PC	DC48V
10	Embedded Telecom Power System (UPS/Rectifier)	1	Set	3U,DC48V, 120A, 5760W;
11	Power Distribution Unit	1	Set	Grade B Lightning Proof AC Input: 63A/2P 1; AC Output: 16A/1P4; DC Output: 16A/1P*4
12	DDF	1	Set
13	ODF	1	Set	24 cores, wiring terminal box*1

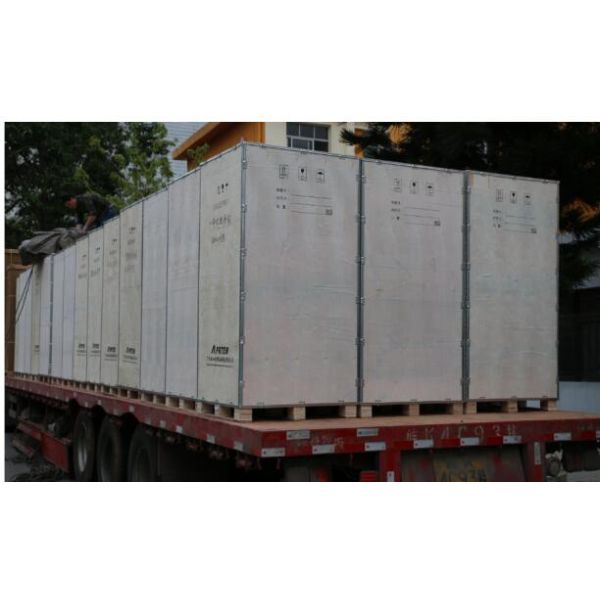

14	Package	1	Set	Wooden Case

2. Application

The DDTE053 Three Compartments Outdoor Telecom Cabinet With AC Air Conditioner And Distribution Frame is mainly used in wireless communication base station, such as 3G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.

3. Features

3.1 The cabinet is dustproof, sunproof and rainproof, which is suitable for outdoor environment.

3.2 -48V LED lamps is installed inside the cabinet.

3.3 The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There’re entrance holes individually for power cable, signal cable and optical cable.

3.4 All the cables used in the cabinet are made from flame retardant materials.

3.5 Material: hot dip galvanized steel

3.6 Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.

3.7 Cabinet load bearing: ≥600kg

3.8 Ingress Protection: IP55

3.9 Flame retardance: comply with GB5169.7 test A

3.10 Insulation resistance: the insulation resistance between grounding devices and cabinet

body parts is not lower than 2X104M/500V(DC).

3.11 Withstand voltage: the withstand voltage between grounding devices and cabinet body

parts is not lower than 3000V(DC)/1min.

3.12 Mechanical strength: each surface can bear upright pressure＞980N; after the door is open, its outer end can bear upright pressure ＞200N.

4. Description

The cabinet is three compartments cabinet. The cabinet cooling use air conditioner and fans to ensure the equipments operate normally at stable temperature range, so as to make the service life of the equipments much longer and their performance more stable.

4.1 Cabinet Material

The cabinet is made of galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm. There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF, heat insulation coefficient: 0.035W/m·K. The cabinet is assembled type.

4.2 Cabinet Structure

The cabinet includes tray. The cabinet includes three air conditioners, installed on front doors.

4.3 Cabinet Door and Lock

The cabinet includes three front doors. The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock.
