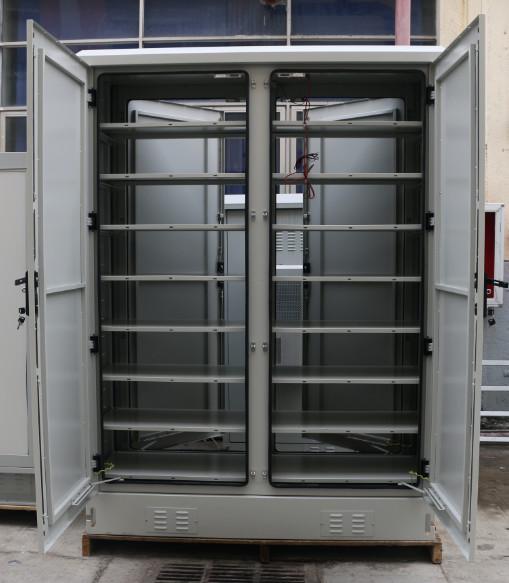

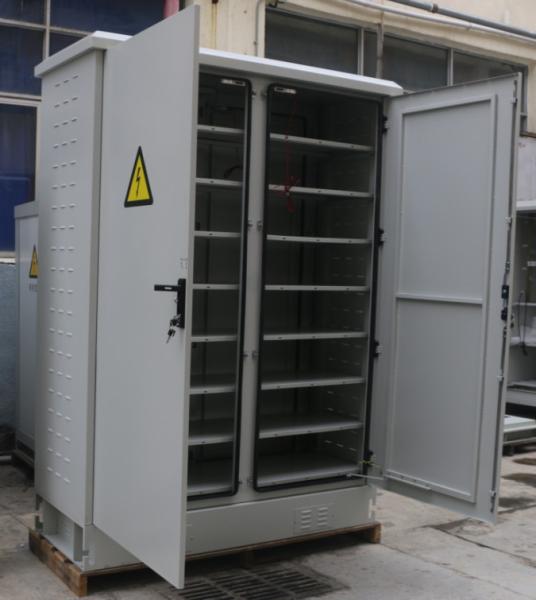

Single Wall Two Bay Outdoor Battery Enclosure With 2 Layers Battery Bracket Front Doors
Single Wall Two Bay Outdoor Battery Enclosure With 2 Layers Battery Bracket Front Doors
Single Wall Two Bay Outdoor Battery Enclosure With 2 Layers Battery Bracket Front Doors
Single Wall Two Bay Outdoor Battery Enclosure With 2 Layers Battery Bracket Front Doors
Single Wall Two Bay Outdoor Battery Enclosure With 2 Layers Battery Bracket Front Doors
Single Wall Two Bay Outdoor Battery Enclosure With 2 Layers Battery Bracket Front Doors
Specifications
Brand Name :
ESTEL
Model Number :
ET16066220-S
Certification :
ISO9001, CE, 3C, FCC, TLC, IP55
Place of Origin :
Shenzhen, China (Mainland)
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C,D/A,T/T, Western Union, Paypal, etc
Supply Ability :
5,000 sets per month
Delivery Time :
10-15 working days
Packaging Details :
wooden case
Coating :
anti-smoke anti-corrosion outdoor powder coating
Material :
singel wall galvanized steel, 1.2mm
Color :
grey (support custom made)
Cabinet Lock :
anti-theft three point lock
Protection Level :
IP55
External Size :
H*W*D 2000*1400*800mm
Cooling :
Direct ventilation
Installation Method :
2 layers of battery shelves
Door :
two front doors and two back doors
Description

Single Wall Two Bay Outdoor Battery Cabinet With 8 Layers Shelves Two Front Doors Two Back Door

(1) Technical Parameters

Item Type Technical Parameter
Structure Dimension External Dimension H*W*D 2000×1400×800mm
Layout Two compartments
Equipment Installation Method Battery shelf, total 2 layers
Door With two front doors and two back doors, and anti-theft three point lock for outdoor cabinet (support padlock)
Material Single wall, galvanized steel, thickness is 1.2mm
Structure Assembled and welded
Ingress Protection IP45
Temperature Control Cooling Direct ventilation
Lighting LED lamp 48V LED lamp
Temperature Temperature Working Temperature: -40°C ~ 55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1124 × (1±5%)W/m2

(2) Accessories List

No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1)External Dimension H*W*D 2200×1600×660mm

(2) One compartment;

(3) With two front doors and two back doors, and anti-theft three point lock for outdoor cabinet (support padlock)

(4) Material: Single wall, galvanized steel, thickness is 1.2mm

(5) Including grouding copper bar and cable entry
2 LED Lamp 1 PC DC48V
3 Door Sensor 1 PC Used for controlling LED lamp on/off
4 Package 1 Set Wooden Case

Single Wall Two Bay Outdoor Battery Enclosure With 2 Layers Battery Bracket Front Doors

Single Wall Two Bay Outdoor Battery Enclosure With 2 Layers Battery Bracket Front Doors

Single Wall Two Bay Outdoor Battery Enclosure With 2 Layers Battery Bracket Front Doors

Single Wall Two Bay Outdoor Battery Enclosure With 2 Layers Battery Bracket Front Doors

Single Wall Two Bay Outdoor Battery Enclosure With 2 Layers Battery Bracket Front Doors

Factory Production Line

Single Wall Two Bay Outdoor Battery Enclosure With 2 Layers Battery Bracket Front Doors

Single Wall Two Bay Outdoor Battery Enclosure With 2 Layers Battery Bracket Front Doors

Single Wall Two Bay Outdoor Battery Enclosure With 2 Layers Battery Bracket Front Doors

Single Wall Two Bay Outdoor Battery Enclosure With 2 Layers Battery Bracket Front Doors

Single Wall Two Bay Outdoor Battery Enclosure With 2 Layers Battery Bracket Front Doors

Single Wall Two Bay Outdoor Battery Enclosure With 2 Layers Battery Bracket Front Doors
