Specifications
Brand Name :
ESTEL
Model Number :
ETA003DC
Certification :
ISO9001, CE, 3C, FCC, TLC
Place of Origin :
Shenzhen, China (Mainland)
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
16,000 sets per month
Delivery Time :
7-10 working days
Packaging Details :
carton + wooden case + pallet
Power Supply voltage Range :
DC45~59 V
Cooling Method :
compressor, active cooling
Application :
Cooling for telecom cabinet, base station room
Installation :
Side mount
Working Temperature Range :
-15 - +55
Description

Energy Saving Variable Frequency 300W DC Air Conditioner With R134a Refrigerant MODBUS Protocol IP55

Product Feature

  • Designed with all DC driven components like fans, compressor.
  • Precise temperature control through inverter digital regulation of compressor, fans.
  • Wide power supply voltage range: DC45~59 V
  • A comprehensive self-protection design to realize partial load starting, partial load operation at severe ambient condition
  • Low power consumption design with EER≥3.5
  • Energy saving reach to 50% comparing with A.C. version product
  • Strict process control and international brand parts deployed to ensure high quality and reliability of product
  • IP55 protection grade, suitable for T3 high temperature working condition, using environmentally friendly R134a refrigerant gas
  • The best choice for solar / wind / battery power supply cooling demand
  • Multiple self protection design & Interchangeable monitoring software interface, RS485 communication through MODBUS protocol.

Technical Data

Product Model ETA003DC
Dimensions, Weight & Mount
External Dimensions (H x W x D) MM 400x240x150
Weight KG 7
Mounting Method Side Mounting
Application Outdoor
Environmental Protection & Performance
Working Temperature Range ºC -15 to +55
Noise Level dB(A) 60
IP Grade IP IP55
Refrigerant R134a
CE & RoHS Compliant YES
Cooling Capacity & Operational Data

Cooling Capacity@L35 / L35

Cooling Capacity@L35 / L55

W

W

300

180
Internal Airflow M3/h 100
Power Consumption@L35/L35 W 130
Power Consumption@L35/L55 W 160
Power, Frequency & Range
Input Voltage VDC DC48V
Frequency HZ ------

Cooling Performance

Item Condition Cooling Capacity(W) Power Consumption(W) EER
Ambient Temperature(ºC) Return Temperature(ºC) ETA003DC ETA003DC ETA003DC
1 35 35 300W 130W 2.3
2 55 35 180W 160W 1.1

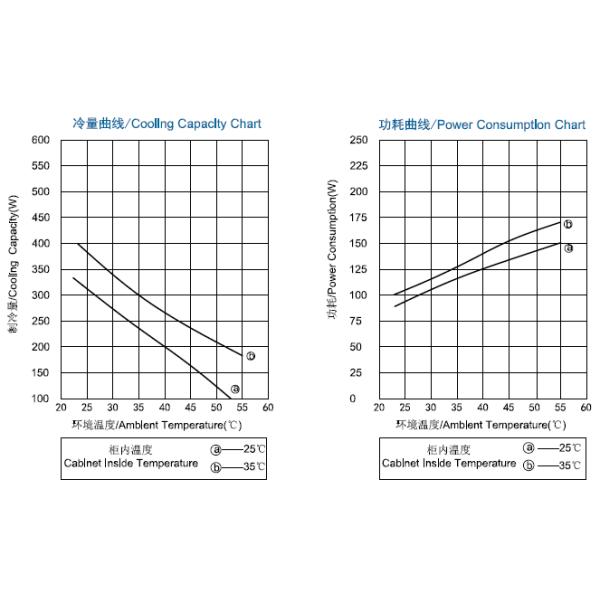

Cooling Capacity Chart and Power Consumption Chart

Energ - Saving Outdoor Cabinet Air Conditioner 300W DC With R134a Refrigerant MODBUS

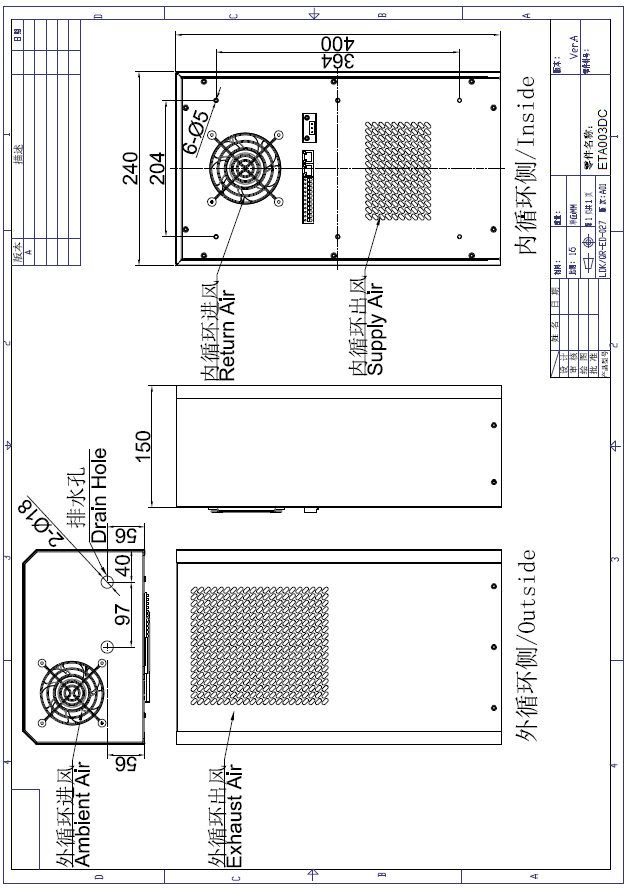

Dimension

Energ - Saving Outdoor Cabinet Air Conditioner 300W DC With R134a Refrigerant MODBUS

Energ - Saving Outdoor Cabinet Air Conditioner 300W DC With R134a Refrigerant MODBUSEnerg - Saving Outdoor Cabinet Air Conditioner 300W DC With R134a Refrigerant MODBUS

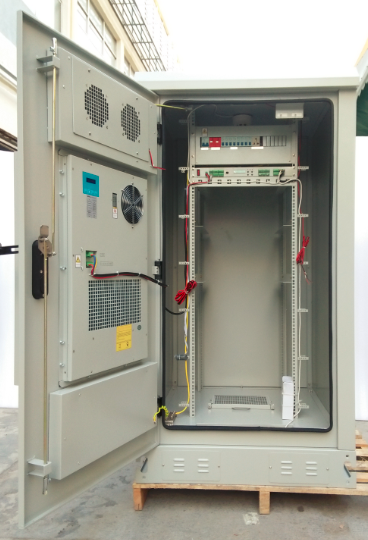

Embedded Installation Used In Telecom Cabinet

Energ - Saving Outdoor Cabinet Air Conditioner 300W DC With R134a Refrigerant MODBUSEnerg - Saving Outdoor Cabinet Air Conditioner 300W DC With R134a Refrigerant MODBUS

Energ - Saving Outdoor Cabinet Air Conditioner 300W DC With R134a Refrigerant MODBUS

Production Process

Energ - Saving Outdoor Cabinet Air Conditioner 300W DC With R134a Refrigerant MODBUS
