Specifications
Brand Name :
estel
Model Number :
ET14690200
Certification :
ISO9001
Place of Origin :
China
MOQ :
1PC
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
Supply Ability :
2000PCS per month
Delivery Time :
25 days
Packaging Details :
wooden case
Application :
Outdoor
Layout :
Two bay
Installation :
19" rail and battery shelf
Cooling :
Air conditioner and fan
Material :
High quality galvanized steel
Protection :
IP55
Color :
Grey
External Dimension: :
W×D×H 1460×900×2000mm
Description

Two Bay Outdoor Power Cabinet With High Strength Anti-theft Design Air Conditioner Cooling

1. Application

The ET14890200 Two Bay Outdoor Power Cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.

2. Features

(1) The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.

(2) Cabinet cooling: fans and air conditioner. (Other cooling option: heat exchanger).

(3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlet individually for power cable, signal cable and optical cable.

(4) All the cables used in the cabinet are made from flame retardant materials.

3. Technical Parameters

Item Type Technical Parameter
Structure Dimension External Dimension: W×D×H 1460×900×2000mm
Layout One compartment, two bays. For each bay, the upper part is 9U19" installation rail,lower part is 3 battery shelves.
Equipment Installation Method 19” rack and battery shelf
Door With two front doors, and anti-theft lock for outdoor cabinet.
Material Single wall, 1.5mm thick galvanized steel; with heat insulation.
Ingress Protection IP55
Temperature Control Cooling air conditioner and fans
Lighting LED lamp 48VDC LED lamps
Temperature Temperature Working Temperature: -40°C ~ +55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2
4. Accessories List
No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 PC External Dimension: W×D×H 1460×900×2000mm
2 Air Conditioner 2 PC

(1) Power Supply: DC48V;

(2) Cooling Capacity:1000W;

(3) Variable frequency;

(4) One air conditioner installed on left door, the other installed on right door.

(5) Including controller to interchange between air conditioner 1 and air conditioner 2. When Aircon 1 is running Aircon 2 will be at rest. On the next run aircon 2 will run and aircon 1 be at rest. The Aircon will only run when the temperatures are too high for FAN cooling.
3 Fan 2 PC DC48V, 50W. temperature adjustable. Installed at the top of the cabinet door. One on the left door and the other on the right door.
4 Smoke Sensor 2 PC
5 Door Sensor 2 PC
6 LED Lamp 2 PC DC48V
7 LED Lamp Switch 2 PC For controlling LED lamp on/off
8 Package 1 PC Wooden Case

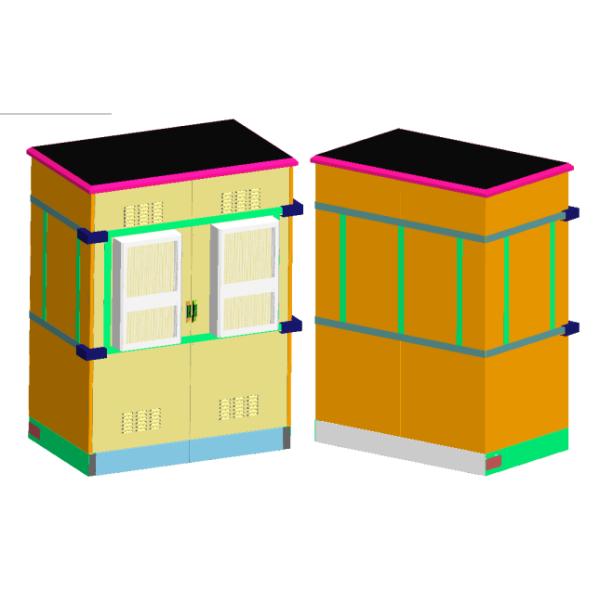

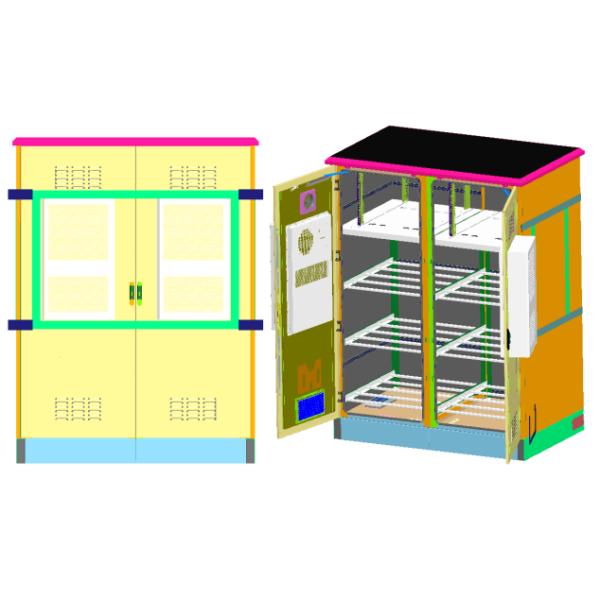

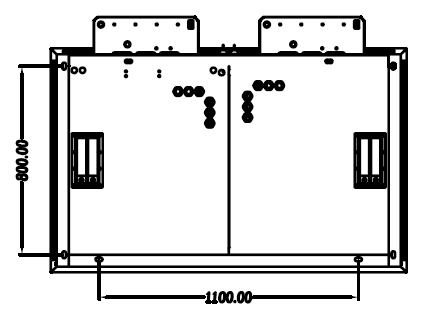

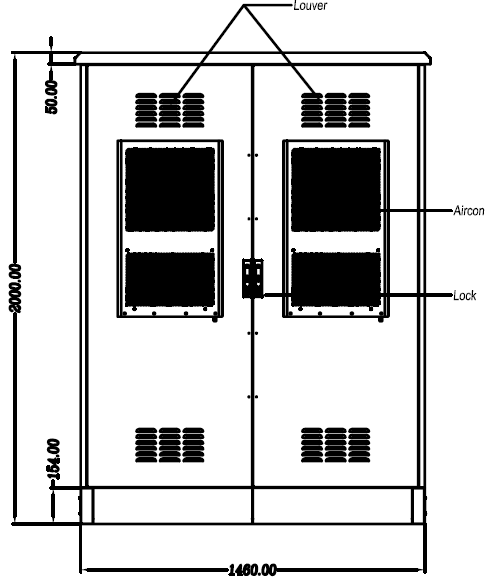

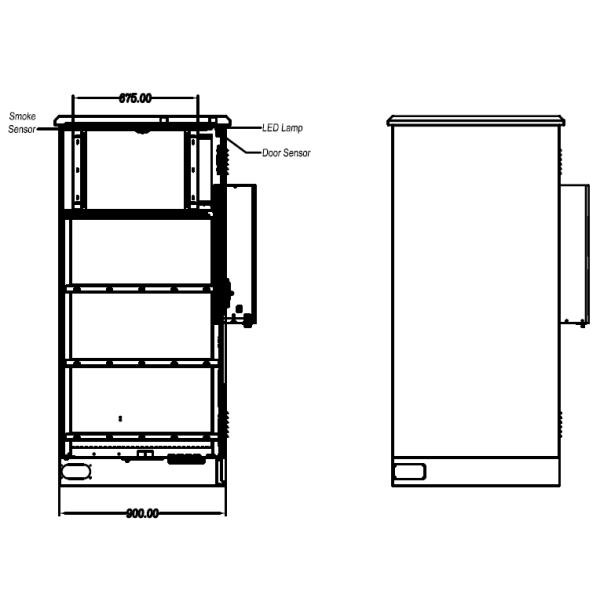

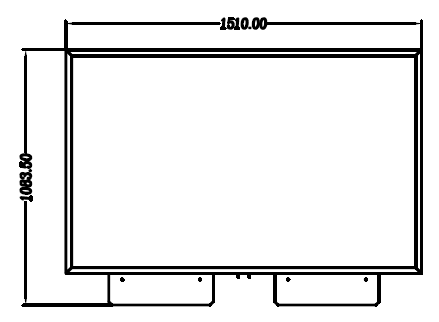

5. Cabinet Dimension

External Dimension: W×D×H 1460×900×2000mm

Two Bay Outdoor Base Station Cabinet High Strength Air Conditioner Cooling Anti Theft Design

Two Bay Outdoor Base Station Cabinet High Strength Air Conditioner Cooling Anti Theft DesignTwo Bay Outdoor Base Station Cabinet High Strength Air Conditioner Cooling Anti Theft Design

Two Bay Outdoor Base Station Cabinet High Strength Air Conditioner Cooling Anti Theft Design

Two Bay Outdoor Base Station Cabinet High Strength Air Conditioner Cooling Anti Theft Design

Two Bay Outdoor Base Station Cabinet High Strength Air Conditioner Cooling Anti Theft Design

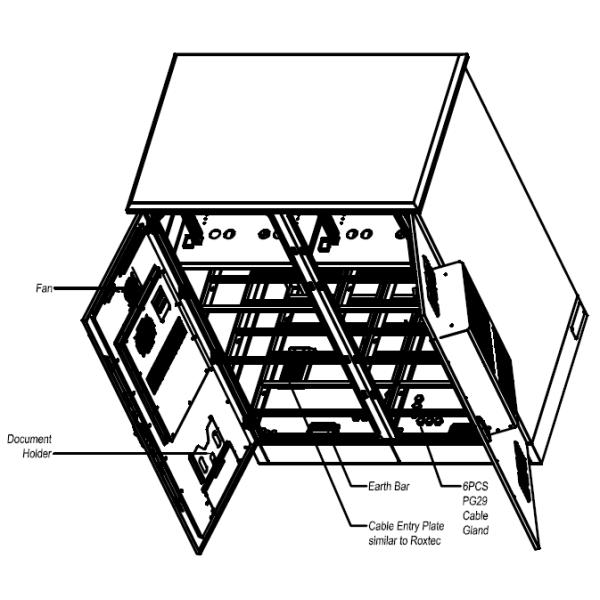

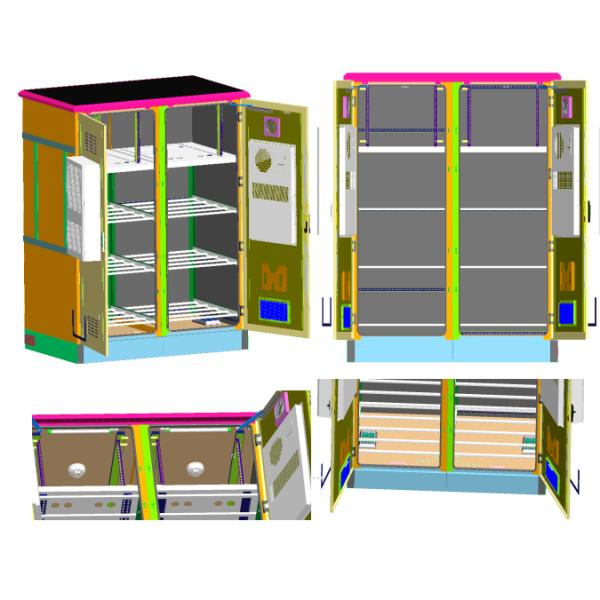

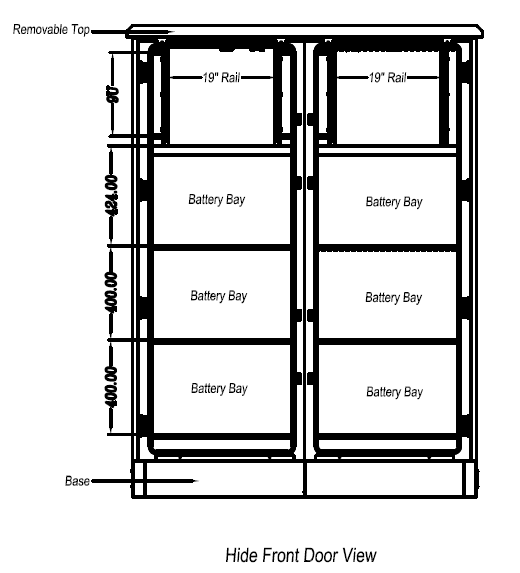

6. Cabinet Layout

Two Bay Outdoor Base Station Cabinet High Strength Air Conditioner Cooling Anti Theft Design

Two Bay Outdoor Base Station Cabinet High Strength Air Conditioner Cooling Anti Theft Design

Two Bay Outdoor Base Station Cabinet High Strength Air Conditioner Cooling Anti Theft Design

7. Gold Belt Anti-theft Design

High strength steel structure, anti pry and anti shear

Bolt connection and protection to increase the difficulty of prying and shearing

Lock protection to avoid damage to lock

Ingenious structure, can protect the cabinet lock demolitions

The difficulty of cabinet theft is greatly increased
