Specifications
Brand Name :
estel
Model Number :
ET14570160-2B
Certification :
ISO9001
Place of Origin :
China
MOQ :
1PC
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
Supply Ability :
2000PCS per month
Delivery Time :
25 days
Packaging Details :
wooden case
Application :
Outdoor
Layout :
Two bay
Installation :
19" rail and battery shelf
Cooling :
Air conditioner and emergency fan
Material :
High quality galvanized steel
Protection :
IP55
Color :
Grey
Space :
30U per bay
Description

30U Two Bay Outdoor Base Station Cabinet

ET14570160-2B

Summary

The outdoor telecom cabinet ET14570160-2B is a two bay cabinet. Left side is 19” rail, 30U space; right side is 12U 19” rail and two battery shelves, battery shelf height can be designed according to client’s battery size. Cabinet cooling use air conditioner and fan to keep a stable working temperature for equipments and battery inside the cabinet.

The outdoor cabinets are widely used for Telecom, Power, Electricity and so on, in 4G and coming 5G, smaller size outdoor cabinet will be more and more used to substitute the shelter of the Base Station, also used for the broadband and optical fiber hub. We provide the Outdoor Cabinet, and solution integrated with temperature controlling, power supply, monitoring systems and so on, customized with enough discussion with customers, the users only need to put main equipment inside.

Features

● Two front doors, easy access to inside equipments

● Anti-corrosion powder coating

● Left compartment for installing standard 19” equipments, right compartment for installing 19” equipments and batteries.

● IP55

● Cooling by air conditioner and emergency fan, including fan temperature controller, temperature adjustable. -48VDC and 220VAC air conditioners optional

● High integration, compact structure, easy installation and migration on later stage

● Anti-theft lock, specially used for outdoor cabinet

● Full protection: door sensor, smoke sensor, water sensor, temperature & humidity sensor and tilt & shock sensor. Environmental monitoring system provides alarm.

● -48VDC LED light is switched on during the door being opened

● Custom made power distribution unit

Technical Parameters

Configuration Item Technical Parameter
Cabinet Body Model ET14570160-2B
Size External Size: 1600mm×1450mm×700mm(H×W×D)
Component The whole cabinet is composed of three parts: top cover, cabinet body and base. The installation method is floor mounted.
Material Galvanized steel
Structure

● Single wall, with insulation (Double wall with insulation optional)

● Two front doors

● Anti-theft lock mechanism

● Door stopper is installed on the inside of the cabinet door

● Door with good sealing, waterproof and dustproof

● Include standard 19“ rack inside the cabinet, high compatibility. Battery shelf size can be custom made

● Equipped with cable manager

● Cable inlets at the bottom of cabinet
Surface Treatment Anti-corrosion coating
Color Light grey
Ingress Protection IP55
Working Temperature -40°C～+75°C
Cooling Method Air Conditioner

Cooling Capacity: 1.5KW

Power Supply: 220VAC, 50Hz
Heat Exchanger optional
Fan -48VDC, temperature adjustable
Power Supply PDU

Grade B lightning proof;

AC Input: 63A/2PX1;

AC Output: 16A/1PX4;

DC Output: 16A/1PX4.

PDU can be custom made
Monitoring Environment Monitoring Unit

-48VDC

Communication port: RS485, TCP/IP, SNMP optional
Smoke Sensor Monitor smoke status inside cabinet and provide real time alarm.
Tilt & Shock Sensor Monitor vibration of cabinet and provide real time alarm.
Water Sensor Monitor water status inside cabinet and provide real time alarm.
Door Sensor Monitor door open status inside cabinet and provide real time alarm.
Temperature & Humidity Sensor Monitor temperature and humidity inside cabinet and provide real time alarm.
Other Illumination LED light, -48VDC

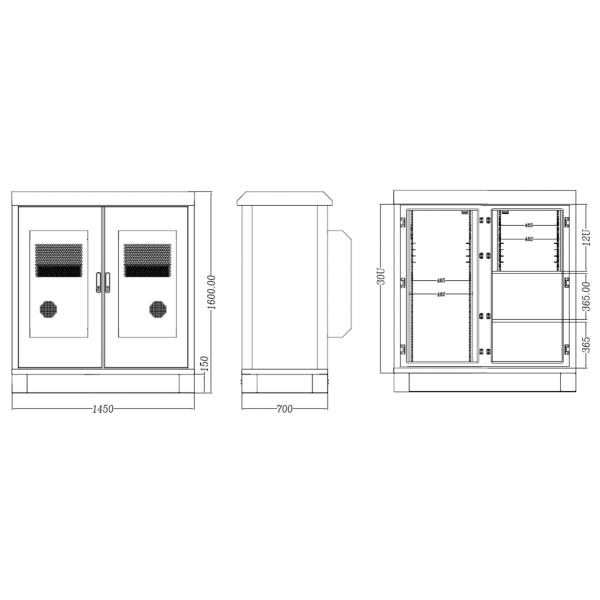

Dimension Diagram

30U Two Bay Base Station Cabinet Aircon Cooling IP55 For Commmunication Equipment
