IP65 16U outdoor server rack cabinet Galvanized Steel Single wall enclosure

1. Brief Description Of outdoor server rack cabinet

Outdoor cabinets are designed to protect equipment from a range of environmental factors that can cause damage or malfunctions. Here are some ways that outdoor cabinets protect equipment:

1. Weatherproofing: Outdoor cabinets are often made from materials that are resistant to rain, snow, wind, and extreme temperatures. The cabinets are designed to keep water, dust, and other debris from entering the cabinet and damaging the equipment inside.

2. Cooling and ventilation system: These systems may include fans, vents, or air conditioning units. The cooling and ventilation system helps to maintain a consistent temperature inside the cabinet, which can prevent equipment from overheating and malfunctioning.

3. Insulation: In some cases, outdoor cabinets may be insulated to protect sensitive equipment from extreme temperatures and reduce the risk of condensation forming inside the cabinet.

4. Security: our outdoor cabinets come with locking mechanisms to prevent unauthorized access to the equipment stored inside. This can help to protect the equipment from theft and vandalism.

5. Cable management: Outdoor cabinets may have cable management systems to organize and protect cables that are connected to the equipment stored inside. This can help to prevent damage to the cables and ensure that the equipment functions properly.

2. Feature Of outdoor server rack cabinet

• Ingress protection is IP65
• Made of heavy gauge galvanized material.
• Front door use standard three-point anti-theft lock. The door lock forms an upper, middle and lower three-point locking structure. For the cabinet with large area, the locking effect is safe and reliable.
• Standard 19 inch mounting rails.
• It is installed in the ground root or above ground column base system by "direct burying"
• Cable entry from the bottom of the cabinet

3. Specification Of outdoor server rack cabinet

4. Common materials used to make outdoor cabinets:

• Stainless steel: Stainless steel is a popular material for outdoor cabinets because it is highly resistant to rust, corrosion, and weathering. It is also easy to clean and maintain, making it a good choice for applications where hygiene is important.
• Aluminum: Aluminum is another popular material for outdoor cabinets because it is lightweight, strong, and resistant to corrosion. It is also a good conductor of heat, which can be beneficial for applications where heat dissipation is important.
• Powder-coated steel: Powder-coated steel is steel that has been coated with a layer of paint that is baked on at high temperature. This coating provides a durable and weather-resistant finish that can protect against rust and corrosion.

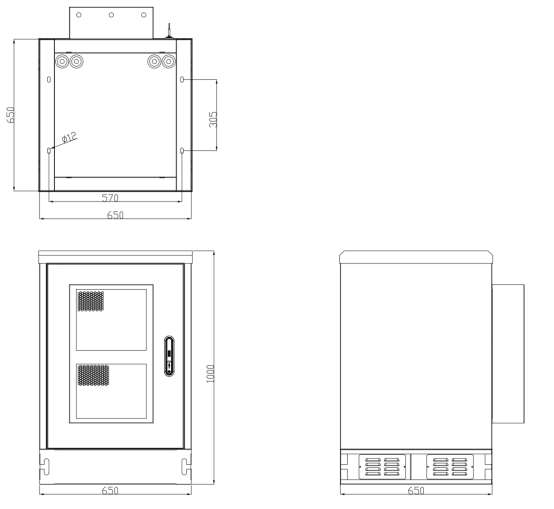

5. ​Dimension and Position of installation holes at cabinet base are as follows:

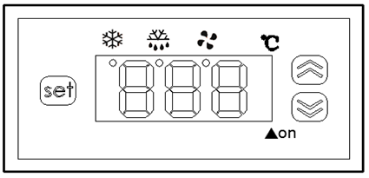

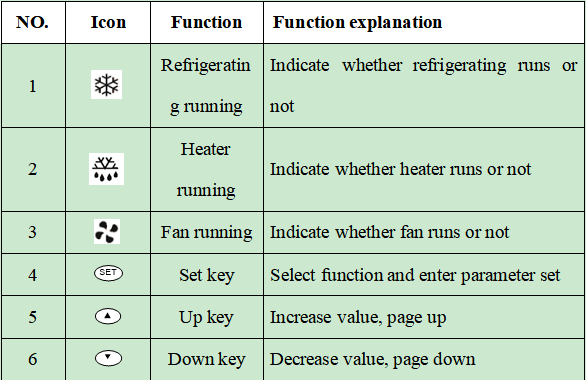

6. Air conditioner Display interface

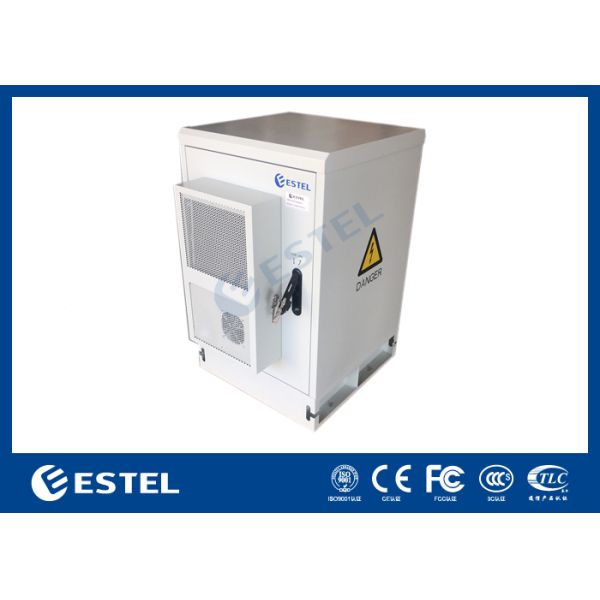

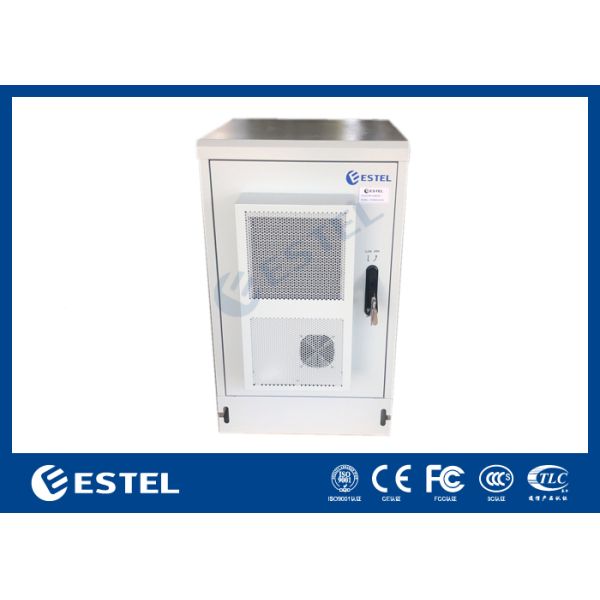

7. Cabinet Picture
