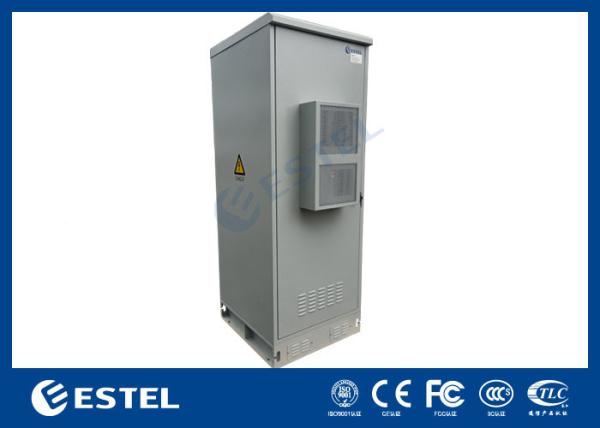

Waterproof 38U Single Wall Outdoor Electrical Enclosures Cabinets With Air Conditioner

1. Outdoor Cabinet Structure

(1) External Dimension W×D×H 750×750×2000mm

(2) One compartment, 38U free space

(3) One front door; with special lock for outdoor cabinet (support padlock)

(4) Material: Galvanized steel; single wall, thickness: 1.2mm, with 20mm PEF heat insulation.

(5) Surface finishing: Degreasing, pickling, phosphoric wash, cleaning, and power coated.

2. Weatherproof Telecom Cabinet Features

- Material: good quality Galvanized steel

- Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.

- Cabinet load bearing: ≥400kg

- Ingress protection: IP55

- Flame retardance: comply with GB5169.7 test A

- Mechanical strength: each surface can bear upright pressure >980N; after the door is open, its outer end can bear upright pressure >200N.

- Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2×104M/500V(DC).

- Withstand voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V(DC)/1min.

3. Electrical Enclosure Table 1 Standard Compliance

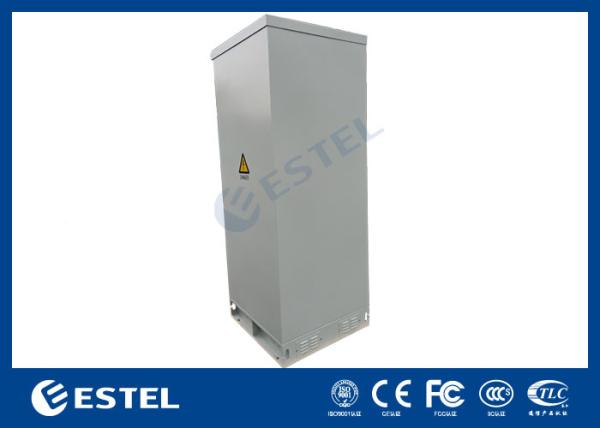

4. Floor Mounted Cabinet Pictures and Diagram

5. Cabinet with Air Condtioner Technical Parameters

6. Cabinet Accessories List

7. LED Lamp And Door Sensor

LED lamp is installed at the top of the cabinet.

8. Floor mounting

• The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
• The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
• Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.

9. Cooling

Air conditioner

Cooling capacity: 600W.

Power Supply: 48VDC.

Installed on front door.

10. Packing and Shipping

Cabinet package use free fumigation woodcase which is suitable for export. This package is anti moisture, anti impact and srong to ensure safe transportation.
