1 Compartment 27U 19 Rack Outdoor Electronics Cabinet
1 Compartment 27U 19 Rack Outdoor Electronics Cabinet
1 Compartment 27U 19 Rack Outdoor Electronics Cabinet
1 Compartment 27U 19 Rack Outdoor Electronics Cabinet
Specifications
Brand Name :
ESTEL
Model Number :
132060614050001
Certification :
ISO9001, CE, 3C, FCC, TLC, IP55
Place of Origin :
Shenzhen, China (Mainland)
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, L/C,D/A, Western Union, Paypal, etc
Supply Ability :
8,000 sets per month
Delivery Time :
15-20 working days
Packaging Details :
Wooden case
Material :
Galvanized steel
Protection level :
IP55
Cooling system :
Air conditioner
Structure :
One compartment
Cabinet Door :
One front door and one back door
Cable Entry :
From cabinet bottom
Door lock :
Anti-theft three point lock
Certificates :
CE
Description

19 Inch Rack 27U Air Conditioner Cooling Outdoor Telecom Cabinet One Front Door

1. Cabinet Instruction

The outdoor cabinets are widely used for Telecom, Power, Electricity and so on, in 4G and coming 5G.This series outdoor cabinet will be more and more used to substitute the shelter of the Base Station, also used for the broadband and optical fiber hub. We provide the Outdoor Cabinet, and solution integrated with temperature controlling, power supply, monitoring systems and so on, customized with enough discussion with customers, the users only need to put main equipment inside.

2. Cabinet Parameters

Item Type Technical Parameter
Structure Dimension

External Dimension W×D×H 650×650×1400mm
Layout One compartment
Equipment Installation Method 19” standard rack,27U
Door One front door and one back door ,with three point lock for outdoor cabinet (support padlock)
Material

Galvanized steel,double wall

Structure Assembled
Ingress Protection IP55
Temperature Control Cooling Air conditioner and fans
Lighting LED lamp 48V LED lamp
Temperature Temperature Working Temperature: -40°C ~ +55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1124 × (1±5%)W/m2

3. Cabinet Features

  • External Dimension is W×D×H 650×650×1400mm
  • Galvanized steel,double wall
  • Anti-theft three point lock
  • The cabinet includes 19” standard installation rack.
  • The cabinet cooling uses one air conditioner.
  • Including -48VDC illumination lamp.
  • The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding.
  • At the bottom of the cabinet, there are entrance holes individually for power cable, signal cable and optical cable.
  • IP55 protection level.

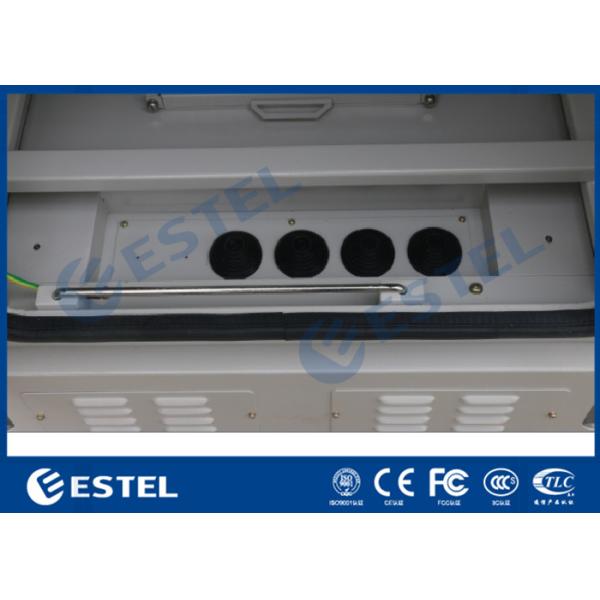

4. Cable Inlet

All feeder cable and other external cables all use bottom wiring method.

1 Compartment 27U 19

5. Cooling System

There is one 1000W cooling capacity air conditioner installed on the front door of the cabinet.

Threre are two fans installed on the front door of the cabinet.

1 Compartment 27U 19

6. Cabinet Package

Wooden case with pallets

1 Compartment 27U 19
