Specifications
Brand Name :
ESTEL
Model Number :
ET171139134
Certification :
ISO9001
Place of Origin :
China
MOQ :
1PC
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
1800PCS per month
Delivery Time :
15 to 20 days
Packaging Details :
Wooden Case with Pallet
Dimension :
1340mm×1711mm×1394mm (H×W×D)
Cooling Method :
Air conditioner, 2 sets, on two front doors
Material :
4.5mm 3CR12 stainless steel+20mm PEF
Surface :
anti-corrosion outdoor powder coating,
Door :
Two front doors and two rear doors
IP Level :
IP55
Communication protocol :
SNMP communication
User space :
46U 19" equipment rail and battery shelves
Description

3CR12 Two Bay Outdoor Telecom Cabinet Telecommunication Enclosure

3CR12 Stainless Steel Two Bay Outdoor Telecom Cabinet Air Conditioner Cooling Base Station Telecommunication Enclosure

1. Our main products


-- Cabinet and Rack such as outdoor Telecom enclosure, Battery cabinet, rectifier cabinet, fiber optic cabinet, distribution cabinet, distribution box, electrical cabinet, IT rack. Serve rack etc.

-- Cooling system: Heat exchanger, air conditioner, Thermoelectric cooler

-- Enviromental monitoring system,support SNMP communication

-- Rectifier system


2. Application scenarios and industries of outdoor telecommunication cabinet


- Wireless network base station;
- Power cabinet/UPS cabinet/rectifier cabinet
- Transmission cabinet
- Data communication cabinet
- IT&Network system
- Power supply
- Telecommunication
- Solar Energy
- Energy saving
- Radio
- 3G/4G/5G network


3. Feature


●Short construction period, less land occupation, broader application and lower construction cost
● High integration, compact structure, easy installation and migration on later stage
● High-performance cooling solution, high capacity air conditioner and fan
● Anti-theft three-point outdoor cabinet lock, excellent keyhole protection device
● Professional outdoor anti-corrosion powder coating, strong weather resistance
●The cabinet is integrated with environment monitoring system, support SNMP communicaton. Various sensors are optional.

4. Techinics

Configuration Item Technical Parameter
Cabinet Body Model ET171139134
Size External Size: 1340mm×1711mm×1394mm(H×W×D)
Component The whole cabinet is composed of three parts: the top cover, the cabinet body and the base. The installation method is floor mount.
Material Single wall with heat insulation: 4.5mm 3CR12 stainless steel+20mm PEF
Structure
  • Two front doors and two rear doors, hidden zinc alloy hinge;
  • Each door use outdoor anti-theft three point steel lock, including lock protection box;
  • Install the door limit on the inside of the cabinet door;
  • The grooved door is equipped with a seal rubber strip, clinging to the inner side of the door, waterproof and dustproof;
  • Inside cabinet includes 46U 19” equipment rail and battery shelves;
  • Equipped with cable manager;
  • Reserving the cable entry hole at the bottom of the cabinet;
  • Including grounding copper bar;
  • Including power distribution box outside the cabinet.
Surface Treatment Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification
Color Anti-corrosion outdoor powder coating grey RAL7035(color is optional)
Ingress Protection IP55
Working Temperature -40℃～+75℃
Cooling Method Air Conditioner

Power Supply: AC220V 50Hz;

Cooling Capacity: 2500W

2 sets
Fan System DC48V fan *4,
Environment Monitoring System Monitoring Unit 19” rack mount, 1U, DC48V, support SNMP communication
Door Sensor When unlawfully opened, provide real-time alarm, quantity: 4PCS
Vibration Sensor Monitor the vibration of the cabinet and provide real-time alarm. Quantity: 1PC
Water Sensor Optional
Temperature Sensor Optional
Smoke Sensor Optional
Other Optional
Lighting LED Lamp Optional
LED Lamp Switch Optional
Power Distribution Unit AC DB

1 x 60A Triple Pole breaker

3 x 32A Triple Pole breakers

1 x 3Pole Change Over Switch for generator and

32A female connector and 15A socket outlet

1 x 60KA Surge Arresters Triple Pole

1 x 10A breaker Single Pole

1 x 32A earth leakage breaker Single Pole

2 x Modular Component Enclosure (Mechanical

interlock)

1 x 16A Single Pole breaker

Earth and Neutral bar

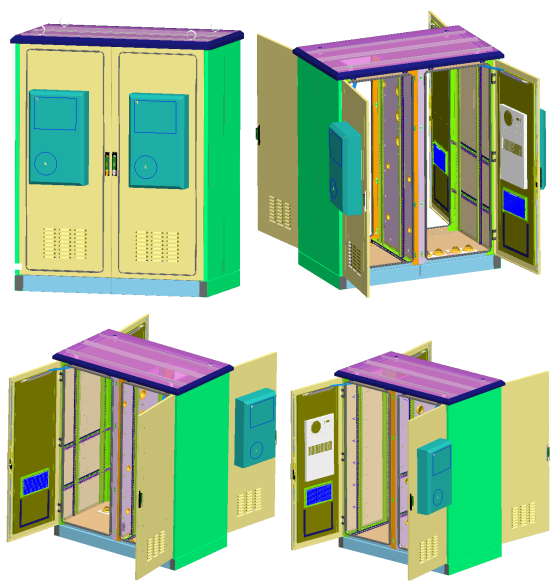

5. Cabinet Picture

3CR12 Two Bay Outdoor Telecom Cabinet Telecommunication Enclosure

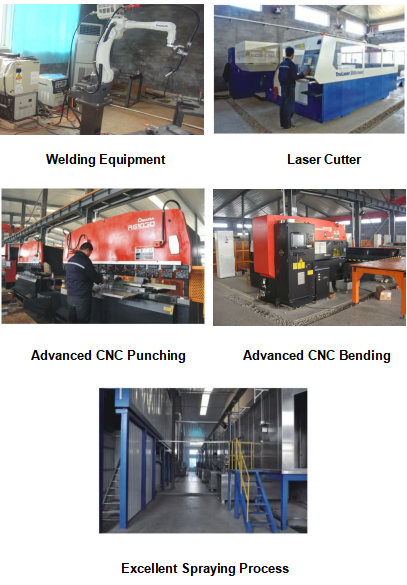

6. Production equipment

3CR12 Two Bay Outdoor Telecom Cabinet Telecommunication Enclosure


7. Packing-fumigation free plywood

3CR12 Two Bay Outdoor Telecom Cabinet Telecommunication Enclosure
