Specifications
Brand Name :
ESTEL
Model Number :
ET7585200-UP-2D
Certification :
ISO9001
Place of Origin :
China
MOQ :
1PC
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
1800PCS per month
Delivery Time :
15 to 20 days
Packaging Details :
Wooden Case with Pallet
Material :
Sandwich structure panel, galvanized steel, double wall with heat insualtion
Maintenance mode :
One front door, open the front door and rear door
IP Level :
IP55
Operating temperature :
- 40℃～+75℃
Cooling method :
AC220V 50Hz 1500W air conditioner
Size :
W×D×H 750×850×2000mm
Description

Outdoor Constant Temperature Power Cabinet Front Back Door Double Wall Sandwich Structure Panel Air Conditioner Cooling

Application

Our cabinet design, finishing and sealing make it ideal for outdoor use.As its name suggests its placement is usually on roads, signalling or lighting, and use in weather stations, telecommunications, telephones, fibre optics and video surveillance in urban or interurban areas.

Introduction

The product is composed by cabinet industrial air conditioning, power distribution unit and environment monitoring system. User can install their 19” telecom equipment and battery. The cabinet adopts 1.5mm thickness galvanized steel frame and 1.0mm thickness EPS Sandwich structure panel . The door is front opening and back opening, the front door is installed with industrial air conditioning temperature control. The overall appearance is beautiful, easy to maintain, constant temperature, and theft-proof, water- proof, sun-proof, and corrosion-proof, can meet the requirements of working in outdoor harsh environment.

Cabinet Configuration

Model ET7585200-UP-2D
Size H*W*D 2000*750*850mm
Material Sandwich structure panel, galvanized steel, double wall with heat insualtion
Internal rack 19 inch rack and battery shelf
Protection class / Operating temperature IP55/ - 40℃～+55℃
Cooling method AC220V 50Hz 1500W air conditioner
Maintenance mode/Installation Open the front door and rear door, install on the ground
Other accessories

Environment monitoring unit 19”,1U, SNMP

Smoke sensor*1

Door sensor*2

Water sensor*1

Temperature&humidity sensor*1

Shock sensor*1
Power distribution unit Can be customized

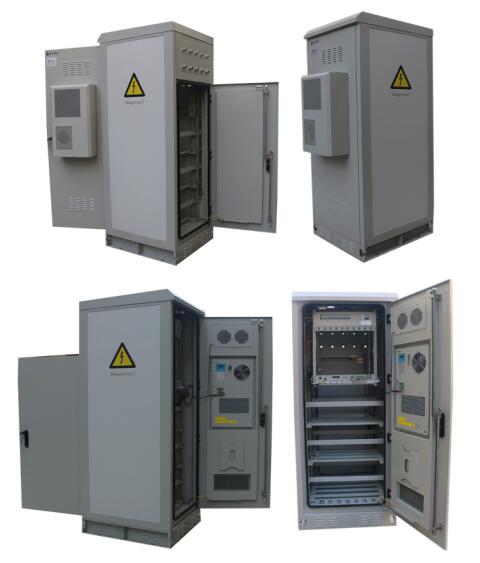

Cabinet Picture

Double Wall Sandwich Structure Outdoor Power Cabinet IP55

Double Wall Sandwich Structure Outdoor Power Cabinet IP55

Load Container

Double Wall Sandwich Structure Outdoor Power Cabinet IP55

Our Factory

Double Wall Sandwich Structure Outdoor Power Cabinet IP55
