Specifications
Brand Name :
ESTEL
Model Number :
ET351845-FB
Certification :
ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 Set
Price :
Depending on order quantity
Payment Terms :
L/C, T/T, Paypal
Supply Ability :
3000 sets per month
Delivery Time :
20 to 30 days
Packaging Details :
carton + wooden case
Application :
Traffic control enclosure
Protection Grade :
IP55
Installation :
Pole mounted, wall mounted
Internal Structure :
Back panel with DIN rail for power management.
Fiber Optical Management :
Fiber optical splicing tray and fiber optical fixing plate.
Material :
Galvanized steel, 1.2mm thick.
Dimension :
W×D×H 350×197×450 mm
Cable Entrances :
4 cable glands at cabinet bottom
Grounding :
Copper grounding bar and grounding cable
Cooling :
Fan with thermostat
Description

Pole Mounted Wall Installed IP55 Traffic Control Enclosure

With Back Plate And Din Rail

Model: ET351845-FB

Introduction

The traffic control enclosure is specifically designed for the mass transit and traffic markets. This series of cabinet have the highest quality construction and materials. Being made from galvanized steel material and anti-corrosion polyester powder coating, the traffic control box can serve more than 10 years. Used primarily on ramp/intersection control, toll monitoring, intelligent transportation system (ITS) applications.

A traffic control cabinet is the ultimate line of defense between your equipment and the elements. Our weather-resistant cabinets protect street flashing equipment — like time clocks, circuit breakers and traffic controls — from environmental factors throughout the year. Each enclosure is designed to house your traffic equipment from rain, sleet, snow, dripping water and corrosion to protect sensitive materials.

Technical Specs

Feature Description Material and Finish
Dimension W×D×H 350×197×450mm
Cabinet Construction Cabinet walls, top, doors and door frames are of galvanized steel construction. Material: galvanized steel, 1.2mm thick. Single wall without thermal insulation. All surfaces are powder coated with light grey RAL7035.

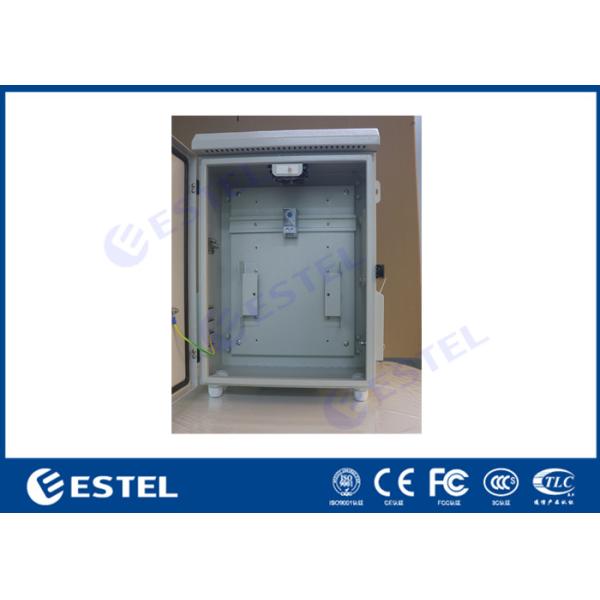

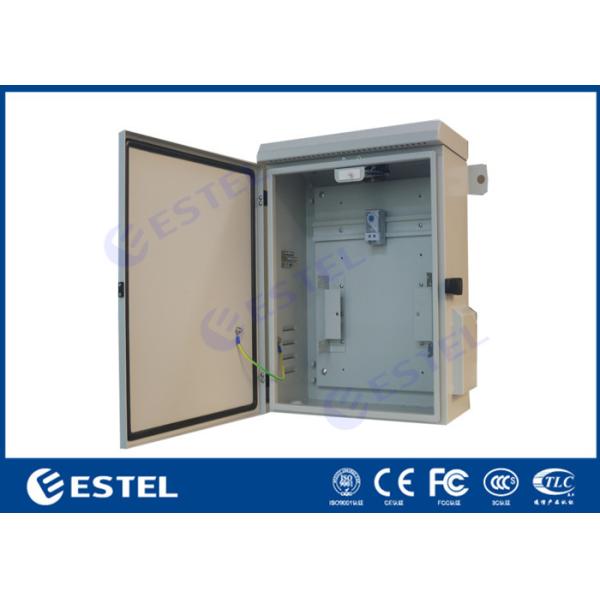

Interior Structure

Back panel with DIN rail for power management.

Fiber optical splicing tray and fiber optical fixing plate.

Configuration can be customized.
Door Lock Anti-theft door lock
Door Gasket Seal Door gasket that mechanically fastens to the cabinet door. Gasket material is EPDM rubber sealing strip.
Cable Entrances 4 cable glands at cabinet bottom, 2 on the left, the other 2 on the right.
Grounding Copper grounding bar and grounding cable connected on door. 8 position copper grounding bar mounted at interior left side. Cable door grounding strap secured to studs for each cabinet door.

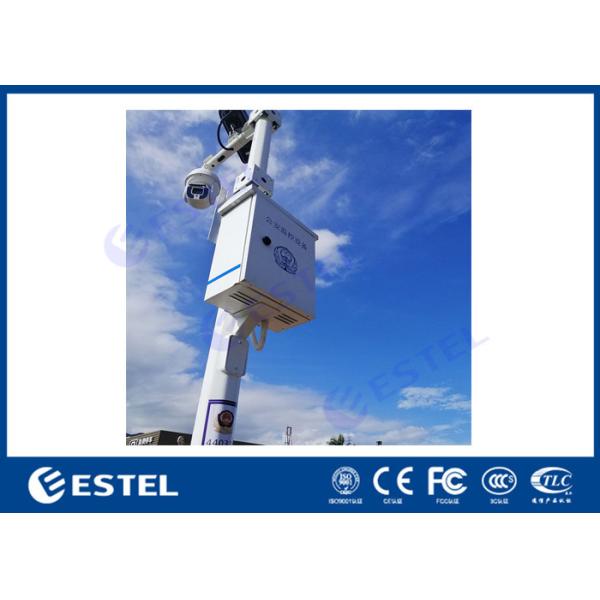

Installed Method Wall mounted, pole mounted optional Include wall mounting accessories and pole mounting accessories
Cooling Fan with thermostat 48VDC or 220VAC voltage optional
Door Switch Open door alarm optional

Features

• Various mounting options:pole mounted, wall mounted. Include pole installation kit or wall installation accessories, provide a flexible solution for traffic applications

• The back plate inside the enclosure can be disassembled from the cabinet, easy for installing devices

• Protection grade: IP55

• Traffic grade galvanized steel enclosure protects power systems from outdoor environments

• Powder Coat: the outdoor enclosures are powder coated, with outstanding corrosion resistance. Color: RAL7035

• Large sun shield reduces solar heat load inside the cabinet

• Thermostat controlled fan and louvered vents ensure reliable operation in high temperatures

• Material: galvanized steel, aluminum, stainless steel optional

Pictures

Pole Mounted Wall Installed IP55 Traffic Control Enclosure With Back Plate And Din Rail

Pole Mounted Wall Installed IP55 Traffic Control Enclosure With Back Plate And Din Rail

Pole Mounted Wall Installed IP55 Traffic Control Enclosure With Back Plate And Din Rail
