Integrated IP55 Outdoor Triple Bay Racking Telecom Cabinet With Three Doors Air Conditoner Cooling

1.Enclosure Overview

• Triple Bay Enclosure is 2400mm High and 2400mm Wide and 900mm Deep. It comes with 2 Sets of Standard 19″ Racking Rails and 4 battery layers.
• Standard Racking Hub that will allow you side by side.This triple bay enclosures are the ultimate choice for outdoor racking requirements.
• For those who need more than just standard enclosure, this series can also offer a truly the security of customized solution with lots of available options.
• It provides a climate-controlled environment for any electronic equipment, electrical load panels and cable entry solutions.
• It provides a secure,climate controlled environment for any electronic equipment.

2.Enclosure Application

• The construction cycle is short, the area occupies less, the scope of application is more extensive, which is conducive to reducing the construction cost.

• High integration and compact construction are ideal for installation and post-migration.

• Each individual module is designed with an independent environmental monitoring and control system, which uses more reliable and intelligent, is at least 30% more energy efficient than conventional base stations, and significantly reduces air pollution emissions.

• Independently equipped with a standard 19-inch power environment monitoring module, remote real-time monitoring and monitoring and monitoring intervention sits on equipment in the base station, and remote maintenance and detection capabilities can be designed to significantly reduce late-stage operational maintenance costs.

3.Enclosure Features

• External dimentions is W*D*H 2400*900*2400mm
• Green color
• Top cover, shades cabinet from the sun.
• Galvanized steel
• Zinc Die Powder-coated
• Three front doors
• Anti-theft three point lock
• Individual cable entry holes from bottom of the cabinet
• IP55 protection level
• 2 sets of adjustable 19″ racking rails
• 4 battery layers
• Cooling system uses aire conditioners
• The door sensor, water sensor, smoke sensor, temperature and humidity sensor optional
• Flame retardant comply with GB5169.7 test A
• CE certificates
• Floor mounting type
• Package:Wooden case

4.Enclosure Application Types

Provide a secure,climate controlled environment for any electrionic equipment.

• Wireless/Broadband
• Telecommunications
• Base station
• Trailer-based communications
• Fiber Optics
• Military
• Flexible and Scalable

5.Enclosure Inernal Instruction

5.1 Cable Entry Holes

There are entrance holes individually for feeder cable and other external cables.

5.2. Anti-loose threaded connection

• Use anti-loose threaded connection as structure and bearer connection.Anchor bolt for fixing cabinet use hot dip galvanized bolts.
• Door hings use inner hinge mode.

6. Cooling System

220VAC Air Conditioner

The air conditioner uses utility power input, allowing wide voltage range (±30%), with high energy efficiency ratio. The air conditioner controller is digital display temperature controller, with easy operation and straight display. The controller has 6 relay outputs, which respectively control internal circulation fans, external circulation fans, cooling compressor, heater, hydrogen exhaust fan and a reserve output way. The controller has fault detection and alarm function and can transmit fault alarm signals to monitoring center. The air conditioner integrated universal intelligent controller, supporting 7×24 hours continuous operation.

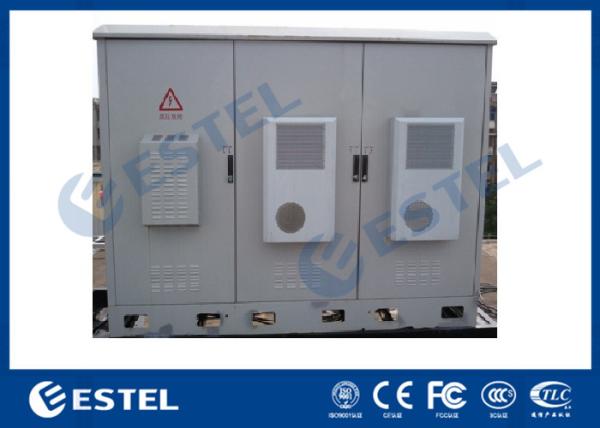

7. Product Pictures
