IP55 Triple Bay Racking Outdoor Telecom Enclosure / Pink Color Three Doors Air Conditioner Cooling Cabinet

1.Cabinet Overview

This triple bay enclosures are the ultimate choice for outdoor racking requirements.It provides a secure,climate controlled environment for any electronic equipment. Being made of galnarized steel,it’s strong enough to rack even the heaviest equipment.It comes with three sets of standard 19 inch racking rails. For those who need more than just standard enclosure, this series can also offer a truly the security of customized solution with lots of available options, providing a climate-controlled environment for any electronic equipment, electrical load panels and cable entry solutions.

2.Cabinet Features

• Pink color
• External dimentions is W*D*H 2400*900*1800mm
• Galvanized steel
• Top cover, shades cabinet from the sun
• Zinc Die Powder-coated
• Three front doors
• Anti-theft three point lock
• Individual cable entry holes from bottom of the cabinet
• 3 sets of adjustable 19″ racking rails
• Cooling system uses air conditioner and fan.
• The door sensor, water sensor, smoke sensor, temperature and humidity sensor optional
• Flame retardant comply with GB5169.7 test A
• CE certificates
• Floor mounting type
• Package:Wooden case with pallets
• IP55 protection level

3.Enclosure Application Types

• Telecommunications
• Base station
• Trailer-based communications
• Fiber Optics
• Military

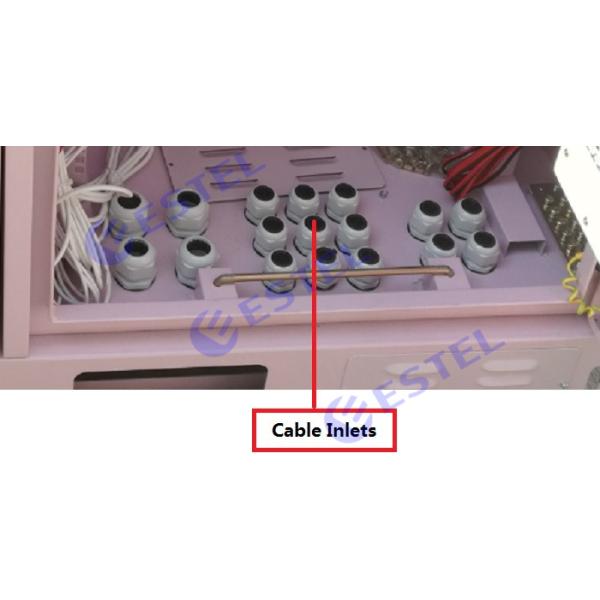

4. Cable entry holes

There are entrance holes individually for feeder cable and other external cables.

5. Connection and fastening

• Use anti-loose threaded connection as structure and bearer connection.Anchor bolt for fixing cabinet use hot dip galvanized bolts.
• Door hings use inner hinge mode.

6. Leading Time

Usually about 15 days. The exact lead time need to be confirmed according to the quantity of order.

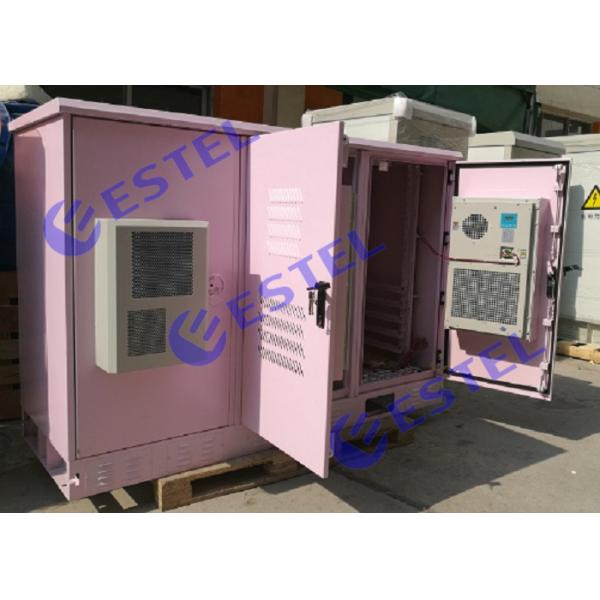

7. Product pictures
