Specifications
Brand Name :
ESTEL
Model Number :
ET9090220-EQ3
Certification :
ISO9001
Place of Origin :
China
MOQ :
1PC
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
1800PCS per month
Delivery Time :
15 to 20 days
Packaging Details :
Wooden Case with Pallet
Size :
W*D*H 900*900*2200mm
Material :
Galvanized steel, single wall with heat insulation
User space :
42U 19" rack
Surface :
Outdoor powder coating, anti-corrosion
Door lock :
Outdoor anti-theft three point lock
Cooling :
DC48V 1500W air conditioner
IP Level :
IP55
Power distribution unit :
Custom made based on client's requirement
Description

42U Galvanized Steel Outdoor Telecom Cabinet 5G Base Station Enclosure

42U High Quality Galvanized Steel Air Conditioner Cooling Outdoor Telecom Cabinet 5G Base Station

1. Application Scope

The outdoor communication cabinet is mainly used in telecommunication base station, such as 4G/5G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.

Besides, the cabinet is also used in bank, power, industry, radio&television, education, security monitoring, automatic system and research institute etc

2. Features

2.1 The cabinet is dustproof, sunproof and rainproof, used in outdoor environment.

2.2 The cabinet cooling uses DC48V 1500W air conditioner.

2.3 Including one 48VDC illumination LED lamp, installed on cabinet top.

2.4 Including two door sensor, one is used for LED lamp on/off, other one is used for open door alarm.

2.5 The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlets at the bottom of the cabinet.

3. Technical Specs

Item Type Technical Parameter
Structure Dimension

External Dimension: W*D*H 900*900*2200mm
Layout 1 compartment
Equipment Installation Method 19” rack, 42U
Door With one front door, and three point lock for outdoor cabinet (support padlock)
Material Galvanized steel, single wall with insulation
Ingress Protection IP55
Surface treatment powder-coat paint, outdoor polyester light gray RAL 7035 coating
Temperature Control Cooling DC48V Air Conditioner
Lighting LED lamp DC48V LED lamps
Power Distribution Power Distribution Unit

DC output MCB 63A/1P*1

DC output MCB 32A/1P*1

DC output MCB 16A/1P*2
Temperature Operating temperature -40°C ~ + 75°C
Storage temperature -50°C ~ + 70°C
Transport temperature -50°C ~ + 70°C
Humidity Relative Humidity (RH) 5%~99%
Air pressure Air pressure 62kPa ~ 101kPa (similar to 0m ~ 5000m altitude)
Other characteristics Flame retardance Comply with GB5169.7 test A
Insulation resistance ≥2×104M/500V(DC)
Withstand voltage ≥3000V(DC)/1min

4. 3D Drawing

42U Galvanized Steel Outdoor Telecom Cabinet 5G Base Station Enclosure

5. Electrical Devices

5.1 Air Conditioner

The cabinet includes one DC48V 1500W air conditioner, installed on the door of the cabinet.

The following is parameter data:

Product Model E135001500
Dimensions, Weight & Mount
External Dimensions (H x W x D) MM 745x449x200
Weight KG 28
Mounting Method Semi-embedded Mounting
Application Outdoor
Environmental Protection & Performance
Working Temperature Range ºC -15 to +55
Noise Level dB(A) 65
IP Grade IP IP55
Refrigerant R134a
CE & RoHS Compliant YES
Cooling Capacity & Operational Data
Internal Airflow M3/h 400
Power Consumption@L35/L35 W 425
Max Current A 15
Power, Frequency & Range
Input Voltage VDC DC48V
Frequency HZ ------

5.2 Power Distribution Unit

DC output MCB 63A/1P*1

DC output MCB 32A/1P*1

DC output MCB 16A/1P*2

42U Galvanized Steel Outdoor Telecom Cabinet 5G Base Station Enclosure

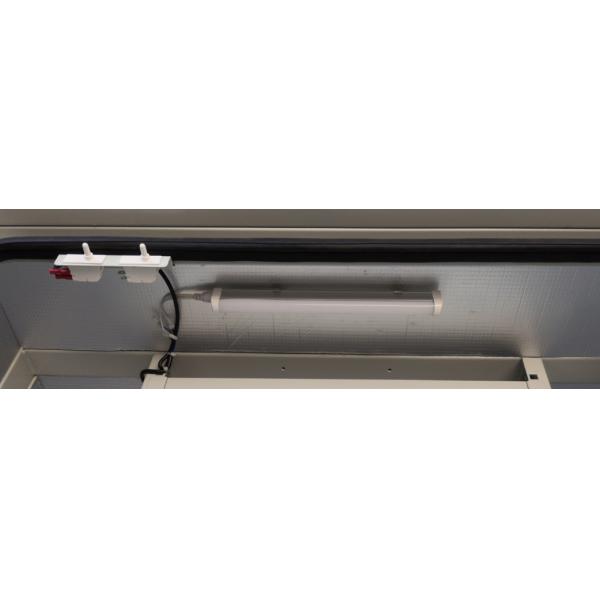

5.3 LED Lamp

LED lamp is 48VDC, installed on the top of the cabinet, see below picture

42U Galvanized Steel Outdoor Telecom Cabinet 5G Base Station Enclosure

6. Cable entry

Use cable gland on the cabinet bottom

42U Galvanized Steel Outdoor Telecom Cabinet 5G Base Station Enclosure

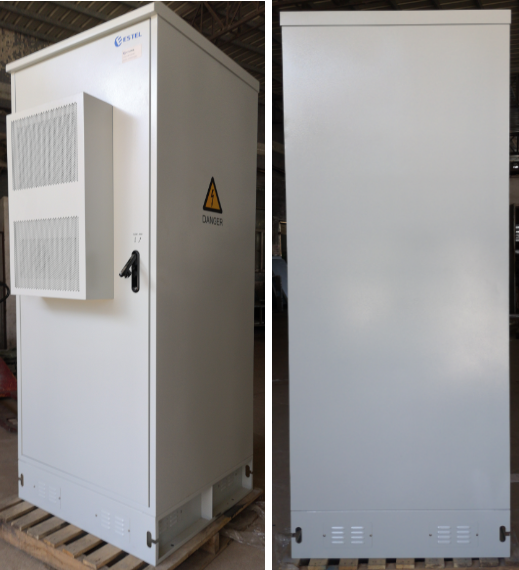

7. Cabinet Picture

42U Galvanized Steel Outdoor Telecom Cabinet 5G Base Station Enclosure

42U Galvanized Steel Outdoor Telecom Cabinet 5G Base Station Enclosure

8. Cabinet Details

42U Galvanized Steel Outdoor Telecom Cabinet 5G Base Station Enclosure
