Specifications
Brand Name :
ESTEL
Model Number :
ET9090210-UP9
Certification :
ISO9001
Place of Origin :
China
MOQ :
1PC
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
1800PCS per month
Delivery Time :
15 to 20 days
Packaging Details :
Wooden Case with Pallet
External Dimension :
W×D×H 900×900×2100mm
Material :
Sandwich structure panel, galvanized steel, double wall with heat insualtion
Equipment install method :
Standard 19"rack and 2 layer battery shelf
Door open :
One front door and one rear door
IP Grade :
IP55
Operating temperature :
- 40℃~+75℃
Cooling method :
AC220V 150W/K Heat Exchanger and fan
Cable Inlet :
On the bottom front and back
Relative Humidity :
5% ~ 100%
Air Pressure :
62kpa ~ 101kpa(similar to 0m ~ 5000m altitude)
Description

IP55 Sandwich Structure Panel Front Rear Access Heat Exchnager Cooling Outdoor Power Cabinet Telecommunication Enclosure

1. Application

The ET9090210-UP9 Outdoor Power Cabinet is mainly used in wireless communication base station, such as 5G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc. The cabinet can contain rectifier system, UPS, inverter, battery etc

2. Description

This cabinet have 20U 19 inch space and 2 layer battery shelves, use Sandwich structure panel, galvanized steel material, one front door and one rear door. Adopt heat exchanger for cooling. All the screw is high corrosion resistance stainless steel material.


3. Features


(1) The cabinet is dustproof, sunproof fireproof and rainproof, which is used in outdoor environment.
(2) Cabinet cooling: heat exchanger. (Other cooling option: air conditioner and fans). MTBF≥50000h
(3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlet individually for power cable, signal cable and optical cable.
(4) All the cables used in the cabinet are made from flame retardant materials.
(5) Use outdoor powder coating with high anti-corrosion.

4. Technical Parameters

Item Type Technical Parameter
Structure Dimension External Dimension: W×D×H 900×900×2100mm
Layout 1 compartment, the upper cabin is for 19” equipment, the lower cabin is for battery
Equipment Installation Method 19” rack and battery shelf
Door With one front door and one rear door, and anti-theft three point lock for outdoor cabinet (support padlock).
Material Sandwich structure panel
Ingress Protection IP55
Temperature Control Cooling AC220V 150W/K heat exchanger
Lighting LED lamp AC220V LED lamp
Temperature Temperature Working Temperature: -40°C ~ +55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2


5. Accessories List

No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 PC

(1) External Dimension: W×D×H 900×900×2100mm

(2) Including cable entry on the bottom

(3) Including grounding copper bar

2 Heat Exchanger 1 SET AC220V 50Hz 150W/K
3 Fan 1 SET Two AC220V fans with one temperature controller
4 LED Lamp 1 PC AC220V, for illumination inside cabinet
5 LED Lamp Switch 1 PC For controlling LED lamp on/off
6 Environment Monitoring System 1 SET

1* environment monitoring unit, 1U,SNMP communication;

1* smoke sensor;

1* water sensor;

1* temperature&humidity sensor;

2* door sensor

Power Supply: 220VAC

7 Socket 1 PC 8 -bit universal socket, 220V 16A
8 Package 1 PC Wooden Case


6. Cabinet Picture

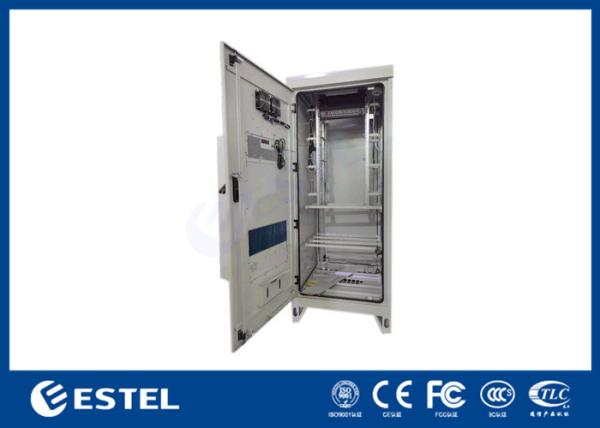

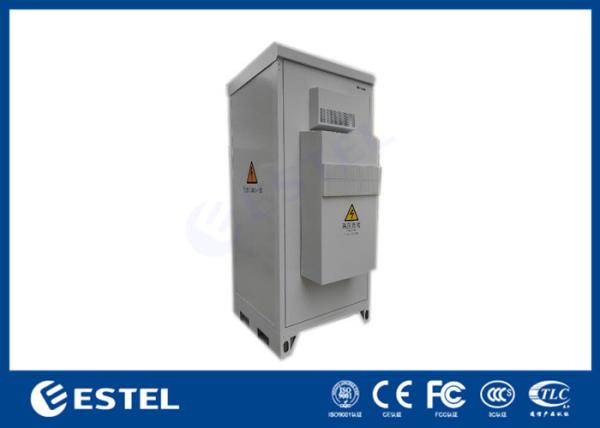

IP55 Sunproof Outdoor Power Cabinet Telecommunication Enclosure With Heat Exchnager Cooling

IP55 Sunproof Outdoor Power Cabinet Telecommunication Enclosure With Heat Exchnager Cooling

7. Drawing

IP55 Sunproof Outdoor Power Cabinet Telecommunication Enclosure With Heat Exchnager Cooling


8. Cabinet Details

IP55 Sunproof Outdoor Power Cabinet Telecommunication Enclosure With Heat Exchnager Cooling

IP55 Sunproof Outdoor Power Cabinet Telecommunication Enclosure With Heat Exchnager Cooling

IP55 Sunproof Outdoor Power Cabinet Telecommunication Enclosure With Heat Exchnager Cooling

IP55 Sunproof Outdoor Power Cabinet Telecommunication Enclosure With Heat Exchnager Cooling


9. Packing

IP55 Sunproof Outdoor Power Cabinet Telecommunication Enclosure With Heat Exchnager Cooling
