8U Hot Pluggable Telecom Rectifier System For Indoor Cabinet With Wide Input Voltage Range 85-300Vac
8U Hot Pluggable Telecom Rectifier System For Indoor Cabinet With Wide Input Voltage Range 85-300Vac
8U Hot Pluggable Telecom Rectifier System For Indoor Cabinet With Wide Input Voltage Range 85-300Vac
8U Hot Pluggable Telecom Rectifier System For Indoor Cabinet With Wide Input Voltage Range 85-300Vac
8U Hot Pluggable Telecom Rectifier System For Indoor Cabinet With Wide Input Voltage Range 85-300Vac
8U Hot Pluggable Telecom Rectifier System For Indoor Cabinet With Wide Input Voltage Range 85-300Vac
8U Hot Pluggable Telecom Rectifier System For Indoor Cabinet With Wide Input Voltage Range 85-300Vac
8U Hot Pluggable Telecom Rectifier System For Indoor Cabinet With Wide Input Voltage Range 85-300Vac
Specifications
Brand Name :
ESTEL
Model Number :
ET48300-001
Certification :
ISO9001, CE, UL,FCC
Place of Origin :
Shenzhen, China (Mainland)
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, , T/T, Western Union
Supply Ability :
20,000 sets per month
Delivery Time :
7-10 working days
Packaging Details :
carton/wooden case
System capacity :
18kW/300A
Rectifier module output power :
3000W/50A
Input voltage :
85VAC～300VAC, rated 220VAC
Output voltage :
-43~-58VDC, rated value: -53.5VDC
Power factor :
>0.99
Input frequency :
45~65Hz
Efficiency :
≥96%
AC input :
63A/4P×1
AC output :
32A/1P×6 (individual for each rectifier module)
Load breakers :
LLVD: 63A/1P×2, 125A/1P×2 BLVD: 63A/1P×4, 125A/1P×4
Battery breaker :
125A/1P×2
Bypass switch :
125A/4P×1
Description

8U Hot Pluggable Telecom Rectifier System For Indoor Cabinet With Wide Input Voltage Range 85-300Vac

1. Overview

ET48300-001 sub-rack power supply with 8U height design can meet critical application needs of fiber and microwave transmission, access device and switch. The system maximum power is 18KW, with AC/battery/load MCBs.

2. Key Features
2.1 Standard 19-inch width, which has the advantage of wide use;
2.2 Perfect battery management, prolongs the life of the battery well provide various communication ports, RS485, internet port, dry contacts, etc. which enables flexible networking and remote monitoring;
2.3 Rectifier and controller are hot pluggable, easy and quick on-line maintenance;
2.4 Wide input voltage range(85-300Vac) the power grid is adaptable.

3. Configuration List of Telecom Rectifier Cabinet

NO DESCRIPTION SPECS QUANTITY
1 Indoor Cabinet (1) External Dimension: W×D×H 600×600×2000mm
(2) One compartment: include 42U 19" rack
(3) With one front door(Acrylic plate) and cabinet lock
(4) Material: cold rolled steel,single wall
(5) Including two 48VDC fans
(6) Including two trays		 1
2 Rectifier System

System: ET48300-001(19" 8U height )
Monitoring module: MC2600, SNMP communication
Input:
220VAC(L1-L2-L3 parallel connected)
63A/4P×1;
32A/1P×6(individual for each rectifier module)
Output: LLVD: 63A/1P×2, 125A/1P×2
BLVD: 63A/1P×4, 125A/1P×4 Battery breaker: 125A/1P×2
Bypass switch: 125A/4P×1
Including AC and DC SPD
Rectifier module: MR483000HG2B-GS (3000W)×6, (4+2)

 1
3 Smoke Sensor Connected to monitoring module of rectifier system 1
4 Water Sensor Connected to monitoring module of rectifier system 1
5 Temperature Sensor Connected to monitoring module of rectifier system 1
6 Door Sensor Connected to monitoring module of rectifier system 1
7 Package Wooden case 1

4. Rectifier Technical Specification

Category ET48300-001
System Dimension(mm) 482.0(W)*350.0(D)*8U(H)
Weight ≤40kg(without rectifier module)
Cooling mode Natural cooling
Cabling mode Top inlet and top outlet
Maintenance mode Front maintenance, support module grade change
Installation mode Installed on 19-inch rack or inside the cabinet
IP Grade IP20
AC Distribution Input mode 220VAC(L1-L2-L3 parallel connected)
Input capacity 63A/4P×1
Input frequency 45~65Hz, rated value: 50Hz/60Hz
Output capacity 32A/1P×6 (individual for each rectifier module)
AC SPD 20kA/40kA, 8/20μs

DC Distribution

 Output voltage -43~-58VDC, rated value: -53.5VDC
Maximum capacity 18kW (rectifier module MR483000HG2B-GS 3KW×6)
Battery breaker 125A/1P×2
Bypass switch 125A/4P×1
Load breakers

LLVD: 63A/1P×2, 125A/1P×2
BLVD: 63A/1P×4, 125A/1P×4
DC SPD 40kA, 8/20μs
Rectifier Input voltage 85VAC～300VAC, rated 220VAC
Efficiency ≥96%
Rated power 3000W(176~300VAC)
Working temperature -40℃~+75℃(fully output below 50℃)
Dimension 106.5mm(W)×286mm(D)×41.5mm(1U/H)
Weight ≤2kg
Cooling mode Forced cooling with fan
Power factor ≥0.99
THD ≤5%
Controller Signal input 4 AI(3 Battery temp., 1 ambient temp) ,7 DI(SPD, 6 common DI)
Alarm output 4 dry contact
Communication port RS485, SNMP
Display mode LCD

Environment

 Operating temperature -40℃~+75℃(fully output below 50℃)
Storage temperature -40℃~+70℃
Operating humidity 5%~95%(non-condensing)
Altitude 0~3000m(If the altitude is within the range of 2000m to 3000m, the maximum operating temperature decreases by 1℃ as the altitude increases by 200m.)

5. Rectifier Photos

8U Hot Pluggable Telecom Rectifier System For Indoor Cabinet With Wide Input Voltage Range 85-300Vac

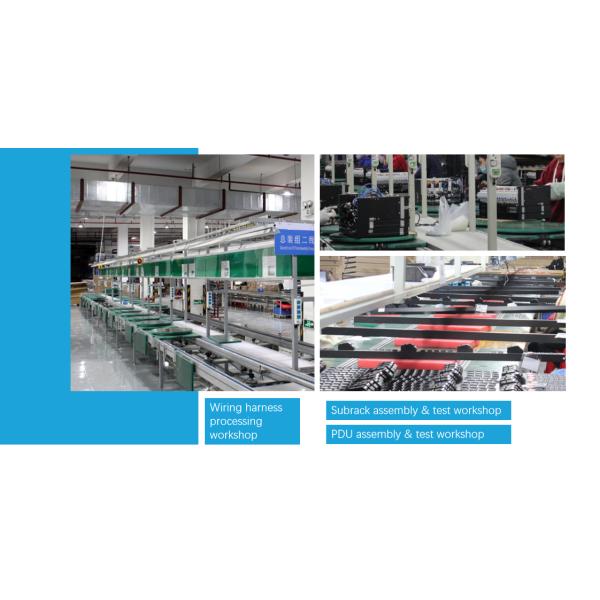

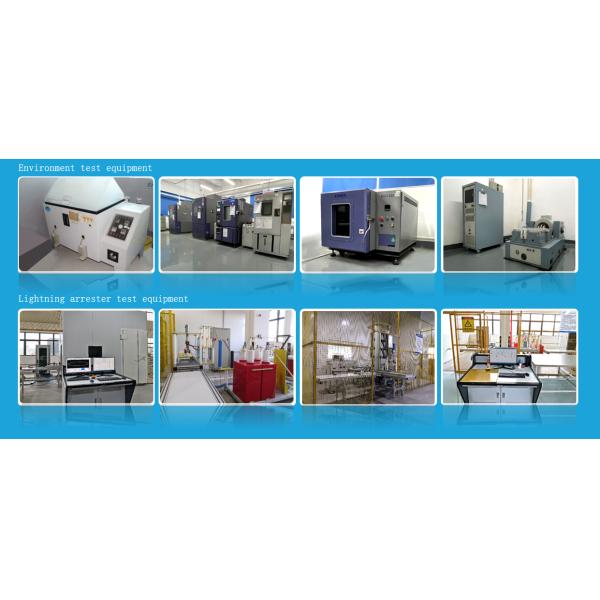

6. Production Equipment
