Dynamic Environment Monitoring FSU1000 19-inch Rack-mount Monitoring System


Overview of our FSU1000

The 19-inch Rack-mount Environment Monitoring System is an environmental monitoring solution designed for data centers or server rooms. It is typically installed on 19-inch racks to provide real-time monitoring and management of various environmental parameters, ensuring that equipment operates in the best condition.

Key Features
Comprehensive Monitoring: The system can monitor UPS, power distribution, air conditioning video, access control, temperature and humidity, smoke, water, and other environmental parameters.
High-quality Components: The cables and connectors used in the system are high-quality products, certified and tested by CE, ensuring video and audio quality.
Customization: The system supports customization and can be configured according to specific needs.
Ease of Installation: With a 19-inch rack-mount design, it is convenient and quick to deploy in data centers or server rooms.

The working principle of the dynamic loop monitoring system mainly includes three key parts: remote communication, telemetry and remote control.

Remote message: the discrete state of the switch signal data acquisition, reflected to the monitoring center.

Telemetry: Data acquisition of continuously changing analog signals (such as current and voltage) to judge the operation of equipment.

Remote control: The centralized monitoring system issues control commands to operate the equipment remotely.

Application Scenarios
The system is widely used in various scenarios such as data centers, server rooms, network integration systems, remote monitoring systems, closed-circuit surveillance systems, and electronic monitoring systems. By monitoring environmental parameters in real-time, it can promptly detect potential issues and take measures to ensure the stable operation of equipment and the security of data.

Conclusion
The 19-inch Rack-mount Environment Monitoring System is an efficient and reliable environmental monitoring solution that provides comprehensive environmental parameter monitoring and management for data centers and server rooms. Through customized configurations and the use of high-quality components, the system can meet the needs of various application scenarios, ensuring the stable operation of equipment and the security of data.

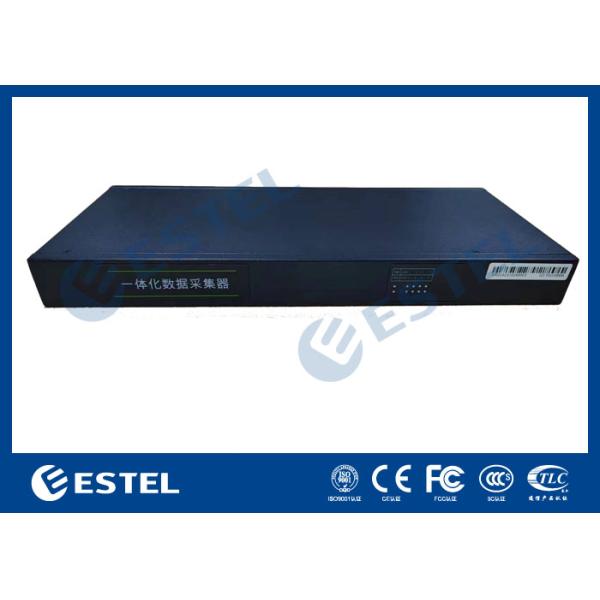

Product pictures:




1. FSU1000 Parameter

2. Environment Monitoring System Product Profile

Environment Monitoring Unit is a network monitoring host designed for integrated network rooms that integrates UPS monitoring and extended power environments. Adopting the popular 19-inch rack-mount design style, supporting 220V AC or 48V DC power supply, supporting more than 12-way switching value, multi-way relay control output and ambient temperature and humidity expansion, with SMS monitoring and control functions, more secure and more reliable. It will be the best choice for modern unmanned duty rooms.

3. Appearance and interface specifications

IMU-Interface:

The panels and interfaces for IMU are shown below

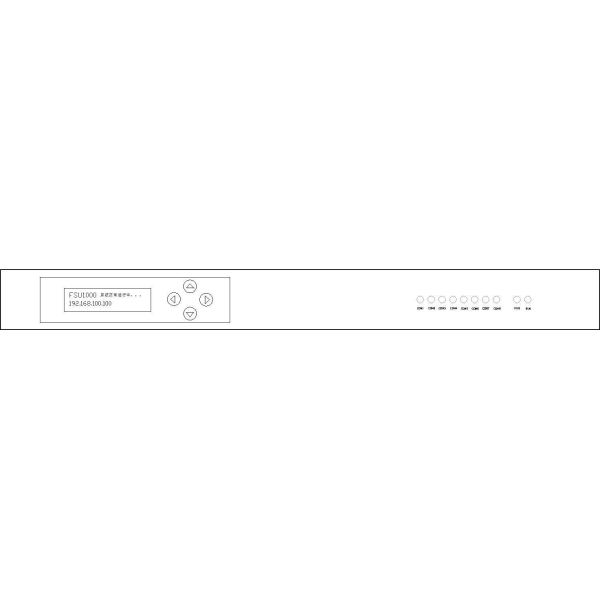

Purture 1-2 Front and Rear Imu appearance

EXTENDING THE DEFINITION OF SERIAL LINE ORDER:



4. Environment Monitoring System Installation Configuration Requirements

A UPS with RS-232 communication interface;
A computer (with administrative rights) with RS-232 communication interface and 10M/100M Ethernet adapter card for initial parameter setting;
complete network environment;
Series of function expansion options for network monitoring, monitoring, and management of UPS power and computer room environments and peripherals (optional).


5. Dynamic environment monitoring Advantages

• The front panel is fitted with a 3 inch liquid crystal display for easy and intuitive operation.

• All serial ports are equipped with indicator lights to visually display the communication status.

• COMPACT:”1u/19"standard case, easy to install.

• Equipped with 5 SETS OF SENSORS UP TO 15W external power supply to support a variety of logic linkage

• Support for transparent transmission and forwarding of protocol data.

• Support a large number of sensors, equipment access, with analog, switching, RS485/RS232 signal access.

• Standard GSP UPLOAD, open protocol.

• Flexible power supply, AC or DC power supply.

• Web Pages with full functionality make data presentation simple and straightforward

• Equipped with Buzzer, alarm status local voice prompt

• OFFERS UP TO 16485 serial ports (IMU 1016 version)

• Port adaptability is good, at the same time, the monitoring object in common use has a dedicated port
