230VAC 32A Power Distribution Unit Wall Mounted Socket Type PDU
230VAC 32A Power Distribution Unit Wall Mounted Socket Type PDU
230VAC 32A Power Distribution Unit Wall Mounted Socket Type PDU
230VAC 32A Power Distribution Unit Wall Mounted Socket Type PDU
230VAC 32A Power Distribution Unit Wall Mounted Socket Type PDU
230VAC 32A Power Distribution Unit Wall Mounted Socket Type PDU
Specifications
Brand Name :
ESTEL
Model Number :
PN1-32X30-20E6G-AV4W
Certification :
ISO9001, CE, 3C, FCC, TLC, IP55
Place of Origin :
Shenzhen, China (Mainland)
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, L/C,D/A, Western Union, Paypal, etc
Supply Ability :
5,000 sets per month
Delivery Time :
15-20 working days
Packaging Details :
Wooden case
Product Size (L*W*H) :
1560*58*58mm
Mounting Length :
1536mm
Cable Mounting :
Up input
Rated Voltage current :
230VAC 32A
Weight :
7.7kgs
Model Name :
PN1-32X30-20E6G-AV4W
Description

230VAC 32A Power Distribution Unit Wall Mounted Socket Type PDU

1. 230VAC 32A Power Distruibution Unit Introduction:

The series of smart busbars is a green, energy-saving, safe, reliable and economical modular end-end power distribution product for data centers.
Taste. Terminal power distribution solutions suitable for most application requirements

2. Wall Mounted Power Distruibution Unit Technical Data:

Description Power Distribution Unit Client Part No. /
Part No. PN1-32X30-20E6G-AV4W Customer Product code /
Product code / Lead time /
Quantity / Product special instructions
NO. Parameters and Description NO. Parameters and Description
1

Socket Type and

Quantity

20 way C13

6 way C19

 9 Enclosure color Black
2 Sockets combination 10 Product Size (L*W*H) 1560*58*58mm
3

Input method for

Power Supply

 Cable 11 Mounting Length 1536mm
4 Cable plug standard / 12

Case Length of

Aluminum alloy

 /
5 Cable specification 3*6mm2*3m Cable 13 Product mounting Bracket installation
6 Cable Mounting Up input 14 Bracket installation Vertical reverse installation
7 Cable fixing Cable buckle 15 Control indicating /
8 Module installation order (left to right or top to bottom)

Refer to drawings

 16 Monitoring function PN-4 series(MA31)
17 Accessories M6 screws, 4pcs nuts, 1pcs manual
18

Product labeling

Format, requirements, refer to "Identity

Printing

Requirements

Document"

 Product Name Power Distribution Unit

LOGO picture
Customer specifications PN1-32X30-20E6G-AV4W
Rated voltage current 230V AC 32A
Safety certification mark /
Product LOGO ESTEL
Manufacturers ESTEL

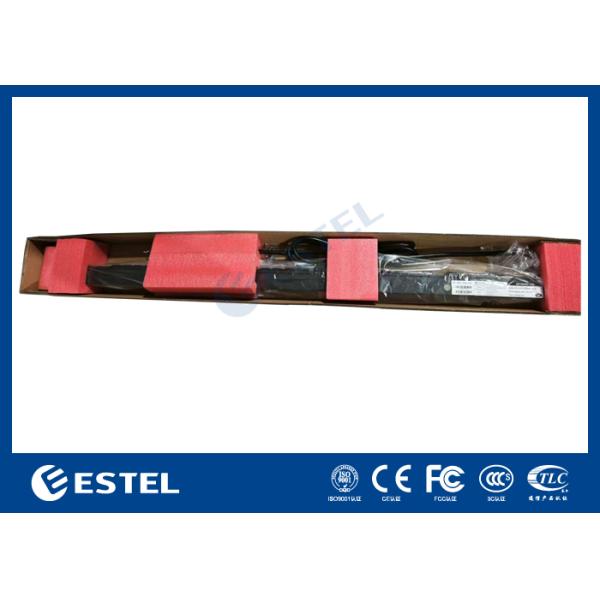

3. Power Distribution Unit Pictures:

230VAC 32A Power Distribution Unit Wall Mounted Socket Type PDU

230VAC 32A Power Distribution Unit Wall Mounted Socket Type PDU

230VAC 32A Power Distribution Unit Wall Mounted Socket Type PDU

4. 230VAC 32A Socket Type PDU Applications:

The power distribution unit (PDU) is widely applied for out telecom cabinet, such as outdoor power cabinet etc.

5. ESTEL Contact Information:

Mobile Phone: 0086-13752765943

Telephone: 0086-0755 66600941

Email: info@estel.com.cn

lxf.estel@hotmail.com
Skype: fiona.liang10

Website: www.estelecomcabinet.com
