IP55 20U Outdoor Communications Cabinet Single Wall With Thermal Insulation
IP55 20U Outdoor Communications Cabinet Single Wall With Thermal Insulation
IP55 20U Outdoor Communications Cabinet Single Wall With Thermal Insulation
IP55 20U Outdoor Communications Cabinet Single Wall With Thermal Insulation
IP55 20U Outdoor Communications Cabinet Single Wall With Thermal Insulation
IP55 20U Outdoor Communications Cabinet Single Wall With Thermal Insulation
Specifications
Brand Name :
ESTEL
Model Number :
ET6565120-4
Certification :
ISO9001, CE, 3C, FCC, TLC, IP55
Place of Origin :
Shenzhen, China (Mainland)
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, MoneyGram
Supply Ability :
5,000 sets per month
Delivery Time :
Usually about 10-15 days
Packaging Details :
Wooden case
All outside cables :
bottom entrance method
External Dimension H×W×D :
1200×650×650mm
RACK :
19”
Inner height :
20U
Package :
Wooden Case
Description

IP55 20U Outdoor Communications Cabinet Single Wall With Thermal Insulation

1. Cabinet Structure:

the cabinet use sandwich structure, outer plate is 1.5mm galvanized steel, with 20mm insulation.

2. Features

2.1 Applicable environment conditions:

Environment temperature: -40°C ~ + 70°C;Environment humidity (RH): ≤95% (at + 40°C);Air pressure: 62kPa ~ 102kPa.

2.2 Material: galvanized steel.

2.3 Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.

3. Technical Parameters

Item Type Technical Parameter
Structure Dimension External Size H*W*D 1200*650*650mm
Layout One compartment, used for installing 19” equipment
Equipment Installation Method 19” rack
Door With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)
Material Galvanized steel, single wall with thermal insulation
Structure Assembled
Ingress Protection IP55
Temperature Control Cooling Air conditioner and fan
Lighting LED lamp 220VAC
Temperature Temperature Working Temperature: -40°C ~ +55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 × (1±5%) W/m2

4. Accessories List

No. Item Quantity Unit Specs

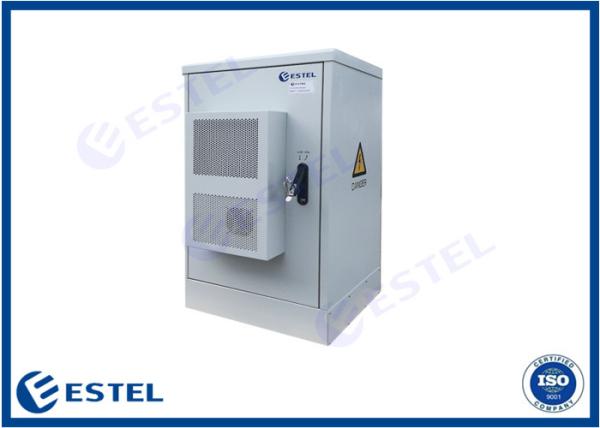

1 Outdoor Telecom Cabinet 1 Set

(1) External Dimension

H×W×D 1200× 650× 650mm.

(2) One compartment: including 20U 19” rack.

(3) With one front door, with three point lock for outdoor cabinet.

(4) Material: galvanized steel, single wall with thermal insulation.

(5) Floor installed.

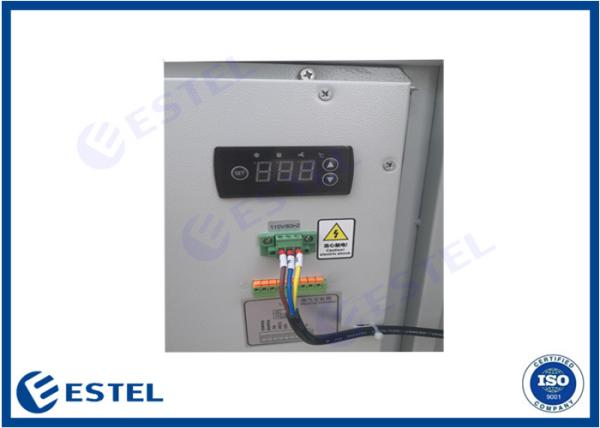

2 Air Conditioner 1 Set

Compressor type air conditioner

Cooling Capacity: 600W

Power Supply: 220VAC, 50Hz
3 Fan 2 Set 220VAC
4 LED Lamp Switch 1 PC For controlling LED lamp on/off
5 LED Lamp 1 PC 220VAC
6

Environment

Monitoring

System

 1 Set

1× environment monitoring unit,19”, 1U, 220VAC, SNMP communication

1× smoke sensor,

1× water sensor,

1× temperature & humidity sensor,

1× door sensor,
7 Package 1 Set Wooden Case

5. Cabinet Drawing

External Dimension H×W×D 1200×650×650mm(19”, 20U);

IP55 20U Outdoor Communications Cabinet Single Wall With Thermal Insulation

6. Cabinet Layout

IP55 20U Outdoor Communications Cabinet Single Wall With Thermal Insulation

7. Cable Entrance

All outside cables use bottom entrance method.

IP55 20U Outdoor Communications Cabinet Single Wall With Thermal Insulation

8. Grounding Protection

IP55 20U Outdoor Communications Cabinet Single Wall With Thermal Insulation

9. Delivery Time

Usually about 10-15 days. The exact lead time need to be confirmed according to the quantity of order.

FAQ

Q1: Are you a manufacturer?

A: Yes, we are a experienced manufacturer with our own design and production lines.

Q2. Do you have any MOQ limit for outdoor cabinet ?

A: Low MOQ, 1pc for sample checking is available.

Q3: Can I get sample order?

A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.

Q4: Are you able to customize items with design or logo?

A: Yes, OEM & ODM is available.

Q5: How do you ship the goods and how long it will take?

A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.

Q6: How long is the product warranty ?

A: We guarantee all our products 12 months warranty.
