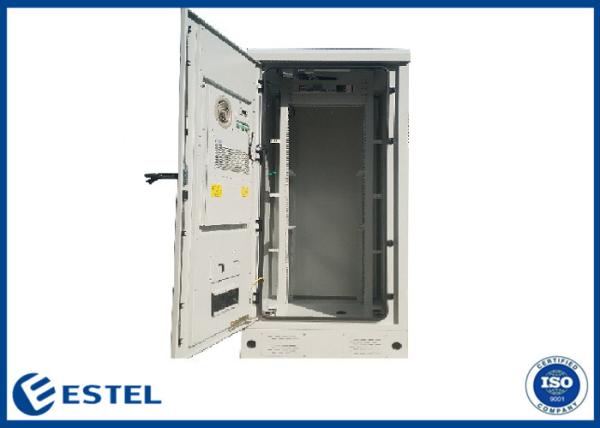

Anti Theft 900×900×2100mm TLC Outdoor Network Cabinet
Anti Theft 900×900×2100mm TLC Outdoor Network Cabinet
Anti Theft 900×900×2100mm TLC Outdoor Network Cabinet
Anti Theft 900×900×2100mm TLC Outdoor Network Cabinet
Specifications
Brand Name :
ESTEL
Model Number :
131090921050006
Certification :
ISO9001, CE, 3C, FCC, TLC, IP55
Place of Origin :
Shenzhen, China (Mainland)
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, L/C,D/A, Western Union, Paypal, etc
Supply Ability :
8,000 sets per month
Delivery Time :
15-20 working days
Packaging Details :
Wooden case
Dimension :
H×W×D 900×900×2100mm
Compartments :
1 Compartment
Door :
One front door
Protection Level :
IP55
Cooling System :
Air conditioner
Package :
Wooden Case
Description

42U Air Conditioning Outdoor Telecom Cabinet Includes 19 Inch Rack Anti-theft Cabinet Lock

1. Cabinet Description

This series outdoor cabinet is available in a variety of configurations, and they can be used in several different applications.It has 1 compartment and includes 19" rack for telecom equipment and rectifier and power distribution unit.It has one front door, with anti-theft three point lock,supporting padlock.The material of the cabinet is double wall galvanized steel with heat insulation.

2. Technical Parameters

Item Type Technical Parameter
Structure Dimension

External Dimension: W×D×H 900×900×2100mm

Layout

One compartment includes 19" rack

Door

One front door and one back door, with anti-theft three point lock for outdoor cabinet (support padlock)

Material

Galvanized steel

Heat Insulation

There are heat insulation between inner wall and outer wall.

Ingress Protection

IP55

Temperature Control

Cooling

Air conditioner

Lighting

LED Lamp

AC220V 50Hz ,6W

Power Distribution Unit

Power Distribution Unit A

Avalible

Temperature

Temperature

Working Temperature: -40°C ~ +55°C

Storage Temperature: -50°C ~ + 70°C

Transport Temperature: -50°C ~ +70°C

Humidity

Relative Humidity

5% ~ 100%

Pressure

Air Pressure

62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)

Radiation Intensity

Solar Radiation Intensity

1120 ×(1±5%)W/m2

3. Cabinet Instructions

3.1Appearance and Surface Treatment

Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.

3.2 Power Distribution Cabinet

There is one AC power distribution unit installed on the 19" rack inside of the cabinet.

Grade B Lightning Proof

AC Input: 63A/2P×1;

AC Output: 16A/1P×4;

DC Output: 16A/1P×4

Input Voltage: AC220V, 50Hz

3.3. Internal Racks

Anti Theft 900×900×2100mm TLC Outdoor Network Cabinet

3.4 Cabinet Inlets

There are several cable inlets at the bottom of the cabinet.

Anti Theft 900×900×2100mm TLC Outdoor Network Cabinet

4. Cabinet Pacakge

Wooden case with package
