ESTEL ISO9001 Cooling Capacity Outdoor Cabinet Air Conditioner
ESTEL ISO9001 Cooling Capacity Outdoor Cabinet Air Conditioner
ESTEL ISO9001 Cooling Capacity Outdoor Cabinet Air Conditioner
ESTEL ISO9001 Cooling Capacity Outdoor Cabinet Air Conditioner
ESTEL ISO9001 Cooling Capacity Outdoor Cabinet Air Conditioner
ESTEL ISO9001 Cooling Capacity Outdoor Cabinet Air Conditioner
Specifications
Brand Name :
ESTEL
Model Number :
E142011000
Certification :
ISO9001, CE, 3C, FCC, TLC, IP55
Place of Origin :
Shenzhen, China (Mainland)
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, L/C,D/A, Western Union, Paypal, etc
Supply Ability :
2,000 sets per month
Delivery Time :
15-20 working days
Packaging Details :
Wooden case
Power supply :
220VAC,50Hz
Cooling capacity(L35/L35) :
1000W
Weight :
24kg ,without pacakge
Protection level :
IP55
Refrigerant :
R134a
Package :
Wooden Case
Description

IP55 1000W Cooling Capacity Air Conditioner For Indoor Or Outdoor Cabinet

1. Product Instruction

  • This kiosk air conditioner is a kind of refrigeration product self-developed for cabinet.
  • This kiosk air conditioner is applicable in the place where the cabinet internal heat is very large, the internal electronic equipment is sensitive to the environment temperature and which should be isolated internally and externally completely.
  • This kiosk air conditioner has multiple functions, high reliability, and has the feature that it can start to work without complex debugging after powering.

2.Technical Parameters

Type Parameters

Body outline dimension (width*height*depth )

750*450*200mm

Outline dimension including

flange(width*height*depth )

784*484*200mm
Weight 24 kg
Mounting method Door mounted
Working temperature -40℃ to 55 ℃
Input voltage 220 VAC±15% ～/50Hz
Cooling capacity L35/L35 1000 W

Rated power consumption

(L35/L35)

 400W
Rated Refrigerating current (L35/L35) 1.8A
Heating capacity /
Airflow 320 m3/h
IP grade IP55
Refrigerant R134a
Noise 65 dB(A)

3. Dimensions

Outline dimension including flange(width*height*depth ): 784*484*200mm
Body outline dimension (width*height*depth ):750*450*200mm

ESTEL ISO9001 Cooling Capacity Outdoor Cabinet Air Conditioner

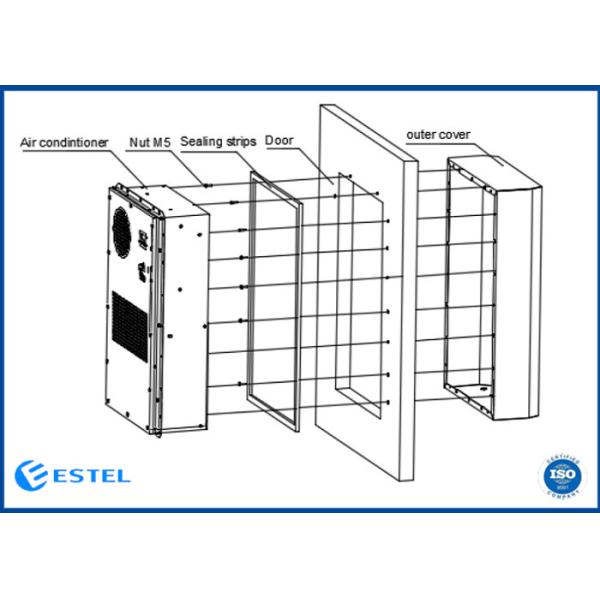

4. Installation Pictures

ESTEL ISO9001 Cooling Capacity Outdoor Cabinet Air Conditioner

5. Product Package

Using wooden case for packing the kiosk air conditioner.

ESTEL ISO9001 Cooling Capacity Outdoor Cabinet Air Conditioner

Product tags

refrigeration condensing unit

,

air cooled condensing unit

,

refrigeration condensing units
