Door Mounted 300W 220V Cabinet Air Cooler
Door Mounted 300W 220V Cabinet Air Cooler
Door Mounted 300W 220V Cabinet Air Cooler
Door Mounted 300W 220V Cabinet Air Cooler
Door Mounted 300W 220V Cabinet Air Cooler
Door Mounted 300W 220V Cabinet Air Cooler
Door Mounted 300W 220V Cabinet Air Cooler
Door Mounted 300W 220V Cabinet Air Cooler
Specifications
Brand Name :
ESTEL
Model Number :
E142010300
Certification :
CE, CCC
Place of Origin :
China
MOQ :
1 set
Price :
Depends on order quantity
Payment Terms :
L/C, T/T, Paypal
Supply Ability :
3000 sets per month
Delivery Time :
20 days
Packaging Details :
wooden cases
Application :
Cooling for outdoor equipment cabinet
Input Power :
220VAC± 15%~50Hz 220VAC/60Hz & 110VAC/60Hz available by customization
Language (Menu & User Manual) :
English
Cooling Capacity :
300W
Power Consumption :
235W
Mounting Method :
Door mounted
Dimensions :
550×320×173mm
Weight :
12.5KG
Description

Outdoor Equipment Cabinet Air Conditioning Cooling Capacity 300W

Voltage 220V Corrosion Resistant Housing

Model: E142010300

1. Specifications

Model E142010300
Input Power

220VAC± 15%~50Hz

220VAC/60Hz & 110VAC/60Hz available by customization
Control Panel Embedded LCD

Language

(Menu & User Manual)

 English
Cooling Capacity @L35/L35 300W
Power Consumption @L35/L35 235W
Refrigerant R134a
Noise Level 54dB(A)
Working Temperature Range -40 to 55ºC
Application Cooling for outdoor telecom enclosure
Mounting Method Door mounted
Dimensions (Height x Width x Depth) 550×320×173mm
Weight 12.5KG

2. Features & Benefits

• Energy saving: Unique external fan control function available for energy - saving as well as emergency working mode
• Corrosion protection: Powder coated sheet metal endures harsh environment
• AC powered compressor can be used in any country
• User friendly interface: LCD display with English menu makes convenient operation
• Environment friendly: Using R134a refrigerant and RoHS requirement compliance
• Dedicated design: Delay Start setting in case of big current, especially when multiple units start at one site
• Monitoring: Provide comprehensive alarm and status report through RS485 interface for remote control

• Low noise: The noise level of unit is reduced according to the heat load, silently operating in most time

• Easy maintenance: IP55 designed

3. Applications

Compact and highly efficient with their own integrated intelligent management systems, the air conditioners are ideal for both indoor and outdoor equipment enclosure climate control applications. The product range is available in both 220V-AC and 48V-DC with over 20 different models to choose from to ensure the appropriate product is matched to your needs.

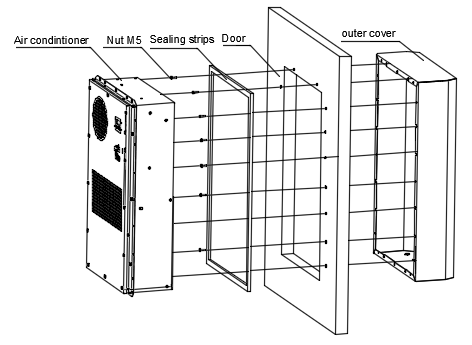

4. Installation

Door Mounted 300W 220V Cabinet Air Cooler

5. Dimension

Door Mounted 300W 220V Cabinet Air Cooler

Door Mounted 300W 220V Cabinet Air Cooler
