Anti Theft 9U 600mm Height Pole Mount Weatherproof Enclosure
Anti Theft 9U 600mm Height Pole Mount Weatherproof Enclosure
Anti Theft 9U 600mm Height Pole Mount Weatherproof Enclosure
Anti Theft 9U 600mm Height Pole Mount Weatherproof Enclosure
Anti Theft 9U 600mm Height Pole Mount Weatherproof Enclosure
Anti Theft 9U 600mm Height Pole Mount Weatherproof Enclosure
Anti Theft 9U 600mm Height Pole Mount Weatherproof Enclosure
Anti Theft 9U 600mm Height Pole Mount Weatherproof Enclosure
Anti Theft 9U 600mm Height Pole Mount Weatherproof Enclosure
Anti Theft 9U 600mm Height Pole Mount Weatherproof Enclosure
Anti Theft 9U 600mm Height Pole Mount Weatherproof Enclosure
Anti Theft 9U 600mm Height Pole Mount Weatherproof Enclosure
Specifications
Brand Name :
ESTEL
Model Number :
ET605860PS-EQ
Certification :
ISO9001
Place of Origin :
China
MOQ :
1PC
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1500 PCS per month
Delivery Time :
15-20 days
Packaging Details :
Wooden Case
19%22 rack :
9U
Installation mode :
Pole mount
Cooling :
Fan, Temperature Adjustable
Material :
Galvanized Steel
Structure :
Single Wall with heat insulation
External Size :
600mm×600mm×580mm(H×W×D)
Lock :
Anti-theft three-point Lock
Protection level :
IP55
Description

9U 19" Rack Outdoor IP55 Pole Mount Weatherproof Enclosure Galvanized Steel Small Box Theftproof Telecom Cabinet

Overview

This cabinet is mainly used in wireless communication base stations, including a new generation of 4G / 5G systems, communications / network integrated services, access / transmission switching station, emergency communications / transmission etc.

Features

● Short construction period, less land occupation, broader application and lower construction cost

● High integration, compact structure, easy installation and migration on later stage

● High-performance cooling solution

● Professional outdoor anti- corrosion powder coating, strong weather resistance

● High quality galvanized steel

● Anti-theft three-point outdoor cabinet lock, excellent keyhole protection device

● IP55 cabinet, waterproof, dustproof, single layer steel plate with high quality insulation

● Door stopper to hold door open at service

● Hidden hinge, inside screws, enhance the theftproof

Technical Parameters

Configuration Item Technical Parameter
Cabinet Body Model ET605860PS-EQ
Size External Size: 600mm×580mm×600mm(H×W×D)
Component The whole cabinet is composed of two parts: top cover and cabinet body. The installation method is pole mounted.
Material Galvanized steel, single wall with heat insulation
Structure

♦ Single wall, with insulation

♦ One front door, hidden zinc alloy hinge

♦ Outdoor special steel lock, lock cylinder assembled with protective cover, lock body assembled with three-point lock device

♦ Door stopper is installed on the inside of the cabinet door

♦ Grooved door with seal rubber strip, attached to the inner side of the door, waterproof and dustproof

♦ The air inlet and air outlet are all installed with a filter, and the filter can be cleaned and replaced.

♦ Include standard 19“ rack inside the cabinet, high universality. Special rack or electrical lining board inside the cabinet can be custom made.

♦ Equipped with cable manager

♦ Cable inlets at the bottom of cabinet
Surface Treatment Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification
Color Outdoor polyester light grey RAL 7035 coating or custom made
Ingress Protection IP55
Working Temperature -40°C～+75°C
Cooling Method Fan DC48V
Monitoring Smoke Sensor Monitor the smoke status inside the cabinet and provide real time alarm.
Door Sensor When unlawfully opened, provide real-time alarm.
Other Illumination LED light, 48VDC

Dimension Diagram

Anti Theft 9U 600mm Height Pole Mount Weatherproof Enclosure

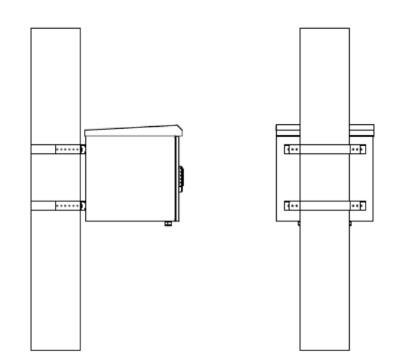

Pole Mount Diagram

Anti Theft 9U 600mm Height Pole Mount Weatherproof Enclosure

Product Pictures

Anti Theft 9U 600mm Height Pole Mount Weatherproof Enclosure
