1.5mm thickness IP55 Pole Mounted Electrical Enclosures
1.5mm thickness IP55 Pole Mounted Electrical Enclosures
1.5mm thickness IP55 Pole Mounted Electrical Enclosures
1.5mm thickness IP55 Pole Mounted Electrical Enclosures
1.5mm thickness IP55 Pole Mounted Electrical Enclosures
1.5mm thickness IP55 Pole Mounted Electrical Enclosures
Specifications
Brand Name :
ESTEL
Model Number :
ET402555
Certification :
ISO9001, CE,
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
5000 pcs/month
Delivery Time :
3-4 weeks
Packaging Details :
Wooden case
Protection level :
IP55
Material :
Galvanized Steel
Application :
Outdoor
Thickness :
1.2/1.5/2.0mm(Can be customized)
External size :
W×D×H 400×250×550mm
Structure :
Single wall
Installation :
Pole mount
Coating :
Outdoor powder coating
Description

Pole Mount Weatherproof Enclosure With Back Plate Custom Metal Outdoor Box IP55

1. Features

(1) The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.

(2) Cabinet cooling: direct ventilation.

(3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlet individually for power cable, signal cable and optical cable.

(4) IP level: IP55

(5) Coating: outdoor anti-corrosion powder coating

2. Application

The ET402555 outdoor cabinet is mainly used in wireless communication base station, can used for containing battery, switch, solar controller, modem, power supply, circuit board, breaker etc. It is pole mount.

3. Technical Parameters

Item Type Technical Parameter
Structure Dimension External Dimension: W×D×H 400×250×550mm
Layout 1 compartment
Equipment Installation Method Including one back plate,can be removable
Door With one front door and cabinet lock
Material Galvanized steel, single wall without insulation
Ingress Protection IP55
Temperature Control Cooling Direct ventilation
Temperature Temperature Working Temperature: -40°C ~ +55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2

4. Accessories List

No. Item Quantity Unit Specs
1 Outdoor Cabinet 1 PC

(1) External Dimension:

W×D×H 400×250×550mm

(2) One compartment, include one removable back plate.

(3) With one front door and cabinet lock

(4) Material: galvanized steel, single wall without insulation

(5) Including cable entry gland on the bottom

(6) IP grade : IP55

(7) Including vent on the two sides of cabinet

(8) Including battery fix frame

(9) Installation method: pole mount, including installation accessories
2 Package 1 PC Carton with wooden pallet

5. Cabinet Dimension

External Dimension: W×D×H 400×250×550mm

1.5mm thickness IP55 Pole Mounted Electrical Enclosures

6. Pole Mount Diagram

1.5mm thickness IP55 Pole Mounted Electrical Enclosures

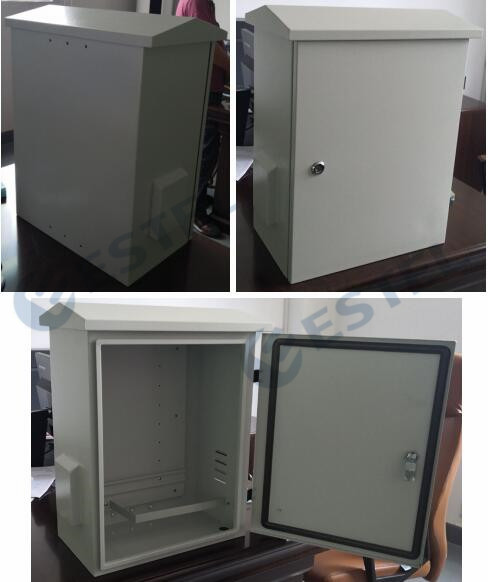

7. Cabinet Pictures

1.5mm thickness IP55 Pole Mounted Electrical Enclosures
