220V AC Outdoor Cabinet Air Conditioner 600W With IP55 Protection Level
220V AC Outdoor Cabinet Air Conditioner 600W With IP55 Protection Level
220V AC Outdoor Cabinet Air Conditioner 600W With IP55 Protection Level
220V AC Outdoor Cabinet Air Conditioner 600W With IP55 Protection Level
220V AC Outdoor Cabinet Air Conditioner 600W With IP55 Protection Level
220V AC Outdoor Cabinet Air Conditioner 600W With IP55 Protection Level
220V AC Outdoor Cabinet Air Conditioner 600W With IP55 Protection Level
220V AC Outdoor Cabinet Air Conditioner 600W With IP55 Protection Level
Specifications
Brand Name :
Envicool
Model Number :
EC06HDNC1B
Place of Origin :
China
MOQ :
1 Set
Price :
depends on order quantity
Payment Terms :
L/C, T/T, Paypal
Supply Ability :
1000 sets per month
Delivery Time :
20 days
Packaging Details :
Wooden case
Application :
Cooling for outdoor telecom cabinet
Installation :
Door Mounted
Cooling Capacity :
600W
Input Voltage :
220VAC
Input Frequency :
50Hz
Refrigerant :
R134a
Description

1. 220VAC Outdoor Cabinet Cooling System Air Conditioner 600W with IP55 Protection Level
Model: EC06HDNC1B

Envicool EC Series Air Conditioner


Our cooling range spans from 400W to 5000W.

We offer other series of products suitable for outdoor cabinets and base station usage, including DC air conditioners and HC combo air conditioners with heat pipes.

2. 220V AC 600W Outdoor Cabinet Cooling System Air Conditioner
The EC20HDNC1B is a compact and highly efficient AC-powered air conditioner designed specifically for applications with limited space. It offers uncompromised functionality and performance.

3. Data Sheet for Model: EC06HDNC1B

Parameter
Model
EC06HDNC1B
Dimensions, Weight & Mount
External Dimensions (Height x Width x Depth)
mm
545×315×170
External Dimensions (Height x Width x Depth) With Flange
mm
583×352×170
Weight
kg 16.5
Mounting Method
Door Mounted
Application
Outdoor
Environmental Protection & Performance
Working Temperature Range ºC -40 to +55

Noise Level

dB(A) 50
IP Protection Level
IP 55
Refrigerant
R134a
RoHS2 Compliant
Yes
Cooling/Heating Capacity
Cooling Capacity@L35/L35
W 600
Heating Capacity (Optional)
W 500
Power Consumption
Power Consumption@L35/L35
W 240
Current@L35/L35
A 1.15
Airflow
Internal Airflow
 m3/h 140
Power Supply
Power Supply Range
 VDC 220±15%,50/60
Rated operating voltage - Controller
 VDC 220, 50/60
Rated operating voltage - Cooling/Heating System
VDC 220, 50/60
Max. Current
A 2.0

4. 220VAC Outdoor Cabinet Cooling System Air Conditioner 600W Showing :

220V AC Outdoor Cabinet Air Conditioner 600W With IP55 Protection Level220V AC Outdoor Cabinet Air Conditioner 600W With IP55 Protection Level

5. Key Features:

  • 220VAC power input
  • 600W cooling capacity at L35/L35
  • Door-mounted for easy integration in outdoor cabinets
  • Standard configuration with heater
  • Wide working temperature range: -40ºC to +55ºC

6. Benefits of Model: EC06HDNC1B

  • Energy-saving
  • Minimum maintenance with a lifespan of over 10 years
  • Environmentally friendly with R134a refrigerant and RoHS compliance
  • IP55 and corrosion-proof
  • Dedicated design with delay start feature
  • RS485 for remote control

7. Applications:

  • Outdoor radio base stations/telecom cabinets
  • Outdoor power supply cabinets
  • Outdoor gen-set control cabinets
  • Outdoor solar-powered telecom cabinets
  • Outdoor wind power control cabinets

220V AC Outdoor Cabinet Air Conditioner 600W With IP55 Protection Level

220V AC Outdoor Cabinet Air Conditioner 600W With IP55 Protection Level

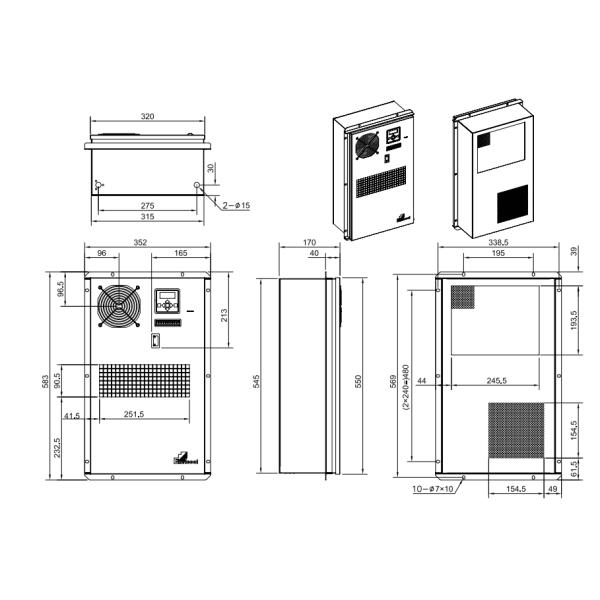

8. Dimensions:

220V AC Outdoor Cabinet Air Conditioner 600W With IP55 Protection Level

9. Packing and Shipping

Generally our products are pakced with plywood case to protection the cabinet very well, inner will use the foam for anti-scratch. Our products can be shipped all over the world

220V AC Outdoor Cabinet Air Conditioner 600W With IP55 Protection Level

10. Why Choose Us?

  • 15 years manufacturer selling
  • Wholesale/ Customize sample/OEM ODM are available
  • Competitive price
  • High product quality ,Strict quality control
  • Intime Delivery: 30-35 working days after receipt of the deposit
  • Best service !

11. Our factory and product

220V AC Outdoor Cabinet Air Conditioner 600W With IP55 Protection Level

.
