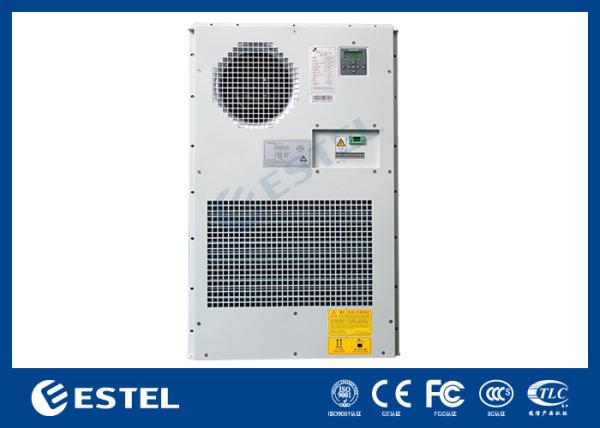

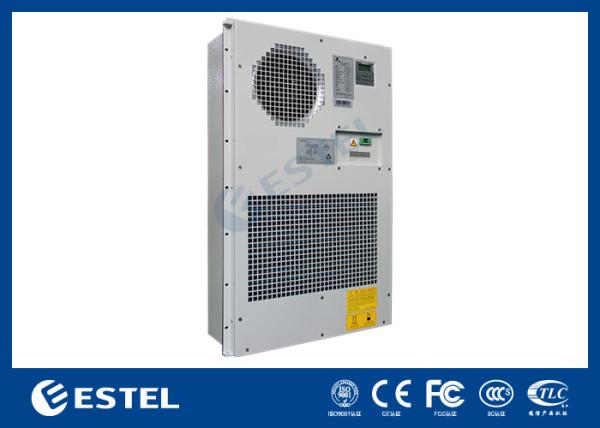

Door Mounted AC Power Supply 2000W Air Conditioner For Outdoor Cabinets
Door Mounted AC Power Supply 2000W Air Conditioner For Outdoor Cabinets
Door Mounted AC Power Supply 2000W Air Conditioner For Outdoor Cabinets
Door Mounted AC Power Supply 2000W Air Conditioner For Outdoor Cabinets
Door Mounted AC Power Supply 2000W Air Conditioner For Outdoor Cabinets
Door Mounted AC Power Supply 2000W Air Conditioner For Outdoor Cabinets
Specifications
Brand Name :
ESTEL
Model Number :
EC20HDNC1B
Certification :
ISO9001, CE, RoHs
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
2000 pcs/month
Delivery Time :
3 weeks
Packaging Details :
Wooden case
Protection Level :
IP55
Operating voltage :
220VAC
Application :
Outdoor Cabinet
Mounting Method :
Door mounted
Refrigerant :
R134a
Internal Airflow :
650m3/h
Description

Door Mounted AC Power Supply 2000W Air Conditioner For Outdoor Cabinets

Door Mounted AC Power Supply 2000W Air Conditioner Introduction

EC20HDNC1B is a compact, high efficient AC powered air conditioner.
The design is optimized for applications with limited space available, but
where functionality and performance still cannot be compromised.
  1. 220VAC power input
  2. 2000W cooling capacity@L35/L35
  3. Door mounted – easy integration in outdoor cabinets
  4. Standard configuration with heater
  5. Wide working temperature range: -40ºC to +55 ºC
Door Mounted AC Power Supply 2000W Air Conditioner Data sheet:

Model
Parameter		 EC20HDNC1B
Dimensions,Weight &Mount
External Dimensions (H x Wx D) mm 746×446×200
External Dimensions (H x Wx D)With Flange mm 783×483×200
Weight kg 35
Mounting Method Door Mounted
Application Outdoor
Environmental Protection &Performance
Working Temperature Range ℃ -40 to +55
Noise Level dB(A) 65
IP Protection Level IP 55
Refrigerant R134a
RoHS Compliant Yes
Cooling/Heating Capacity
Cooling Capacity@L35/L35 W 2000
Heating Capacity W 1000
Power Consumption
Power Consumption@L35/L35 W 850
Current@L35/L35 A 3.90
Airflow
Internal Airflow m³/h 650
Power Supply
Power Supply Range V,Hz 220±15%,50
Rated operating voltage -Controller V,Hz 220.50
Rated operating voltage -Cooling/Heating System V,Hz 22,050
Max.Current A 6.5

Air Conditioner Dimension:

Door Mounted AC Power Supply 2000W Air Conditioner For Outdoor Cabinets

Door Mounted AC Power Supply 2000W Air Conditioner Benefits

  • Energy saving
  • Lifetime >10 years – minimum maintenance
  • Environmental friendly – R134a and RoHS compliant
  • IP55 and corrosion proof
  • Dedicated design by delay start
  • RS485 for remote control

Door Mounted AC Power Supply 2000W Air Conditioner Application

  1. Outdoor Radio Base Stations / Telecom Cabinets
  2. Outdoor Power Supply Cabinets
  3. Outdoor Gen-set Control Cabinets
  4. Outdoor Solar Powered Telecom Cabinets
  5. Outdoor Wind Power Control Cabinets

Packing

Door Mounted AC Power Supply 2000W Air Conditioner For Outdoor Cabinets
